Real-time video RTSP

Author 谢周轩Updated 2025-10-14 15:14:07Doc ID 2351109 words · 1 min readView original ↗

1. Function Description

1.1 users can use the standard rtsp protocol to obtain video data.
1.2 example: use vlc to load rtsp video, etc.
1.3 player: VLC media player

2. Operating Instructions

2.1. Make sure that the device can preview the video normally on the platform;

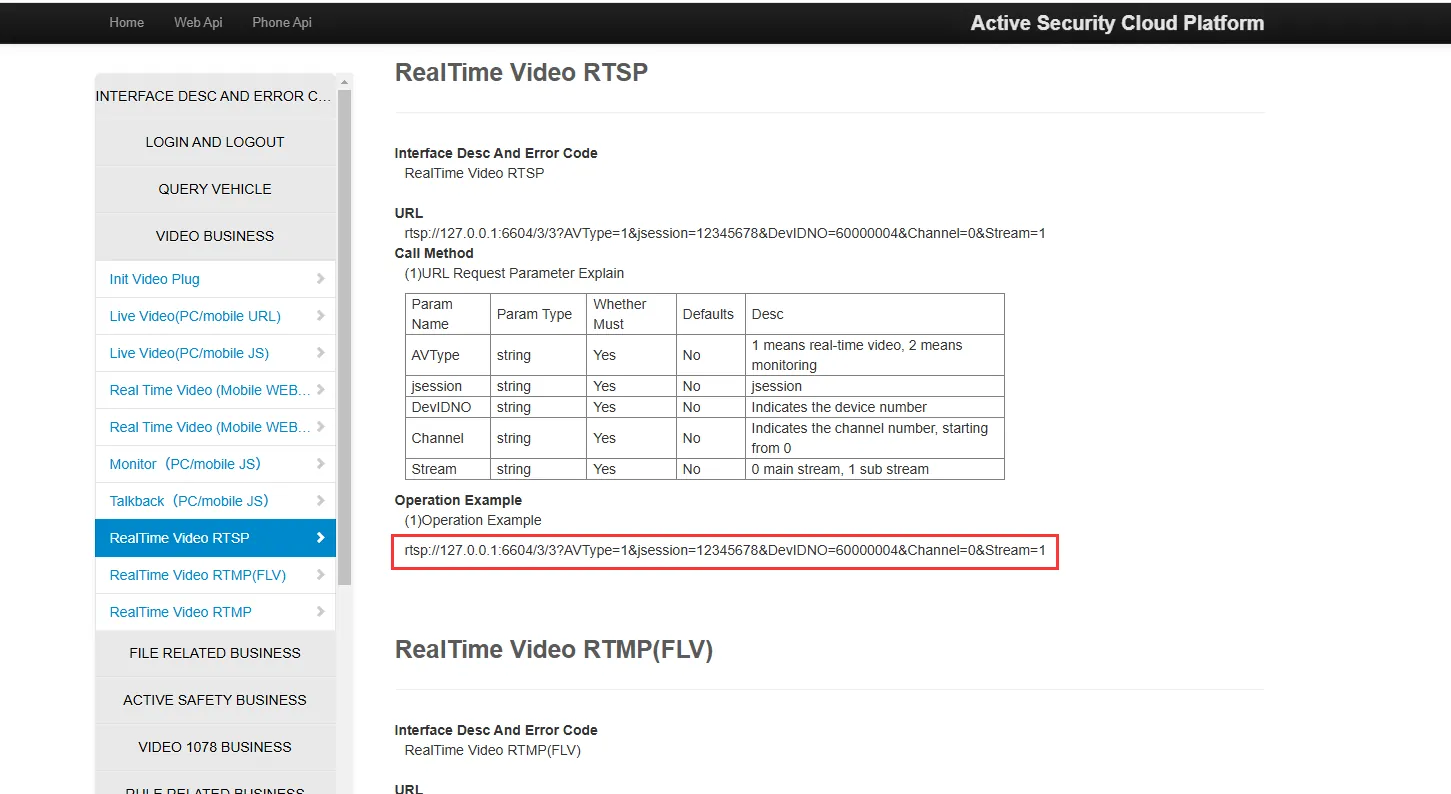

2.2. Use the API operation example to correctly set the jsession,DevIDNO,Channel and Stream parameters

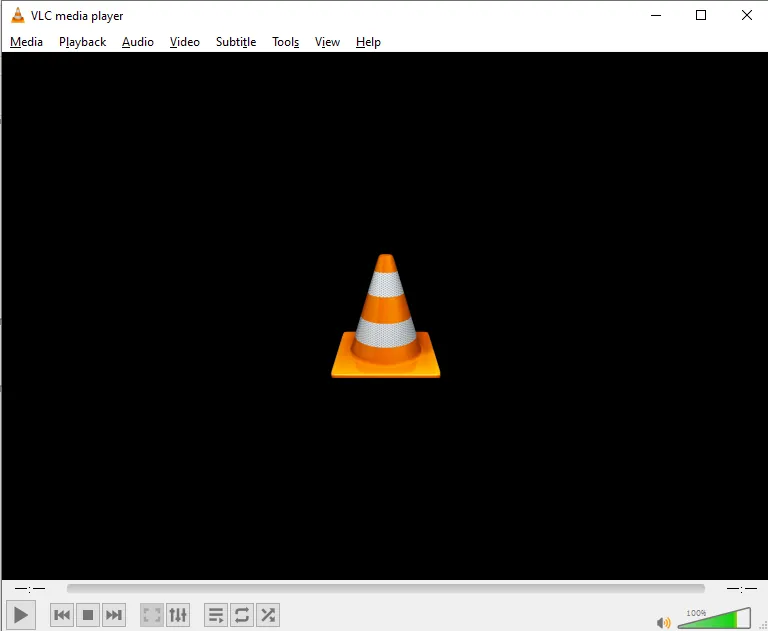

2.3, use VLC media player

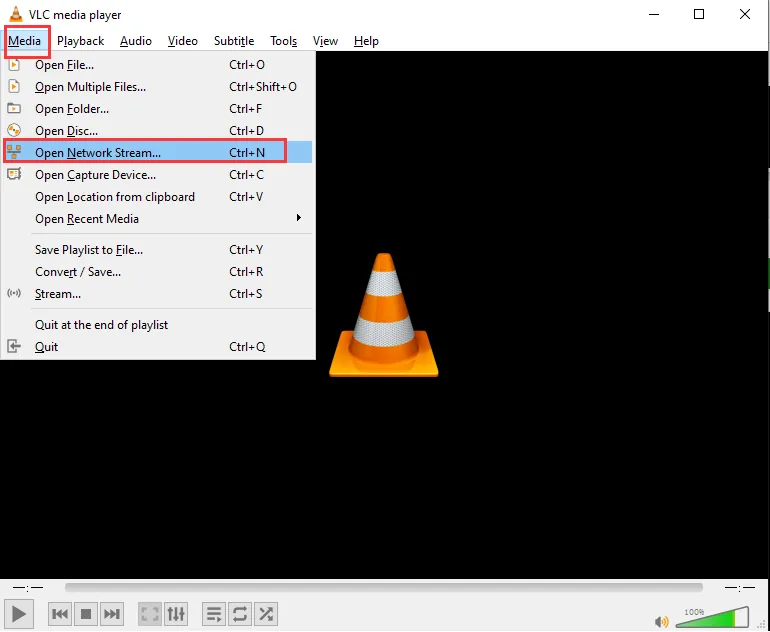

2.4. In the upper left corner of the VLC player, "Media- Open Network Streaming"

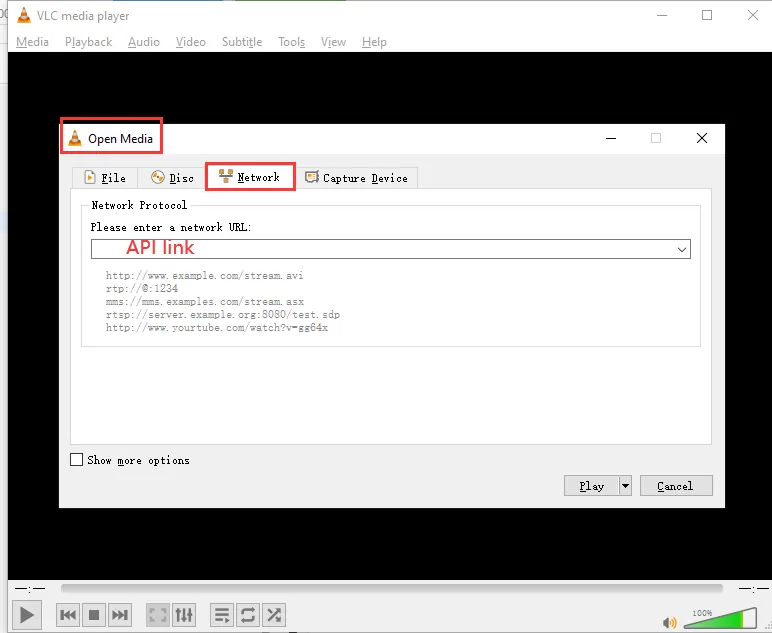

2.5. In the "Open Media" dialog box that opens, select "Network"

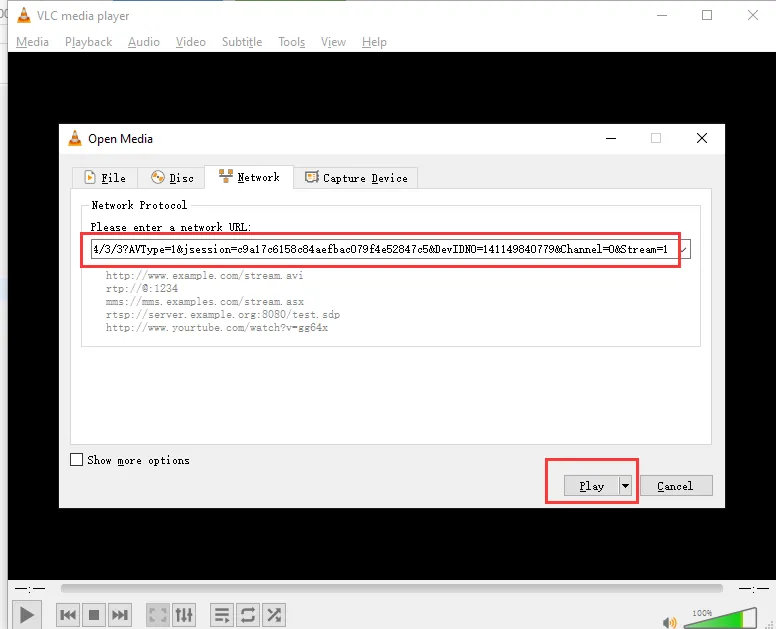

2.6. After the API full link is put in, click "Play"

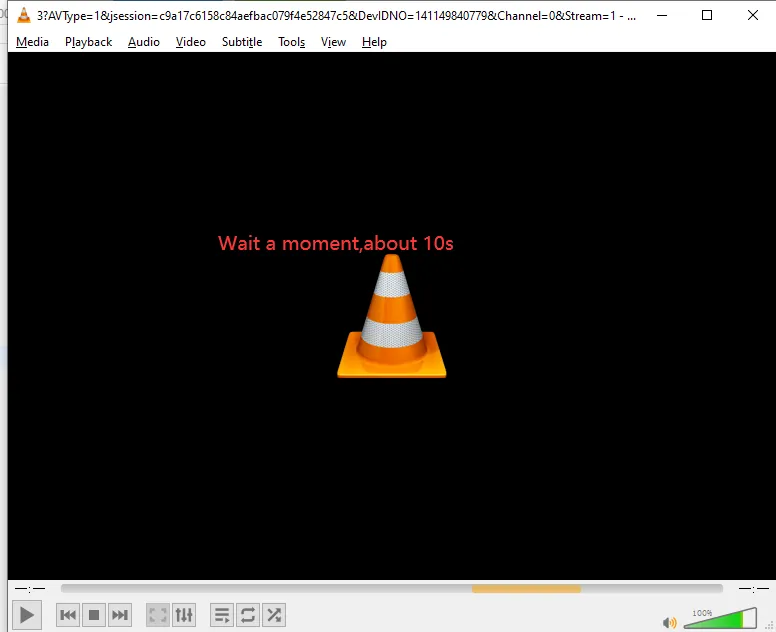

2.7, waiting to play

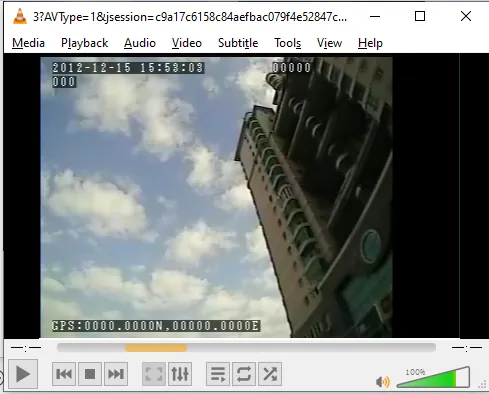

2.8, playback effect display
