1. function description

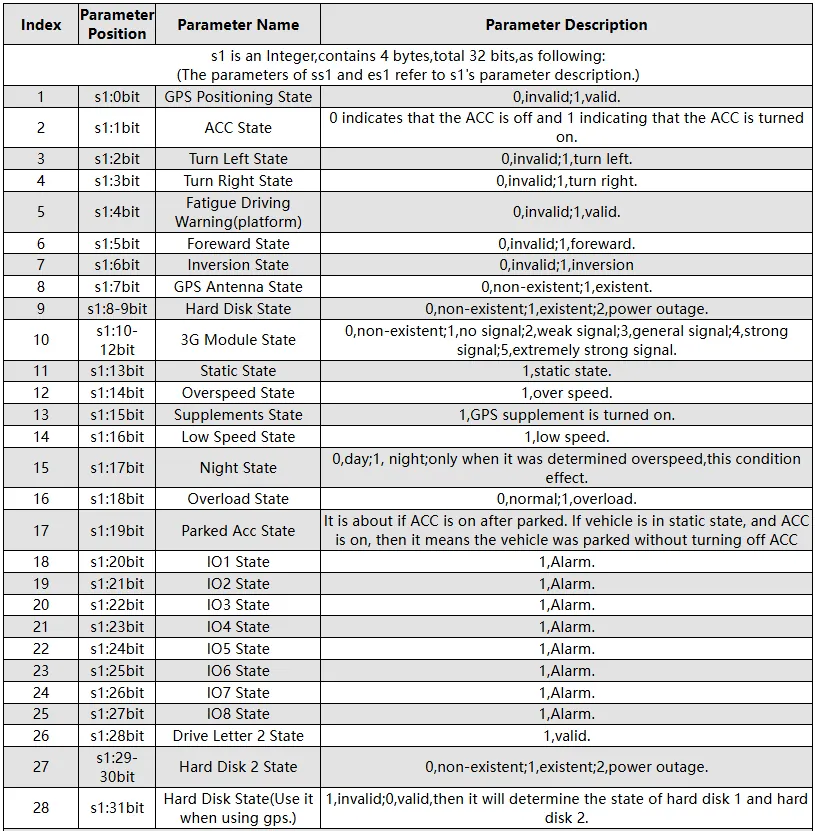

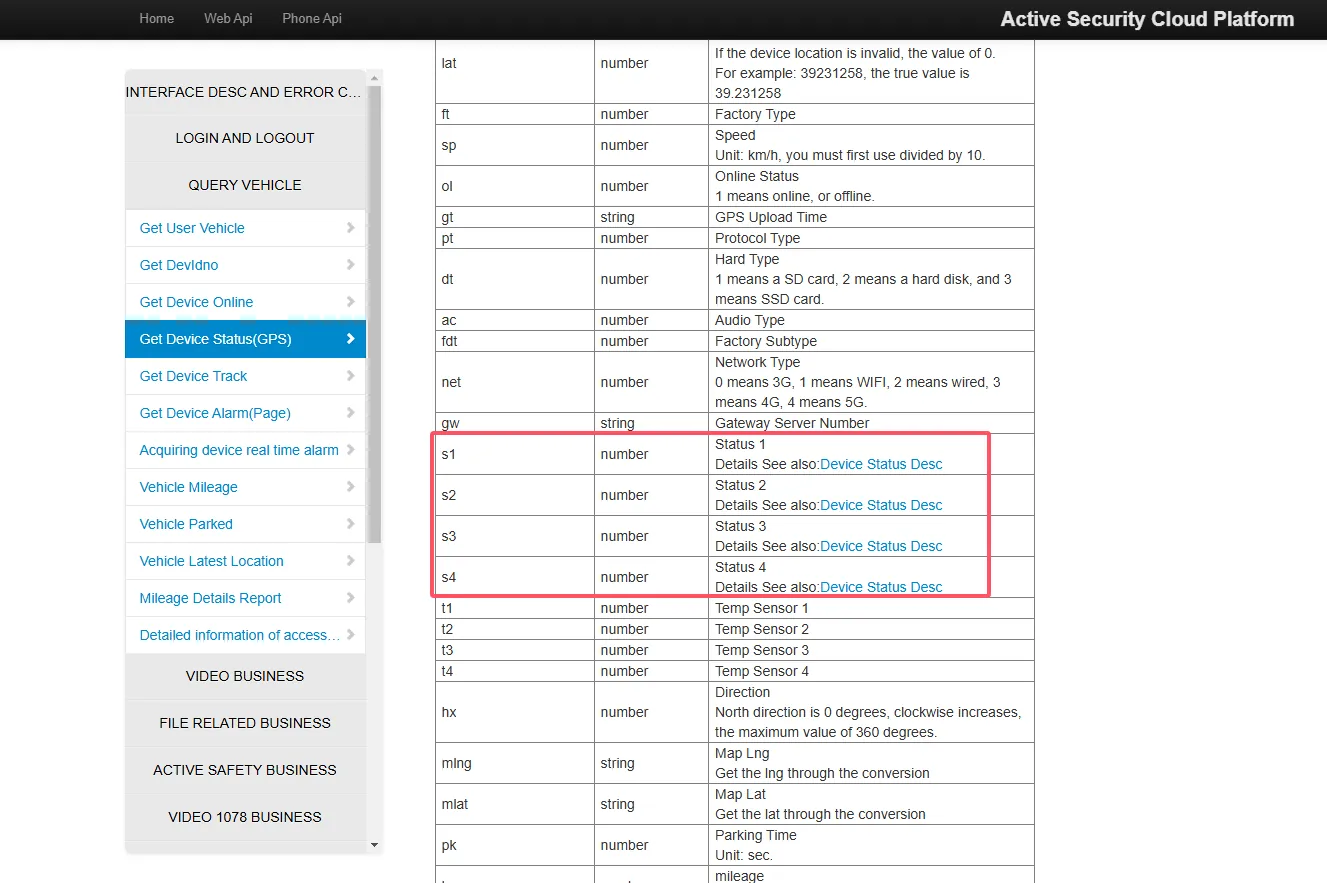

API- Obtain Device Status (GPS Status) Negative Return Value Parsing Description
2. analysis description
-
Badecimal conversion:
Negative decimal conversion to binary, the original code to get the inverse code, on the basis of the inverse code, plus 1 to get the complement, that is, the final result -

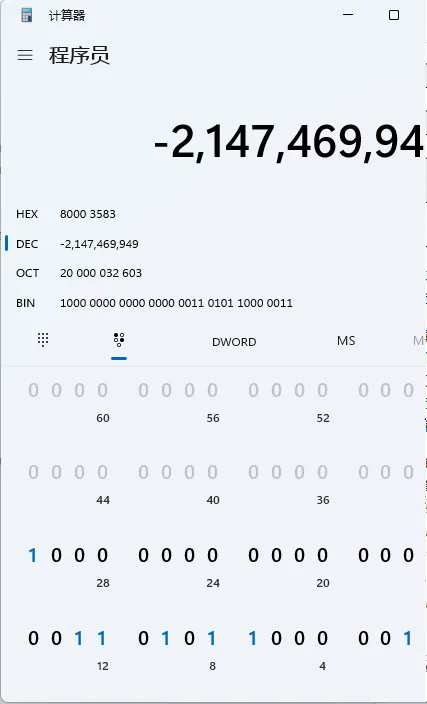

Conversion process:
Assume S1 returns:- 2147469949
Original code: 01111111111111111100101001111101
Inverse code: 10000000000000000011010110000010
complement: 10000000000000000011010110000011 **(final result) **
-

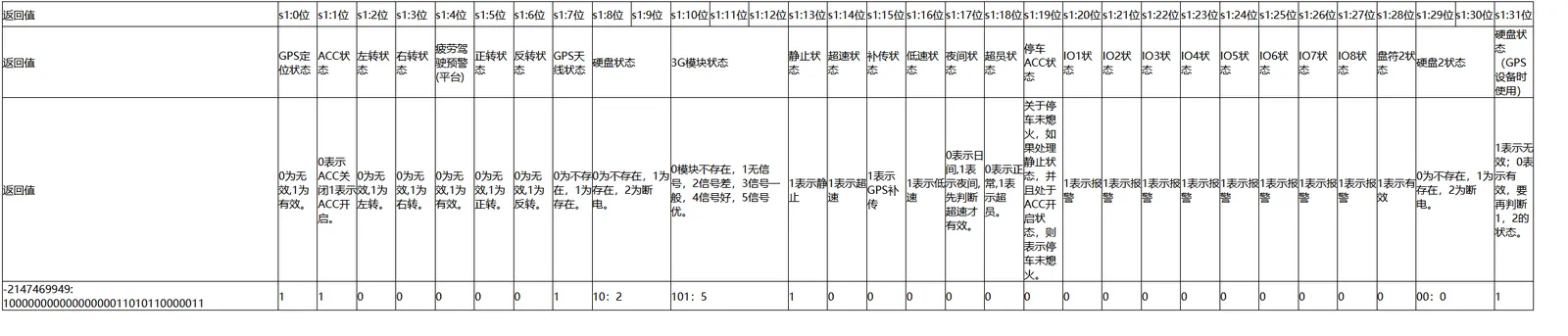

Parse example:
Bit 0 is calculated from the right
