1、 function description
Log example
2、 operating instructions

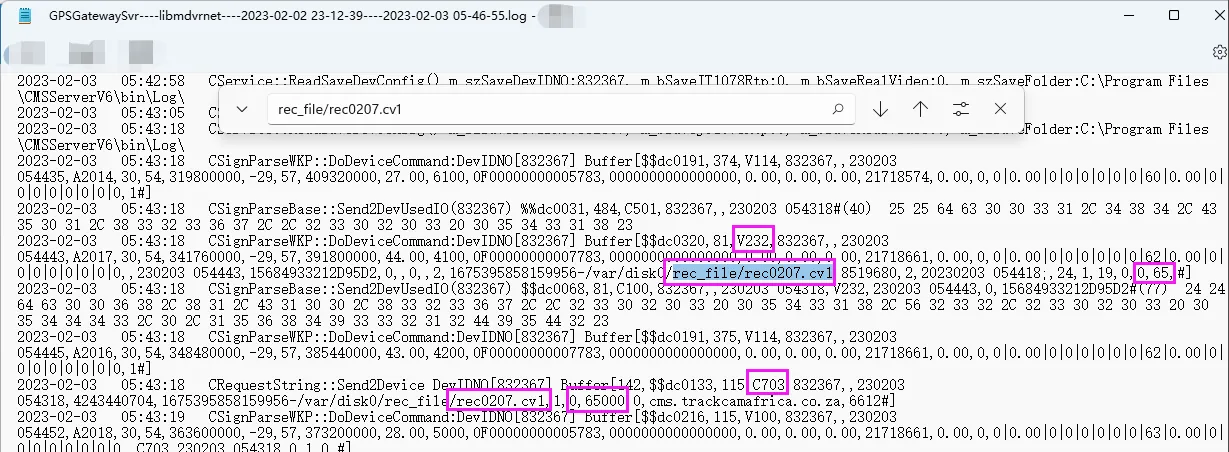

Device upload media files to the storage server process:
2.1 equipment actively reports V232 upload video recording request;
2023- 02- 03 05:43:18 CSignParseWKP::DoDeviceCommand:DevIDNO[832367] Buffer[$$dc0320,81,V232,832367,,230203 054443,A2017,30,54,341760000,- 29,57,391800000,44.00,4100,0F00000000007783,0000000000000000,0.00,0.00,0.00,21718661,0.00,0,0|0.00|0|0|0|0|0|0|62|0.00|0|0|0|0|0|0|0|0,,230203 054443,15684933212D95D2,0,,0,,2,1675395858159956- /var/disk0/rec_file/rec0207.cv1,8519680,2,20230203 054418;,24,1,19,0,0,65,#]
Parameter description:
The path of the video recording on the device: 1675395858159956- /var/disk0/rec_file/rec0207.cv1
Total length of video files: 8519680
Upload from the 0th second of the video file, upload 65 seconds: 0,65
The 2.2 gateway server sends C703 instruction to the device to upload the video;
2023- 02- 03 05:43:18 CRequestString::Send2Device DevIDNO[832367] Buffer[142,$$dc0133,115,C703,832367,,230203 054318,4243440704,1675395858159956- /var/disk0/rec_file/rec0207.cv1,1,0,65000,0,cms.trackcamafrica.co.za,6612#]
Parameter description:
Storage server address and port: cms.trackcamafrica.co.za,6612
