1. Function description
For the Ministry of 1078 equipment, the protocol definition is to upload video files to the server through FTP, and then download them from the server to the local computer.
Make sure that the FTP server can be accessed normally and that the ports are sufficient.
2. operating instructions
2.1 to create an FTP task

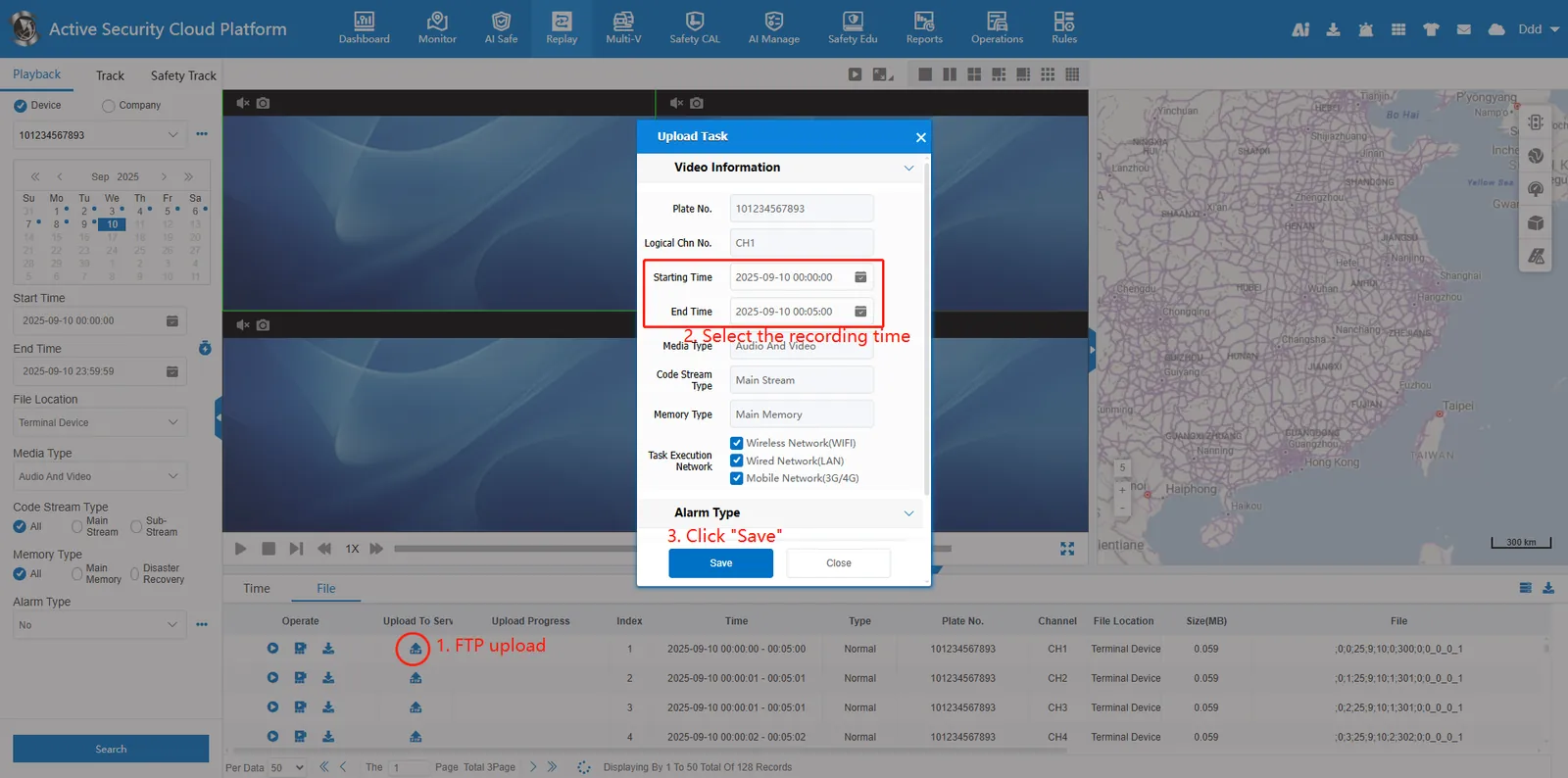

After searching for terminal equipment video, click on the file list
upload to the server button, pop up the task window, select the time range (if it is a client, manually check 4G network), and click "save" to create FTP upload task.
2.2 control FTP tasks

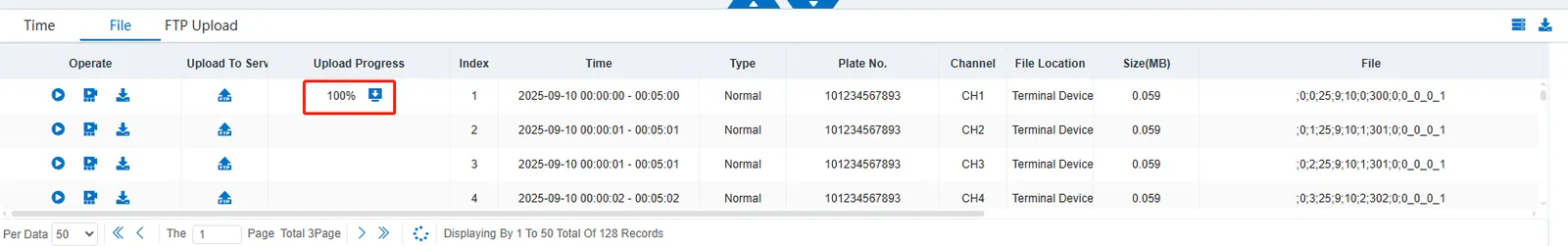

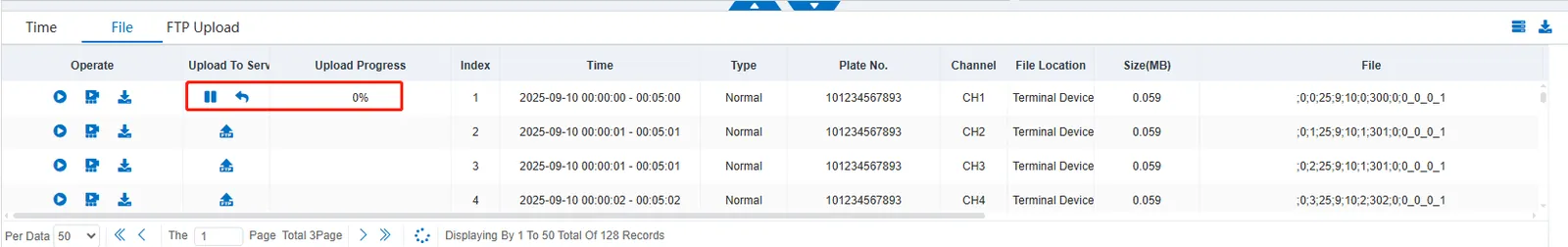

After the task is successfully created, the file upload progress can be displayed in the file list. The upload button can be changed to "Pause/Continue" and "Cancel" buttons, and the FTP task can be paused/resumed or canceled.

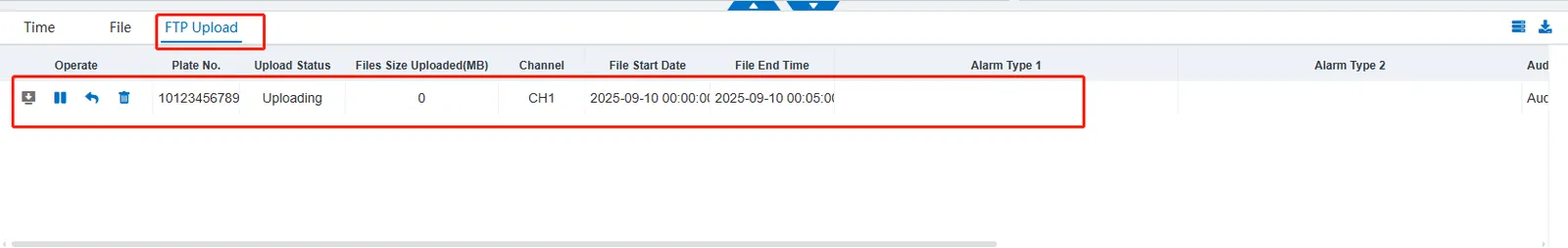

Alternatively, view and manipulate the FTP task details in the FTP Upload tab.
2.3 video file download

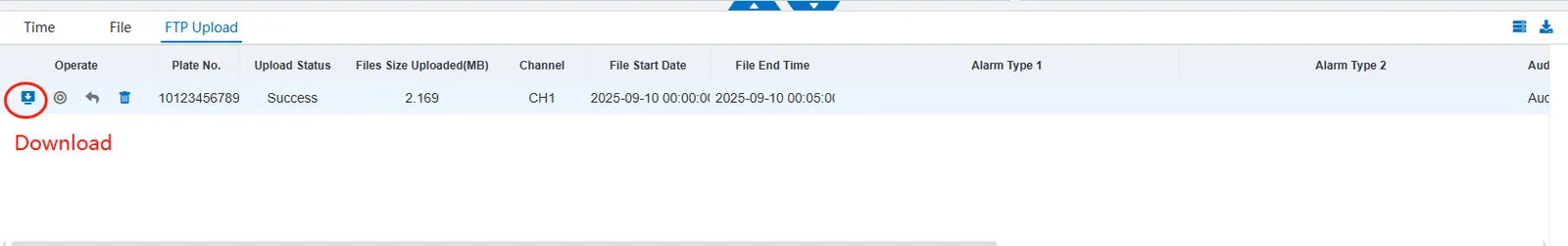

After FTP uploads the video to the server, click
download button, the browser creates a download task and downloads the video file of the server to the user's local computer.
Or operate the download in the "FTP Upload" tab.
2.4 to view historical FTP download tasks

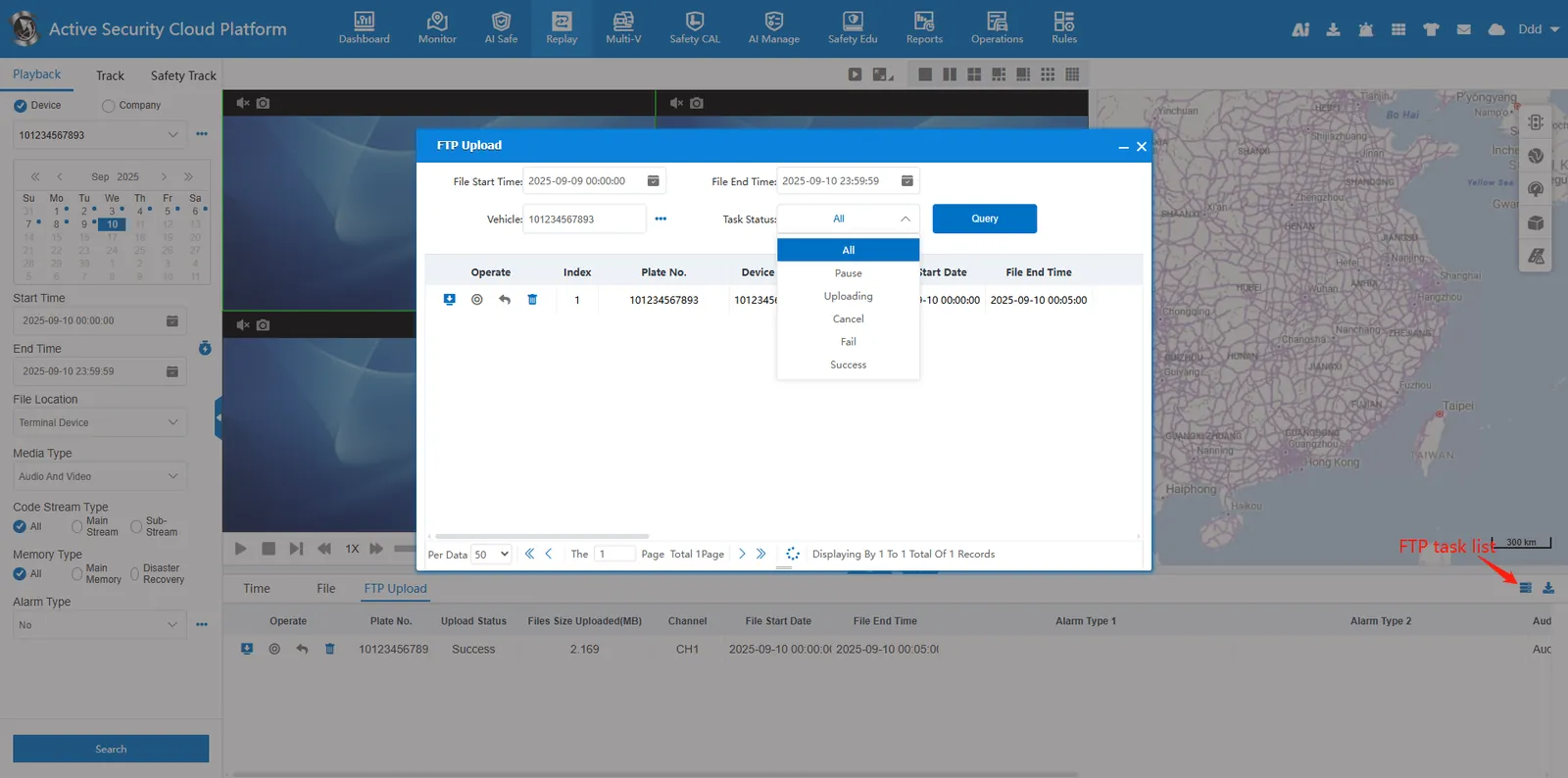

The FTP Upload list is displayed in the lower- right corner of the page, where you can query the status of FTP tasks and control FTP upload to pause/resume, cancel, or delete tasks.
FTP tasks that have been successfully uploaded can be directly downloaded to the local.
Note: 1078 equipment FTP upload video interaction process
A, user operation to add FTP task, the server sends ** 0x9206 file upload instruction ** to the terminal equipment.
B after receiving the 0x 9206 instruction, the terminal equipment will reply ** 0x0001 terminal general response ** and start uploading files.
C, after the file upload is completed, the terminal reports 0x1206 file upload completion notification to the platform.
