1. Function description
Active security alarm attachment upload process
2, operating instructions

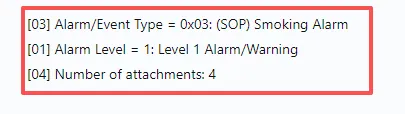

2.1 and equipment report active safety alarm information
The active safety alarm data generated by the vehicle is reported to the platform, and the number of attachments for the alarm information is transmitted.
Example message:
7E 02 00 40 5C 01 00 00 00 00 00 13 87 77 77 77 02 00 00 00 00 00 00 40 00 03 01 5E D4 89 06 C6 EB 03 00 00 00 00 00 00 25 06 11 16 25 35 EF 0D 00 00 00 00 00 00 00 00 00 00 00 00 09 65 2F 00 00 00 00 01 03 01 01 20 01 01 01 00 00 25 01 57 8E D2 06 CA 3B F2 25 06 11 16 25 35 01 00 48 42 31 31 31 31 34 25 06 11 16 25 35 00 04 00 00 7E
2.2, the platform automatically issues the instruction to obtain attachments
After receiving the alarm information with attachments reported by the vehicle, the platform will automatically send a 9208 to the equipment and send a request for obtaining attachments.
Example message:
7E 92 08 40 51 01 00 00 00 00 00 13 87 77 77 77 3D 55 0C 31 39 32 2E 31 36 38 2E 31 2E 39 32 19 D4 19 D4 48 42 31 31 31 31 34 25 09 28 11 49 35 00 03 00 30 30 30 30 31 33 38 37 37 37 37 37 37 37 32 35 30 39 32 38 31 31 34 39 33 35 30 30 30 33 30 30 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 7E

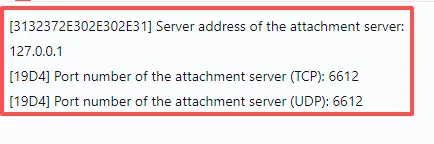

** The ip and port of the attachment will be transmitted to the device, and the port needs to be able to telnet **
2.3, equipment response to obtain attachment instructions
The device responds to the attachment request command after receiving it
Example message:
7E 00 01 40 05 01 00 00 00 00 13 87 77 77 77 00 02 00 02 92 08 00 00 7E

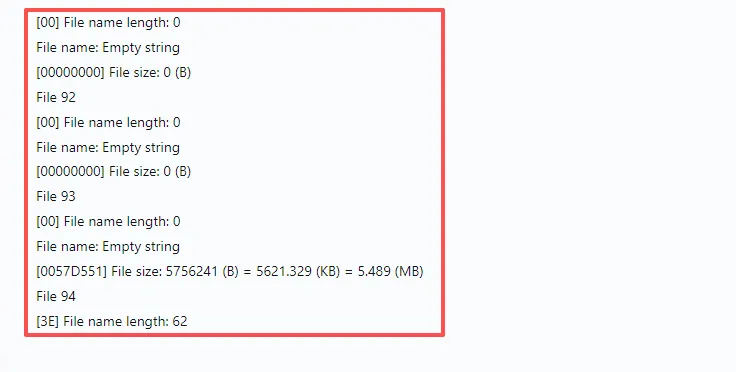

2.4, equipment upload attachment instruction
The device will upload the attachment after responding to the attachment upload command
Example message:
7E 12 10 41 11 01 00 00 00 00 00 13 87 77 77 12 10 59 4C 31 30 30 30 30 48 42 31 31 31 34 25 06 11 16 25 35 00 04 00 30 30 30 30 31 33 38 37 37 37 37 32 35 36 31 31 36 32 35 33 35 30 30 30 30 34 30 30 00 04 31 30 30 5F 30 5F 30 5F 30 5F 35 39 31 33 35 30 5F 30 30 30 30 31 33 38 37 37 37 37 37 32 35 30 36 31 31 36 32 35 33 35 30 30 30 30 34 30 30 2E 6A 70 67 00 02 5A 71 31 30 5F 30 5F 30 5F 30 5F 30 39 31 33 35 31 5F 30 30 30 31 33 38 37 37 37 37 37 37 37 32 35 30 36 31 31 31 36 32 35 33 35 35 30 30 30 30 34 30 30 2E 6D 70 34 00 0F 12 F8 31 30 5F 30 5F 30 5F 35 39 31 33 35 32 5F 30 30 30 30 31 33 38 37 37 37 37 37 37 37 30 36 31 31 31 36 32 35 33 35 30 30 30 30 30 34 30 30 30 2E 62 69 6E 00 00 00 00 00 00 00 00 00 31 30 30 30 30 30 30 5F 30 5F 30 5F 35 39 31 33 35 33 5F 30 30 30 31 33 38 37 37 37 37 37 37 37 32 35 30 36 31 31 36 32 35 33 35 30 30 30 34 30 30 2E 6A 70 67 00 02 5A 71 00 7E
