1. Function Description

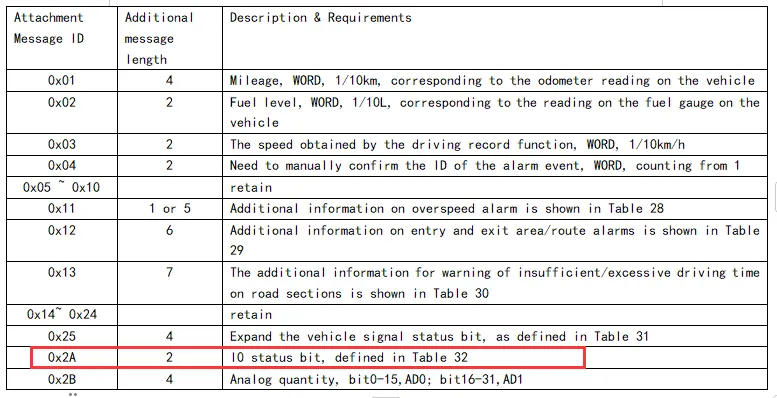

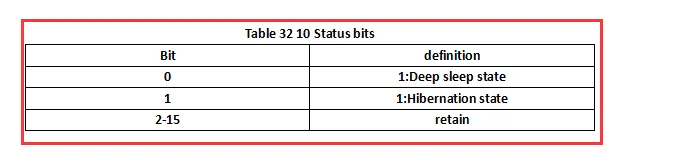

1.1 use the IO status in the 808 protocol 0200 position report of the part target, expand the 8th to 15th bits, and correspond to IO1 to IO8 of ttx platform
Bits 8 to 15, corresponding to IO1 to IO8 of ttx platform
2. Operating Instructions
When 2.1 the IO user- defined name, add an identification, which can be distinguished as [normal status display] or [alarm status display]]
- Named [N;xxx] The first two characters, N indicates the normal state, then this IO state will be displayed in the state
- Named as [xxx], indicating the alarm status, this status will be displayed in the alarm
3. Notes

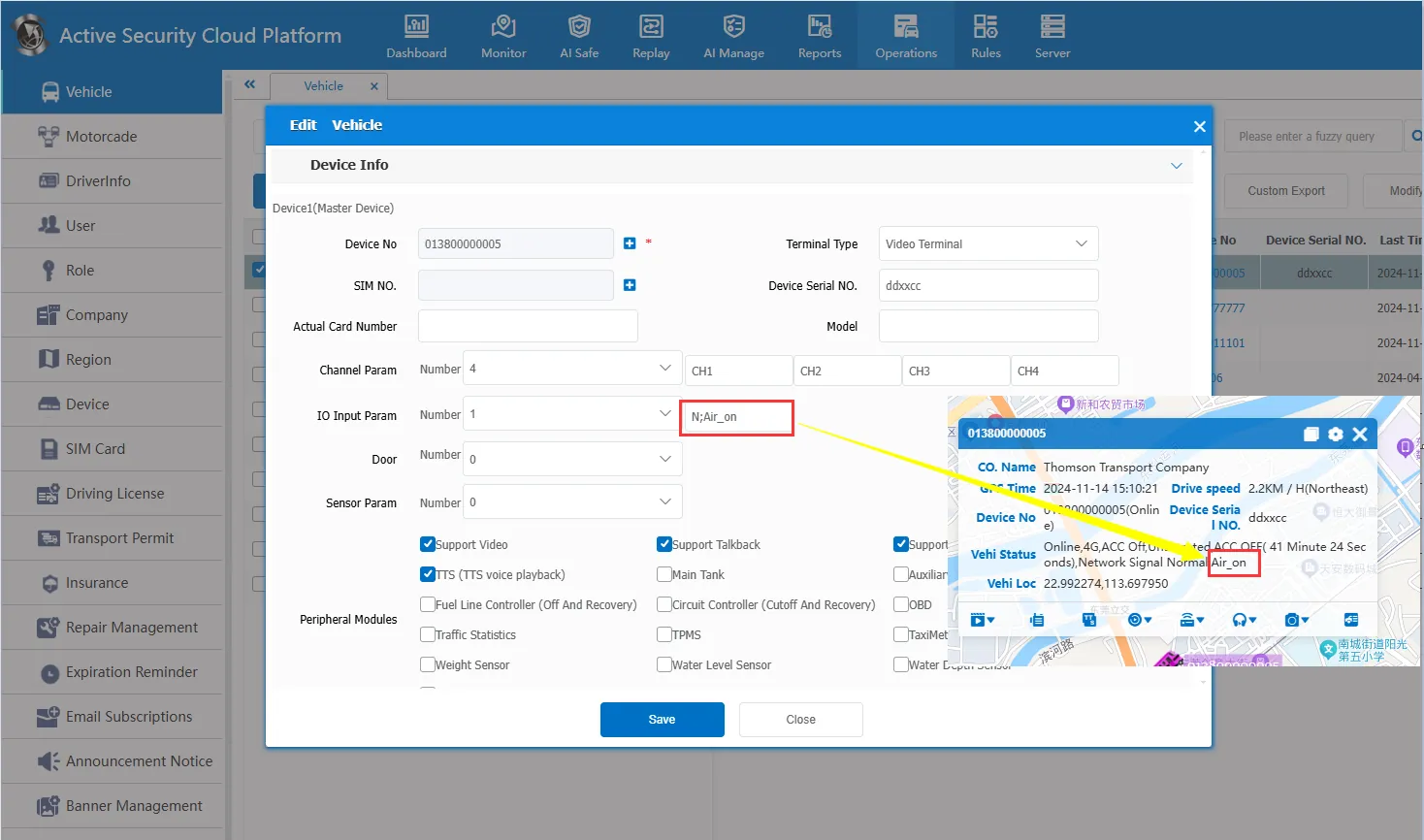

3.1 example: IO name is defined as --> n; The air conditioner is on, and the display is as follows

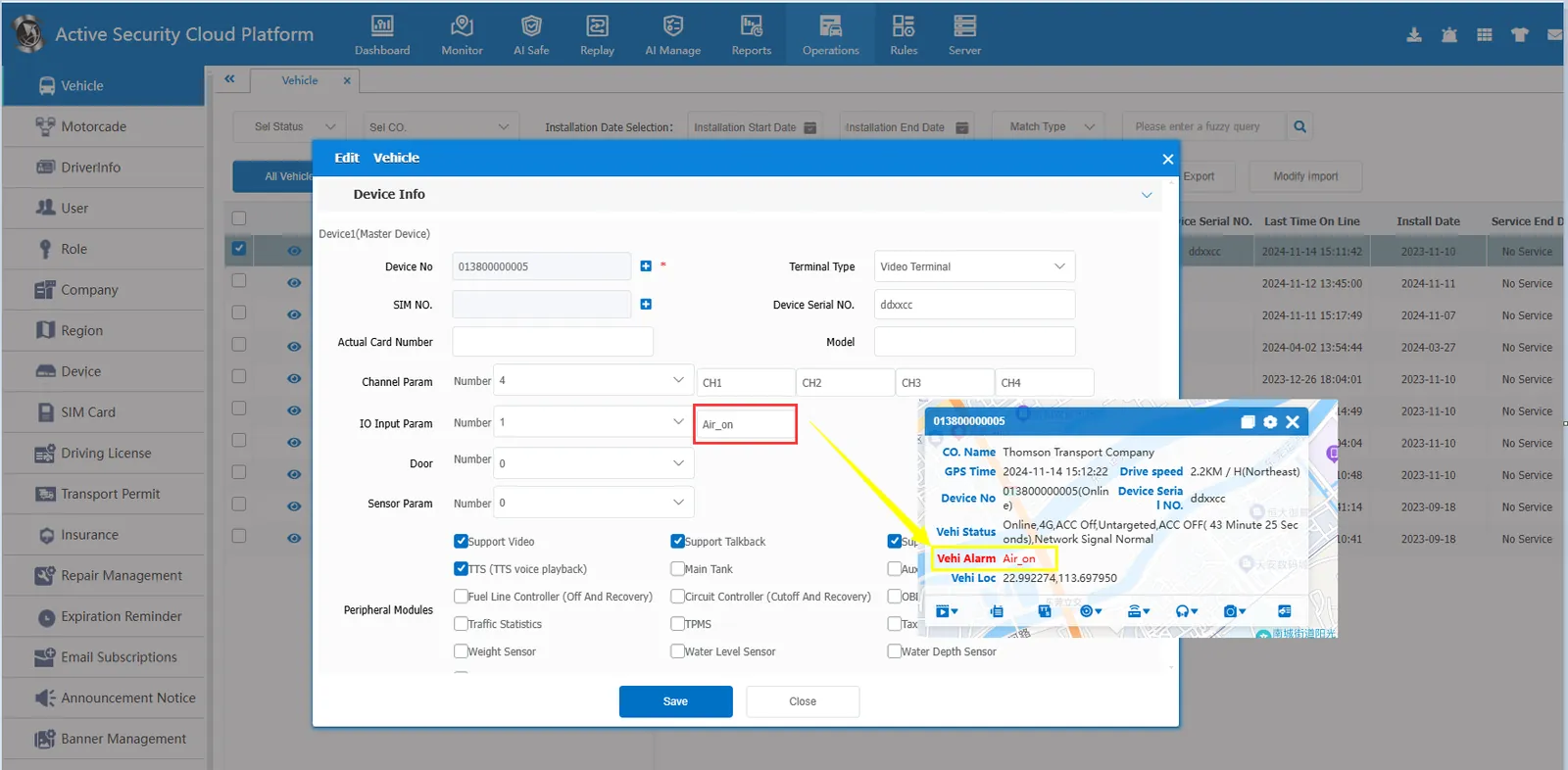

3.2 example: IO name is defined as --> air conditioner on, it will be displayed as follows
