1, function description
Based on the standard of Sichuan standard group, user- defined extended collision, rollover, start, stop and IO active safety alarm are used.
2. Docking instructions

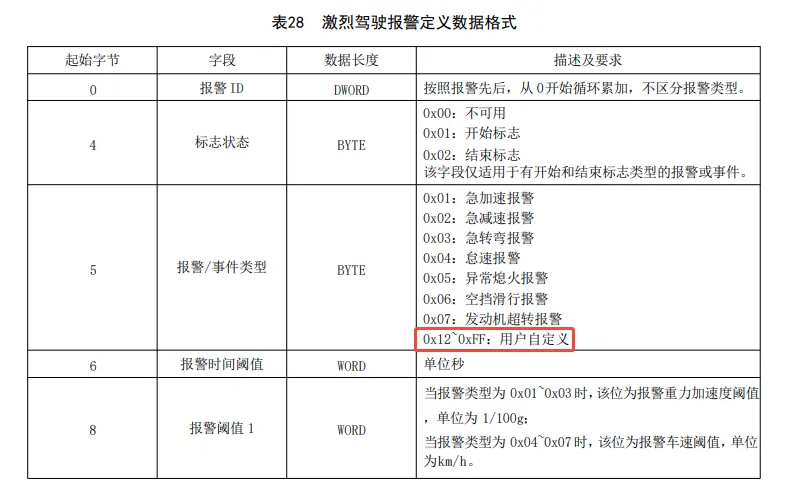

2.1 alarm reporting
Intense driving 0x 70 based expansion:
0x 16: Collision Warning
0x 17: Rollover Alarm
0x 18: Startup
0x 19: Stop
0x1A:SOS active alarm
0x1B:(Reserved)
0x1C:IO_1 Alarm
0x1D:IO_2 Alarm
0x1E:IO_3 Alarm
0x1F:IO_4 Alarm
0x 20:IO_5 Alarm
0x 21:IO_6 Alarm
0x 22:IO_7 alarm
0x 23:IO_8 Alarm
0x 24:IO_9 alarm
0x 25:IO_10 Alarm
0x 26:IO_11 Alarm
0x 27:IO_12 Alarm

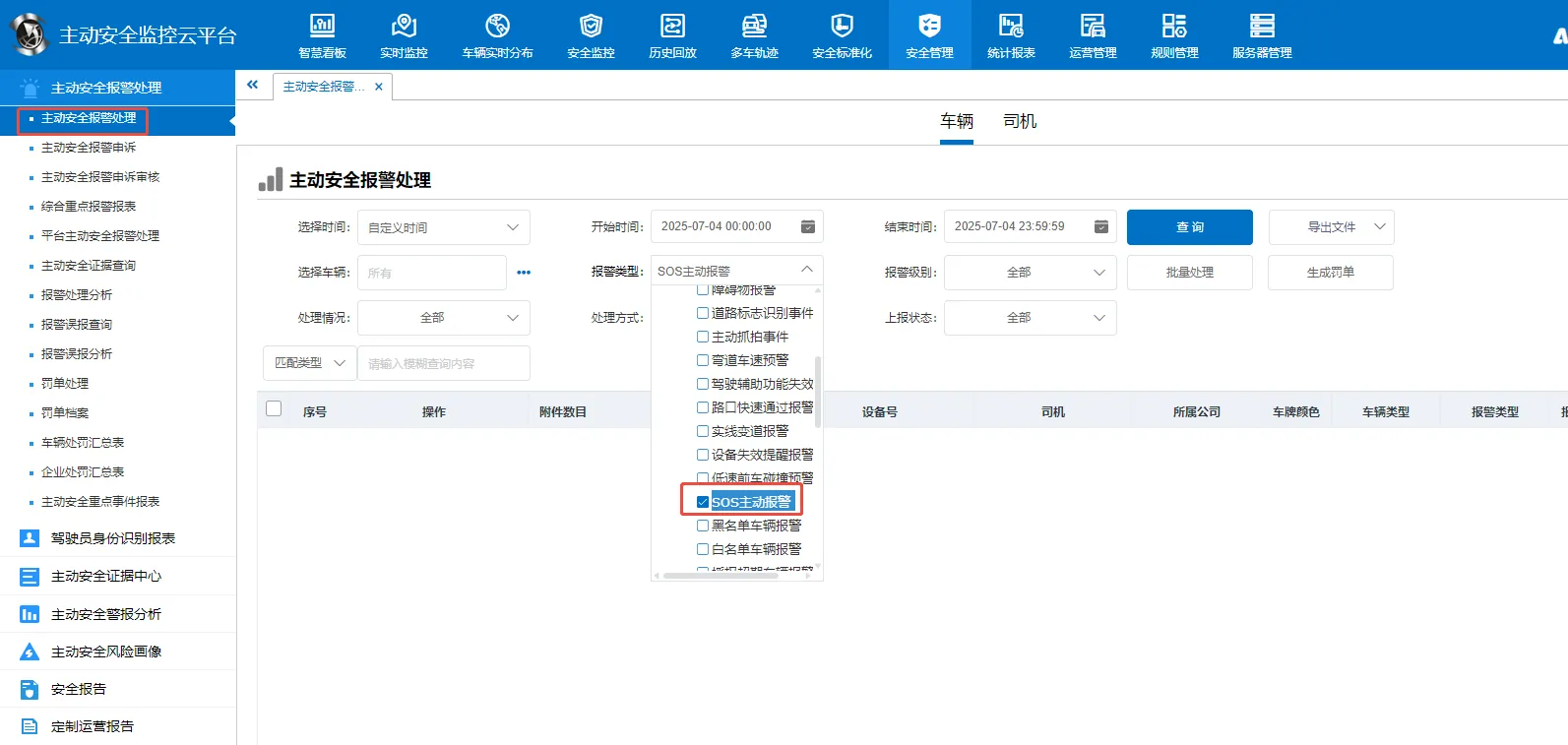

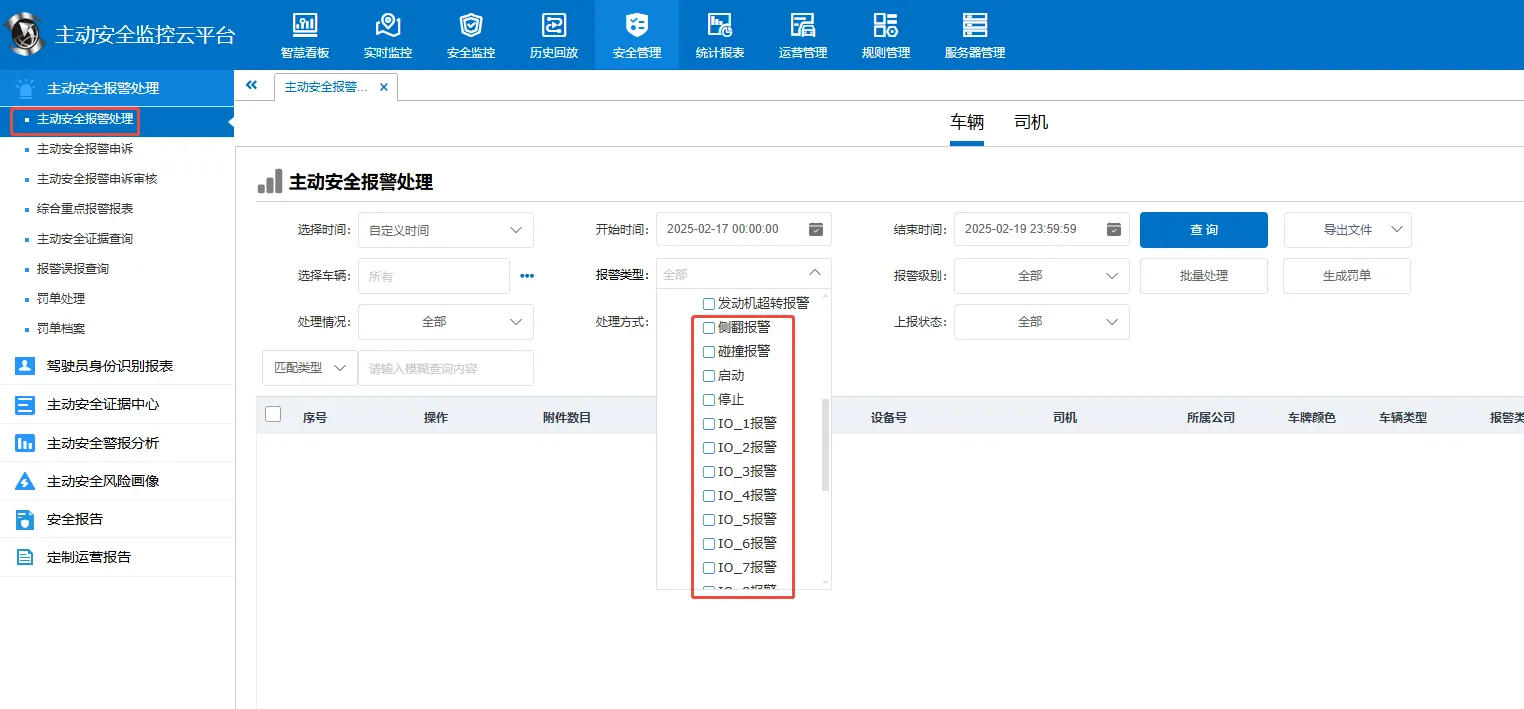

Alarm query:

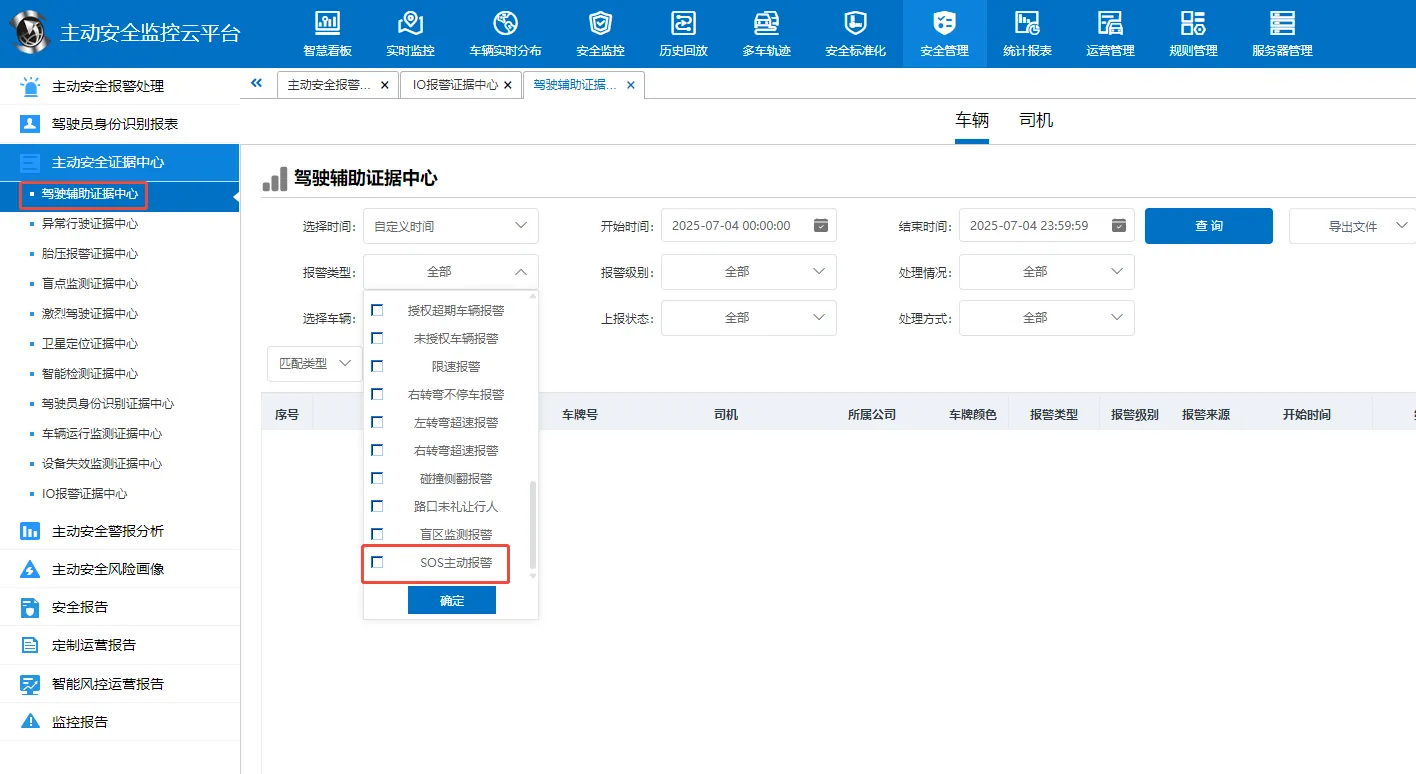

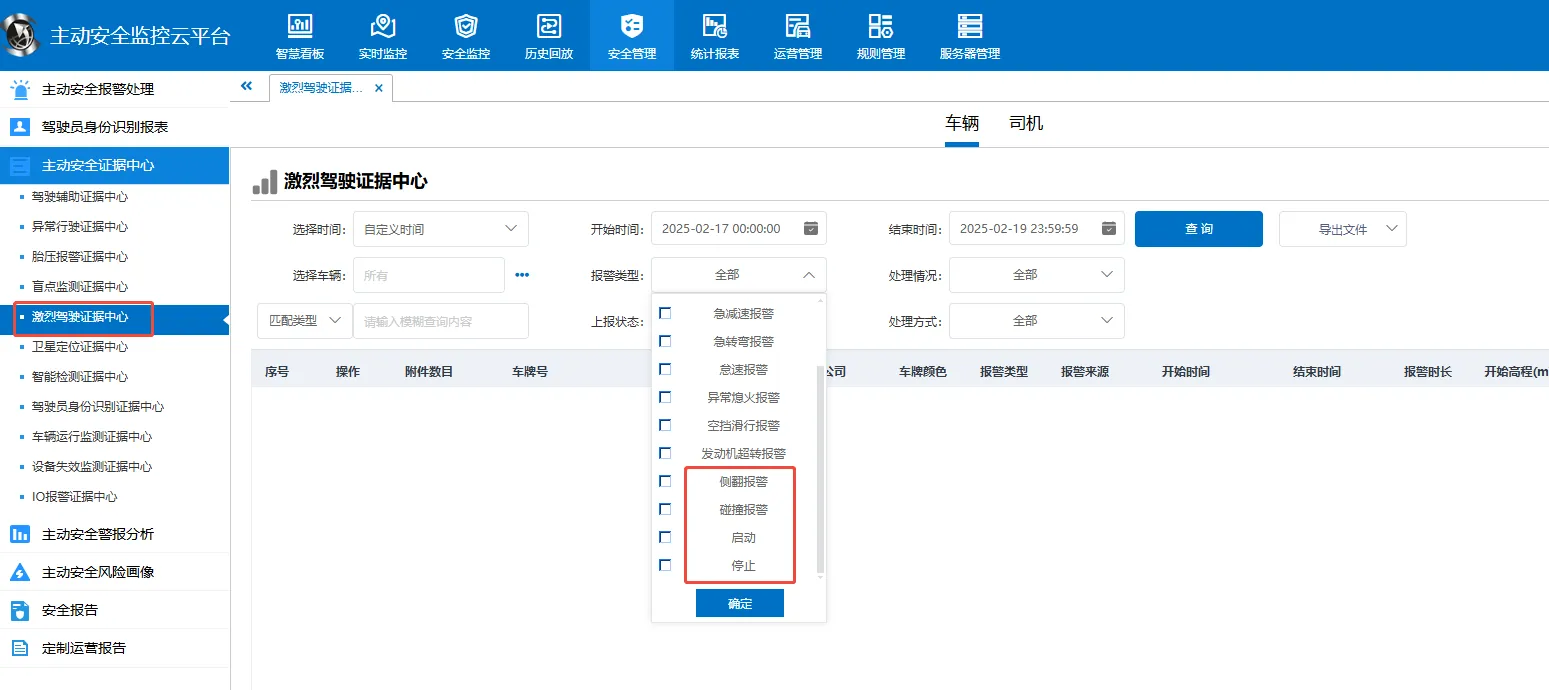

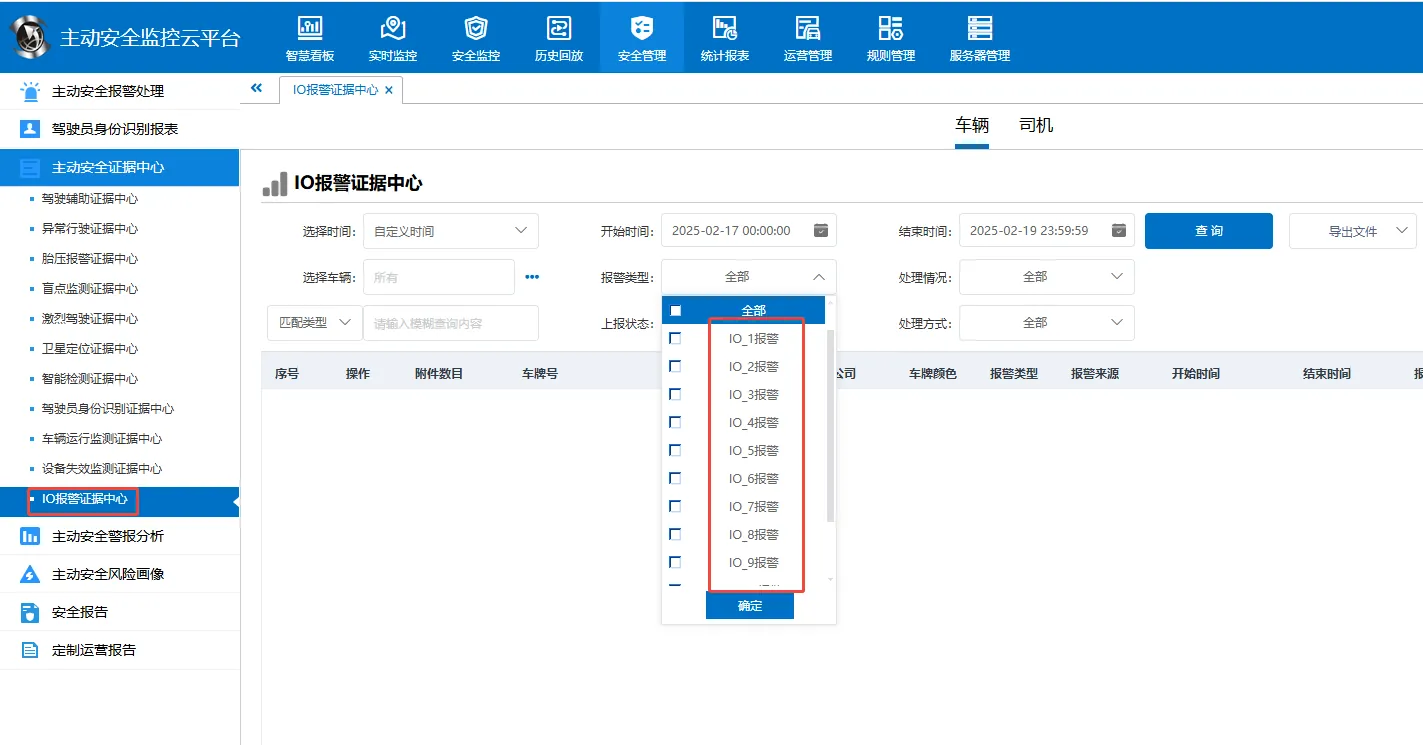

Evidence Center:

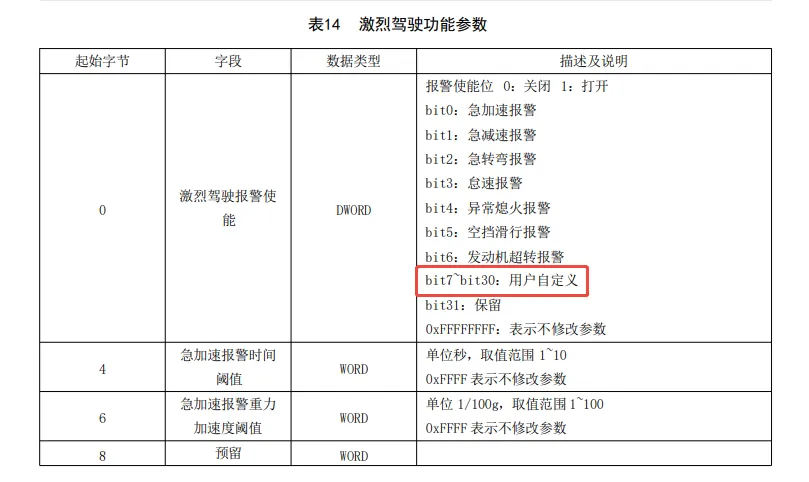

2.2 alarm settings
bit16: collision alarm
bit17: rollover alarm
bit18: start
bit19: Stop

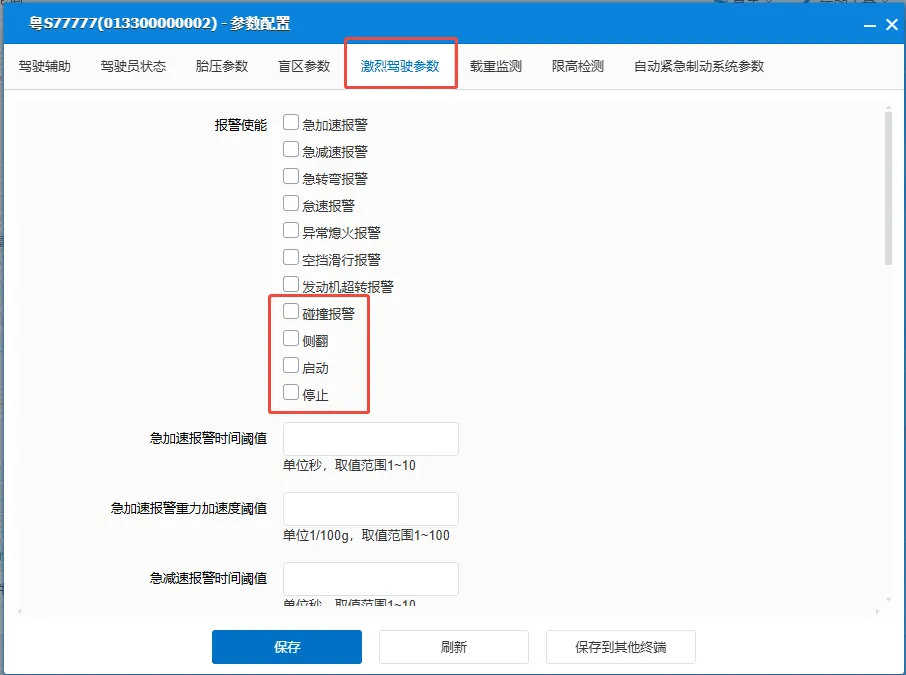

Active security parameter configuration:
