0x 64 Advanced Driving Assistance System (ADAS): Sichuan's driving assistance alarm, starting with 0x64
-
0x 65 Driver Condition Monitoring System (DSM): Sichuan Pilot Driver Behavior Alarm, starting with 0x65

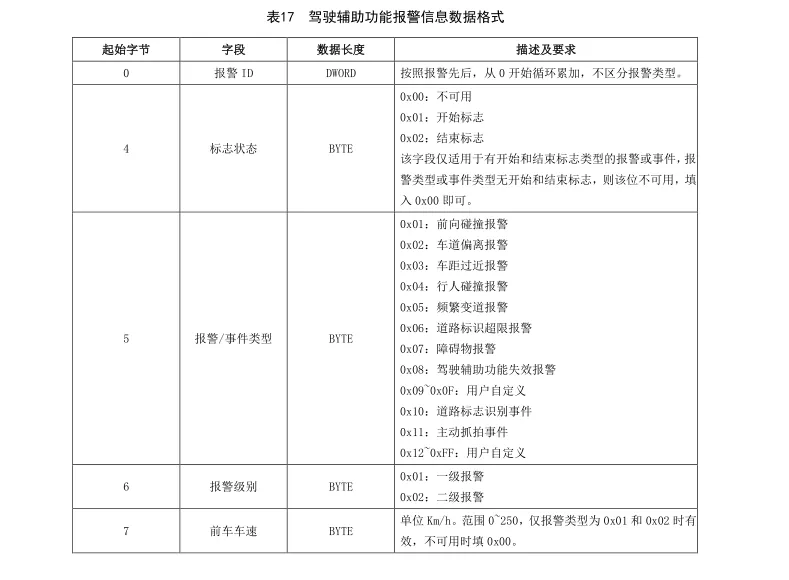

| 64 + 01 | Forward Collision Warning |
| 64 + 02 | Lane Departure Warning |
| 64 + 03 | Train proximity alarm |
| 64 + 04 | Pedestrian collision alarm |
| 64 + 05 | Frequent lane change alarm |
| 64 + 06 | Road sign overrun alarm |
| 64 + 07 | Obstacle alarm |

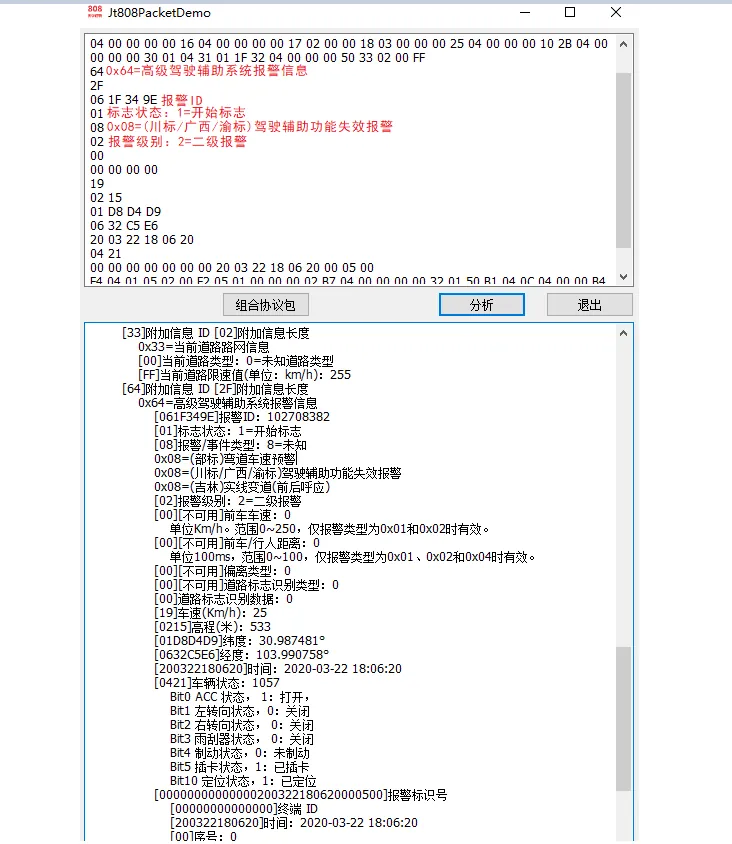

| 64 + 08 | Driver assistance function failure alarm |
| 64 + 10 | Road sign recognition events |
| 64 + 11 | Active capture events |
| Alarm ID | Alarm Name |

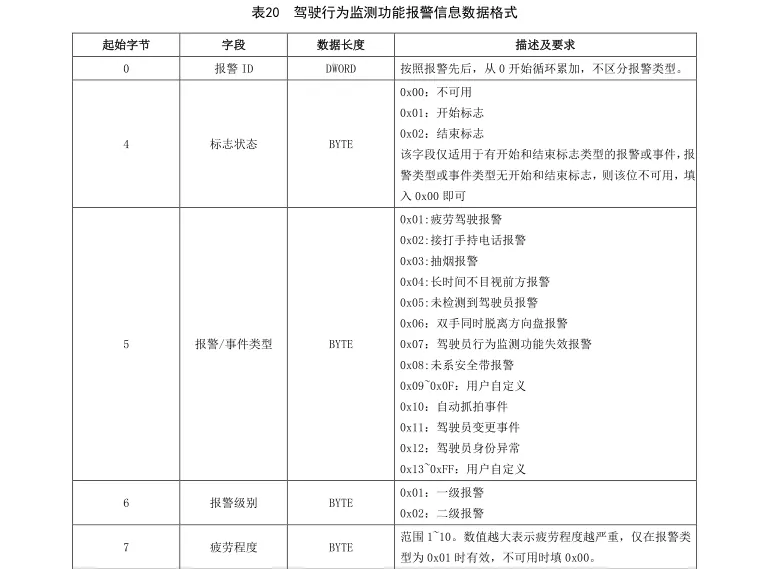

| 65 + 01 | Fatigue driving alarm |
| 65 + 02 | Call and answer handset alarm |
| 65 + 03 | Smoking alarm |
| 65 + 04 | Not looking ahead for a long time |

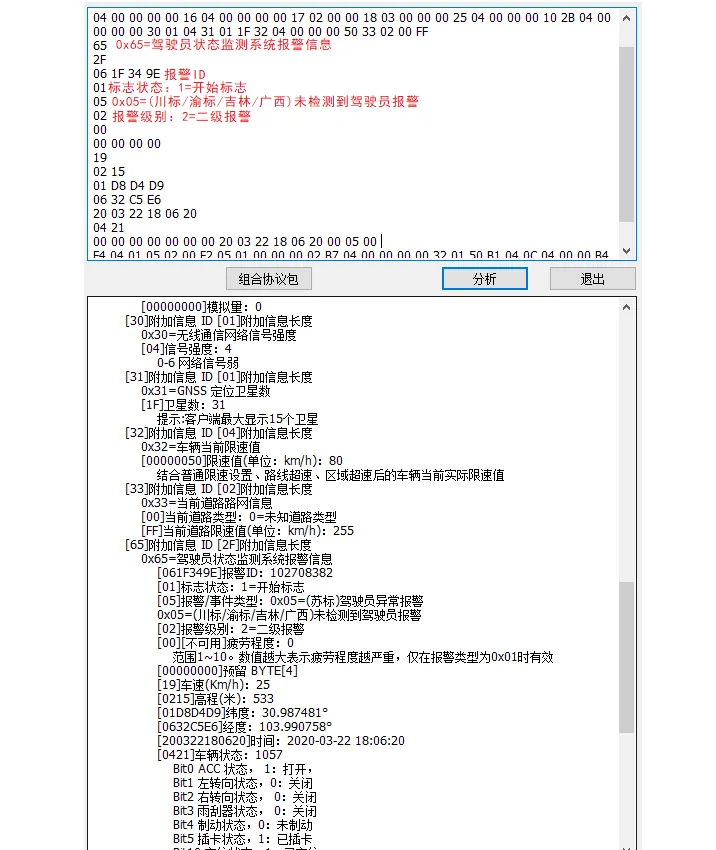

| 65 + 05 | Driver alarm not detected |
| 65 + 06 | Both hands off the steering wheel at the same time alarm |
| 65 + 07 | Driver Behavior Monitoring Failure Alarm |
| 65 + 08 | Not wearing seat belt alarm |
| 65 + 10 | Auto- capture events |
| 65 + 11 | Driver change events |
| 65 + 12 | Driver status anomaly |
- Alarm ID Form Description:
- 65/64 refers to the alarm ID of the driver status alarm/driving assistance alarm
- 01/02/03/... refers to: the identification corresponding to the specific alarm name
