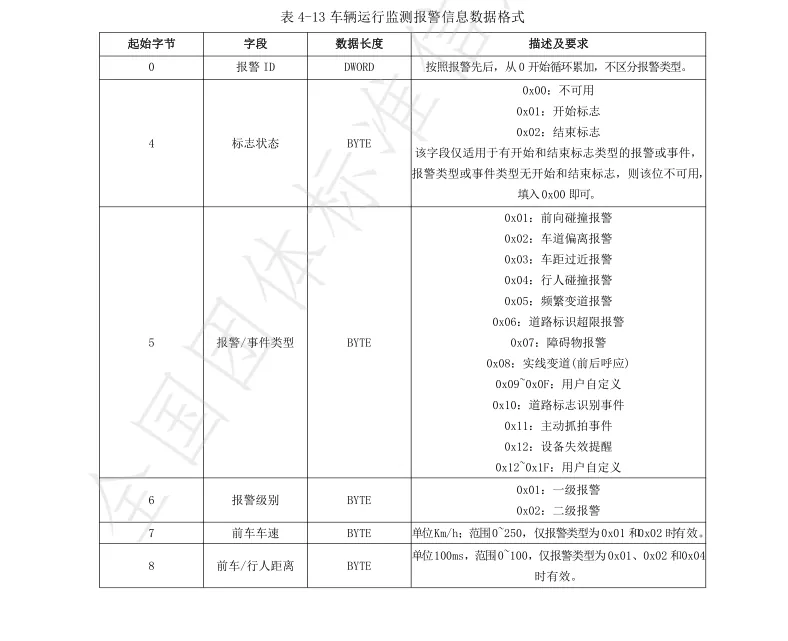

0x 64 vehicle operation detection system alarm information (ADAS): Ji standard driving assistance alarm, starting with 0x64

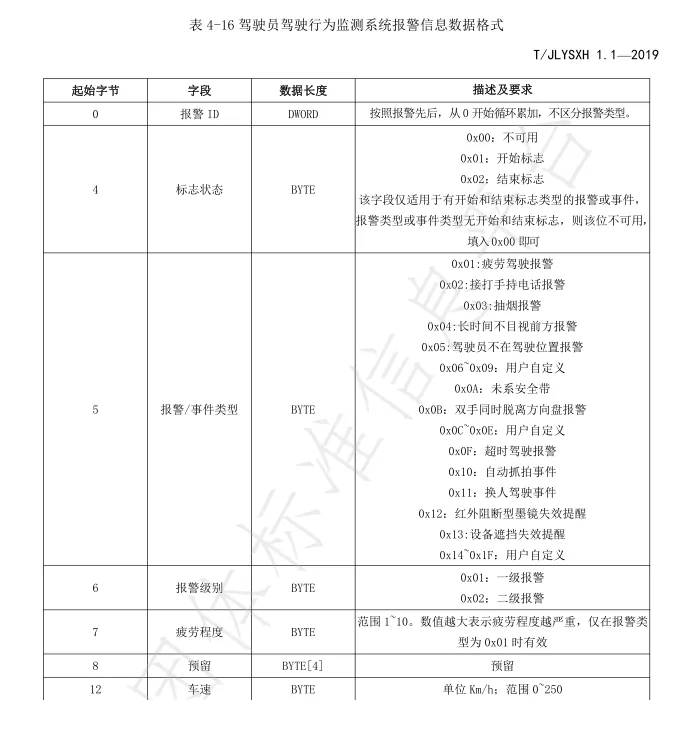

0x 65 Driver's Driving Behavior Monitoring System Alarm Information (DSM): Ji Begin with 0x65
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |
| 64 01 | Forward Collision Warning |
| 64 02 | Lane Departure Warning |
| 64 03 | Train proximity alarm |
| 64 04 | Pedestrian collision alarm |
| 64 05 | Frequent lane change alarm |
| 64 06 | Road identification overrun alarm |
| 64 07 | Obstacle alarm |
| 64 08 | Solid line lane change |
| 64 10 | Road sign recognition events |
| 64 11 | Active capture events |
| 64 12 | Device Failure Alert |
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |
| 65 01 | Fatigue driving alarm |
| 65 02 | Call and answer handset alarm |
| 65 03 | Smoking alarm |
| 65 04 | Not looking ahead for a long time |
| 65 05 | The driver is not in the driving position to give an alarm |
| 65 0A | Seatbelt not worn |
| 65 0B | Both hands off the steering wheel at the same time |
| 65 0F | Time- out driving alarm |
| 65 10 | Auto- capture events |
| 65 11 | Replacement Driving Event |
| 65 12 | Failure Reminder for Infrared Blocking Sunglasses |
| 65 13 | Device Occlusion Failure Reminder |

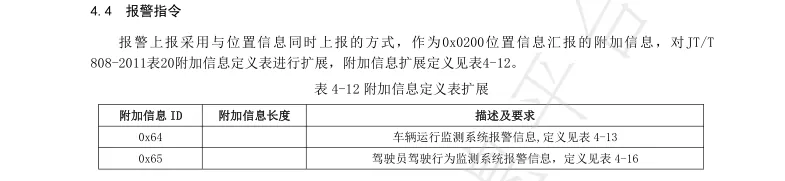

- Alarm ID Form Description:
- 65/64 refers to the alarm ID of the driver status alarm/driving assistance alarm
- 01/02/03/… refers to: the identification corresponding to the specific alarm name
