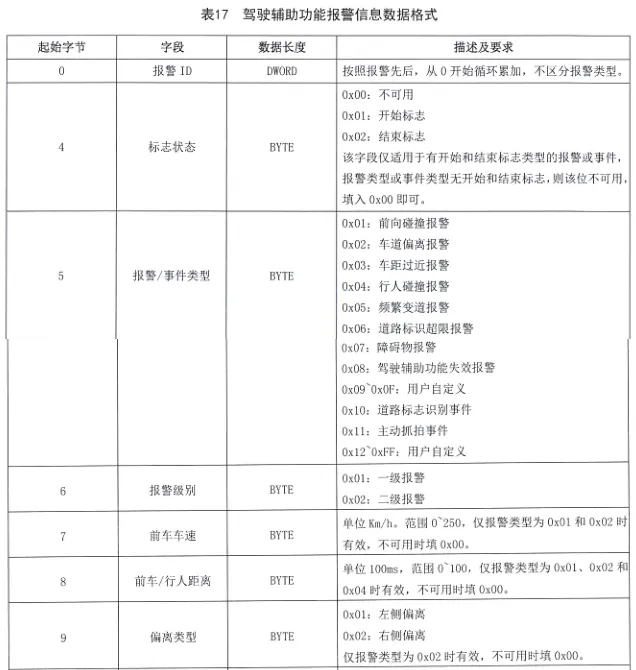

0x 64 Advanced Driver Assistance System (ADAS): Wide standard driver assistance alarm, starting with 0x64
-

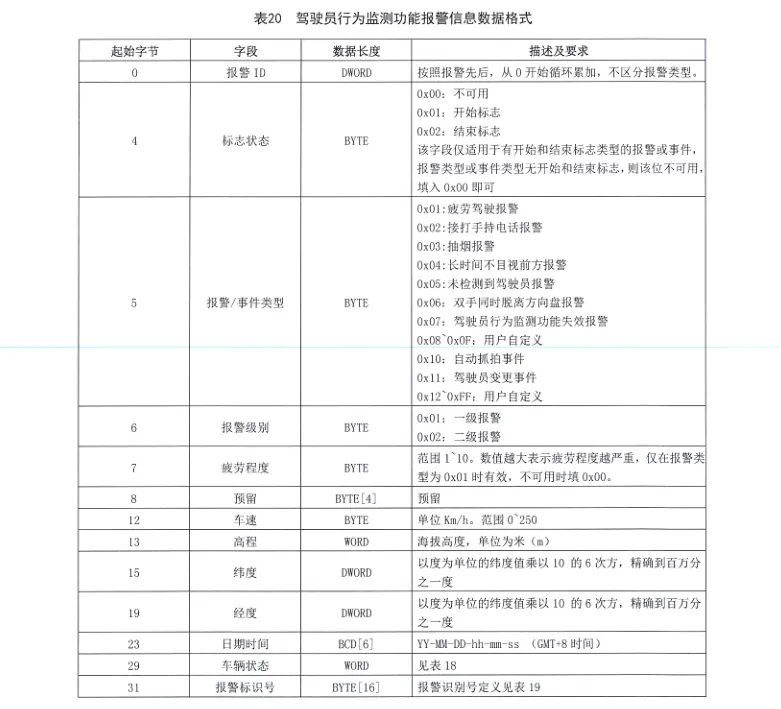

0x 65 driver condition monitoring system (DSM): wide standard driver behavior alarm, starting with 0x65
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |
| 64 01 | Forward Collision Warning |
| 64 02 | Lane Departure Warning |
| 64 03 | Train proximity alarm |
| 64 04 | Pedestrian collision alarm |
| 64 05 | Frequent lane change alarm |
| 64 06 | Road sign overrun alarm |
| 64 07 | Obstacle alarm |
| 64 08 | Driver assistance function failure alarm |
| 64 10 | Road sign recognition events |
| 64 11 | Active capture events |
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |
| 65 01 | Fatigue driving alarm |
| 65 02 | Call and answer handset alarm |
| 65 03 | Smoking alarm |
| 65 04 | Not looking ahead for a long time |
| 65 05 | Driver alarm not detected |
| 65 06 | Both hands off the steering wheel at the same time alarm |
| 65 07 | Driver Behavior Detection Function Failure Alarm |
| 65 10 | Auto- capture events |
| 65 11 | Driver change events |
- Alarm ID Form Description:
- 65/64 refers to the alarm ID of the driver status alarm/driving assistance alarm
- 01/02/03/… refers to: the identification corresponding to the specific alarm name
