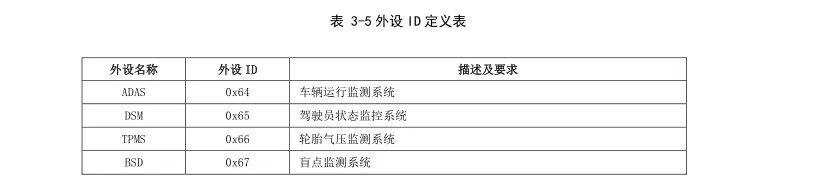

0x 64 Vehicle Operation Detection System (ADAS): Ganbiao's driving assistance alarm, starting with 0x64
-
0x 65 Driver Driving Status Monitoring System (DSM): Ganbiao's driver behavior alarm, starting with 0x65
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |

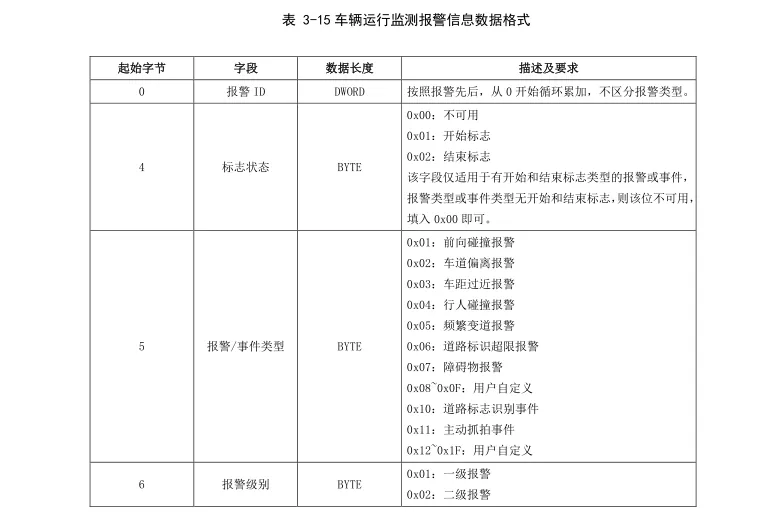

| 64 01 | Forward Collision Warning |
| 64 02 | Lane Departure Warning |
| 64 03 | Train proximity alarm |
| 64 04 | Pedestrian collision alarm |
| 64 05 | Frequent lane change alarm |
| 64 06 | Road sign overrun alarm |
| 64 07 | Obstacle alarm |
| 64 10 | Road sign recognition events |
| 64 11 | Active capture events |
| | | |
| - - - - - - - - - - - - | - - - - - - - - - - - - |

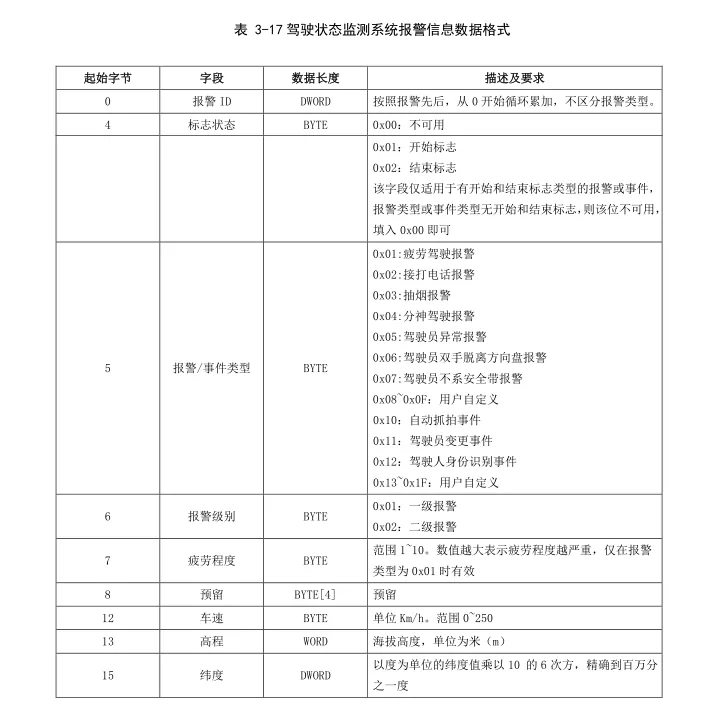

| 65 01 | Fatigue driving alarm |
| 65 02 | Call the police |
| 65 03 | Smoking alarm |
| 65 04 | distracted driving alarm |
| 65 05 | Driver Abnormal Alarm |
| 65 06 | Driver hands off steering wheel alarm |
| 65 07 | Driver not wearing seat belt alarm |
| 65 10 | Auto- capture events |
| 65 11 | Driver change events |
| 65 12 | Driver identification event |
- Alarm ID Form Description:
- 65/64 refers to the alarm ID of the driver status alarm/driving assistance alarm
- 01/02/03/… refers to: the identification corresponding to the specific alarm name
