1. Function description
In the specified area, parking for more than the specified length of time, will produce area parking timeout alarm
2. operating instructions

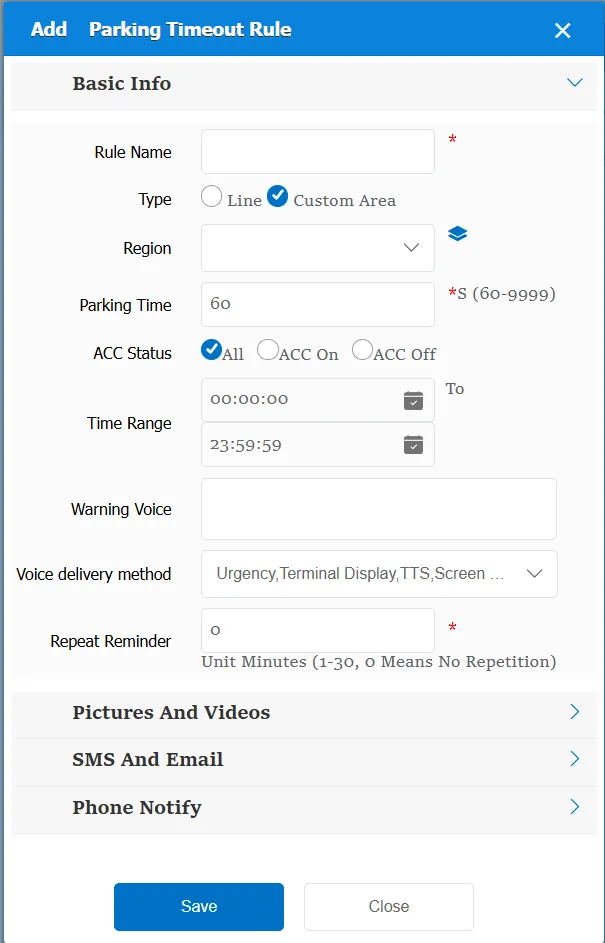

2 Basic information
Rule Name: Customize, customize the name according to the actual situation
Type:

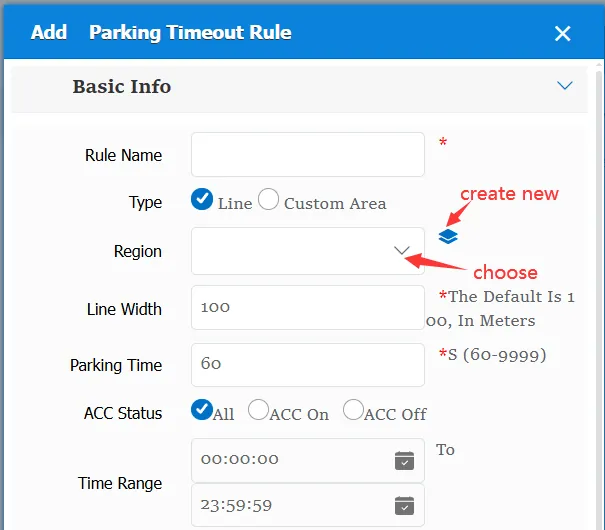

Line: You need to select an existing line or add a new line and specify the effective width of the line.

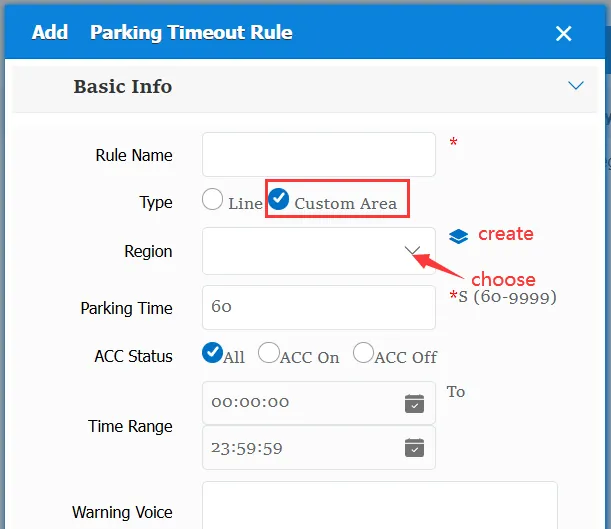

Custom area: need to select the existing area or add a new area
Parking Duration: a custom duration threshold. If this value is exceeded, an alarm will be given if the conditions are met.
ACC Status:
All: This item does not take effect
ACC ON: Conditions take effect only when ACC is ON
ACC OFF: The condition takes effect only when the ACC is OFF
Time Range: the time period when the rule takes effect.
Alarm Voice: the text message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display

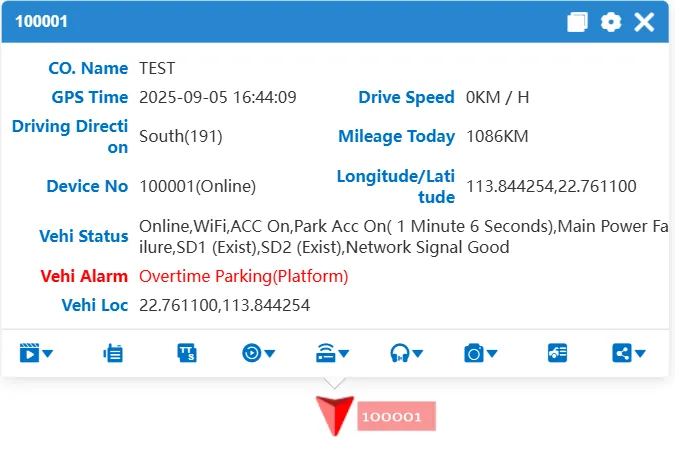

Vehicle bubble box alarm display:
Because there is only the overtime parking status bit in the vehicle status, there is no partition in the bubble box: overtime parking (platform) and area overtime parking(platform), both of which are displayed as overtime parking(platform)

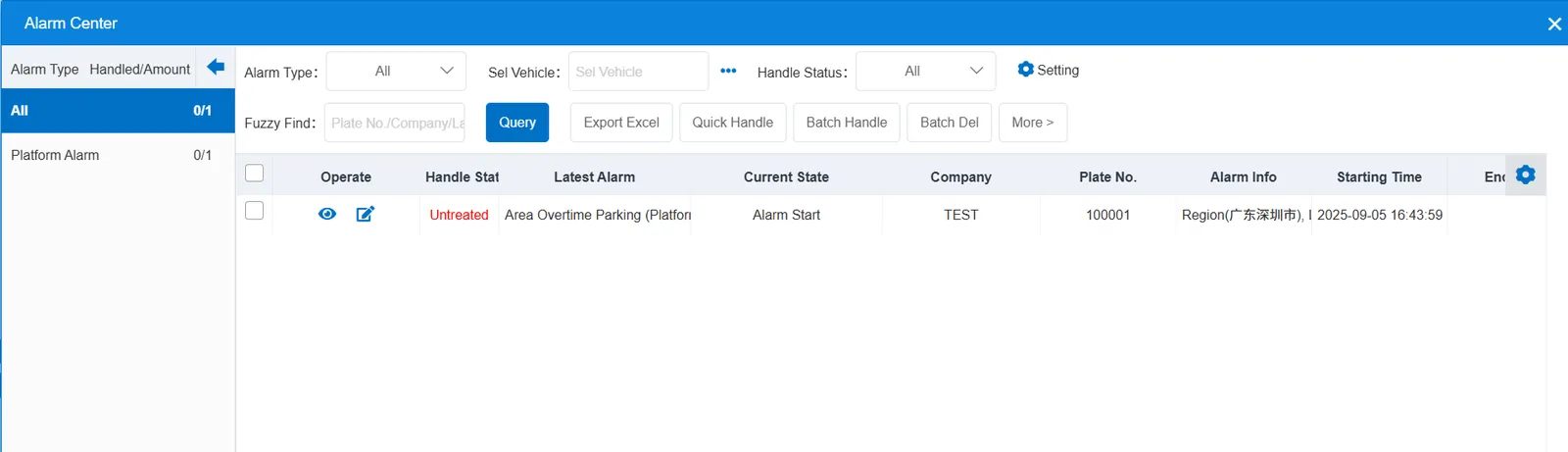

alarm center alarm display:
2.3 alarm information query

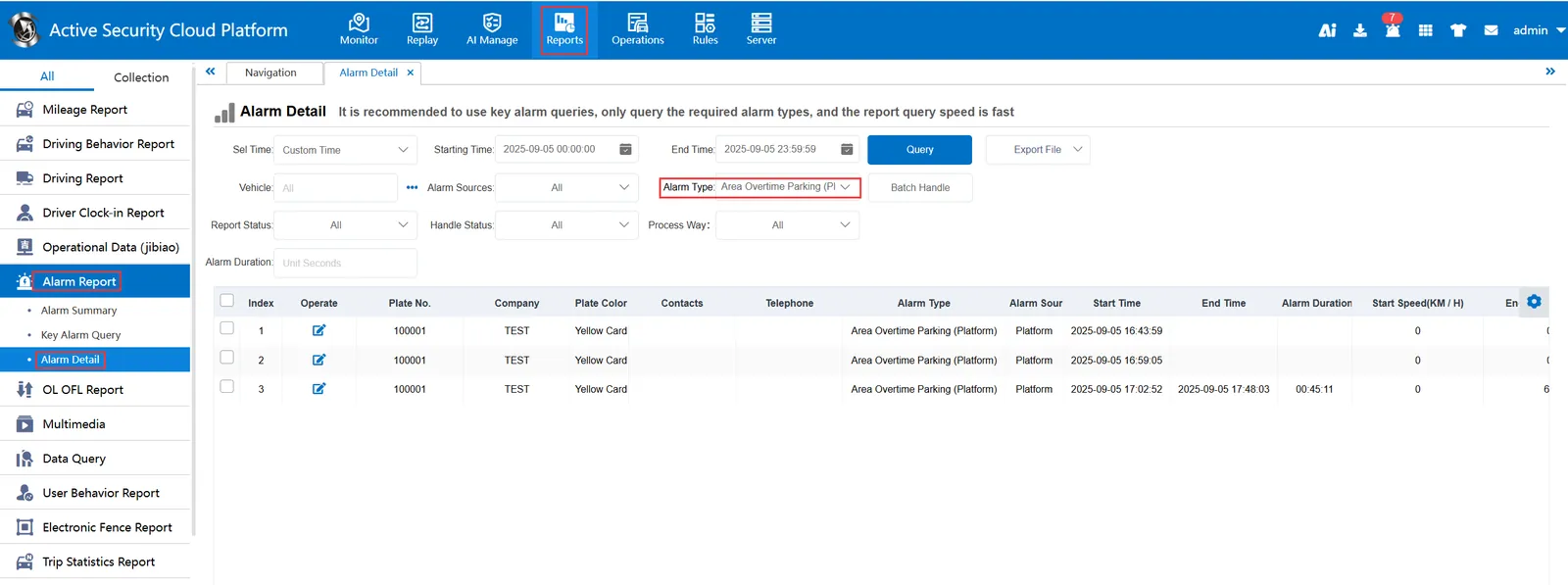

When querying alarms, you can select "Area Overtime Parking(Platform)" for "alarm type" in the "Reports"- "Alarm Report"- "Alarm Detail" report
