1、 function description
Door magnetic status and door magnetic alarm
2、 operating instructions

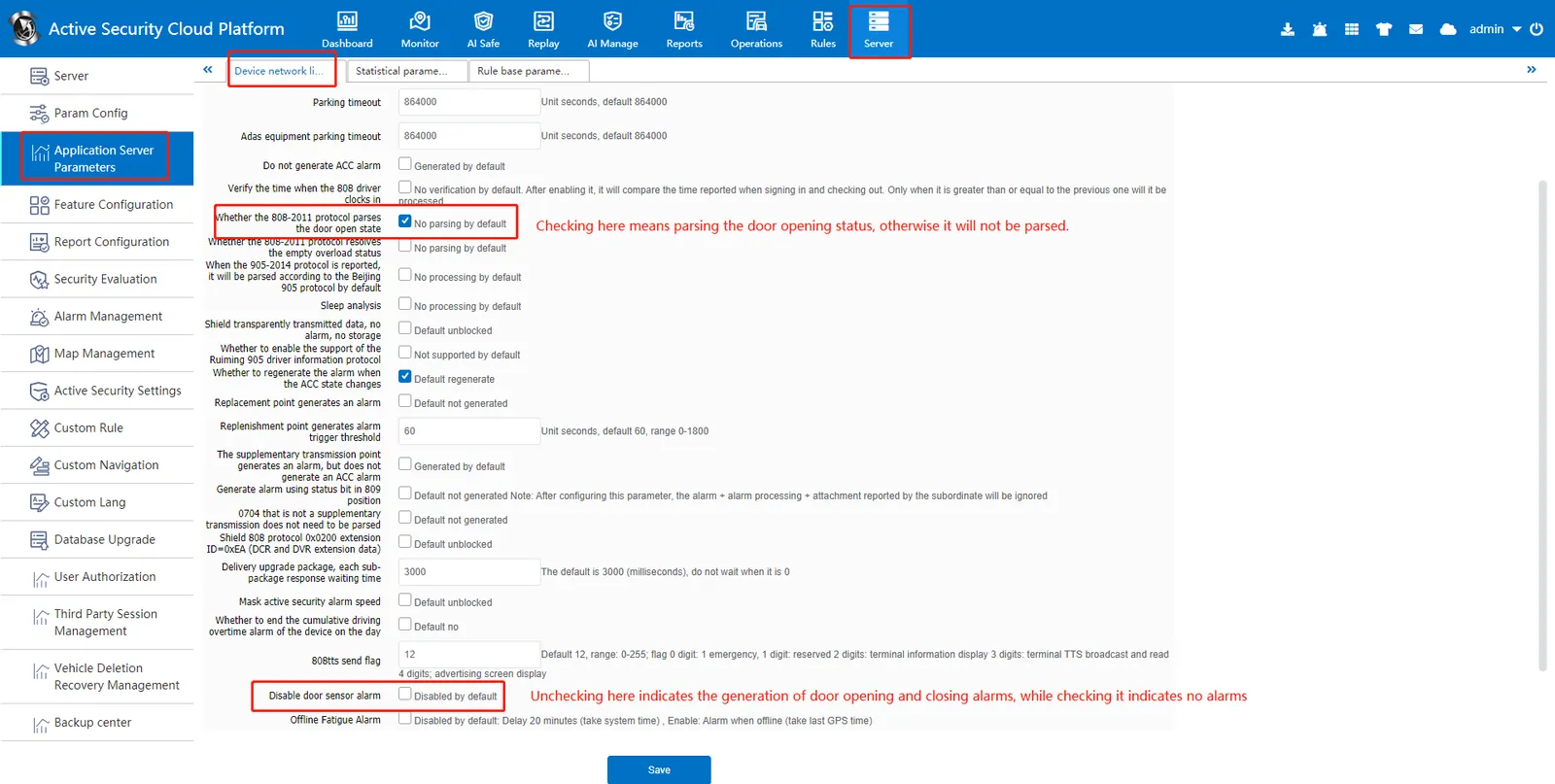

2.1 open Server Management- > Application Server Parameters- > Device Network Library Parameters
(1) Checking [808- 2011 Agreement Resolves Door Opening Status] means resolving the door opening status; if not checked, it will not resolve
(2) Do not check [Disable Door Magnetic Alarm] to generate door opening alarm, check it to generate no alarm

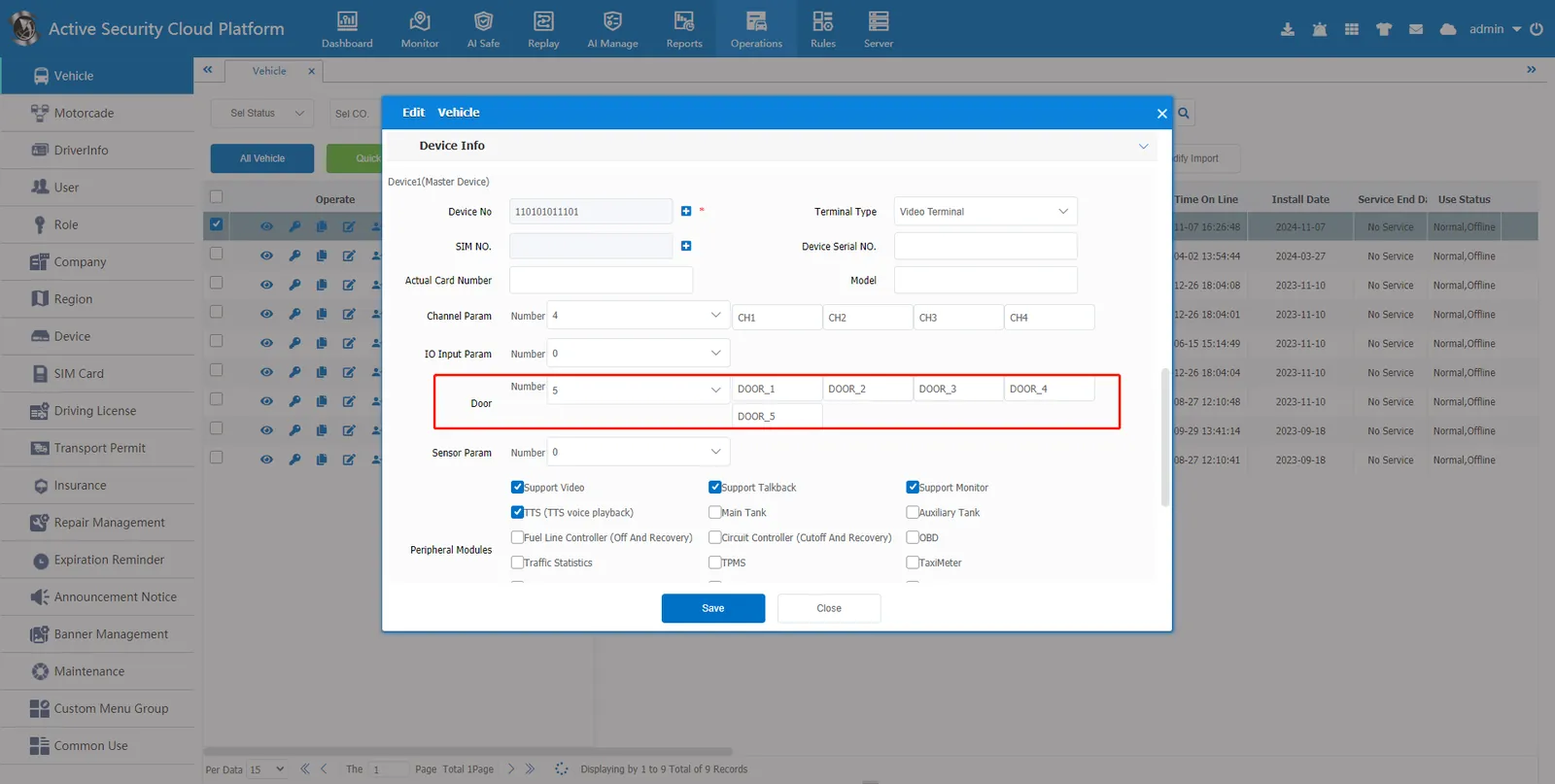

2.2 edit vehicle information, select number of doors

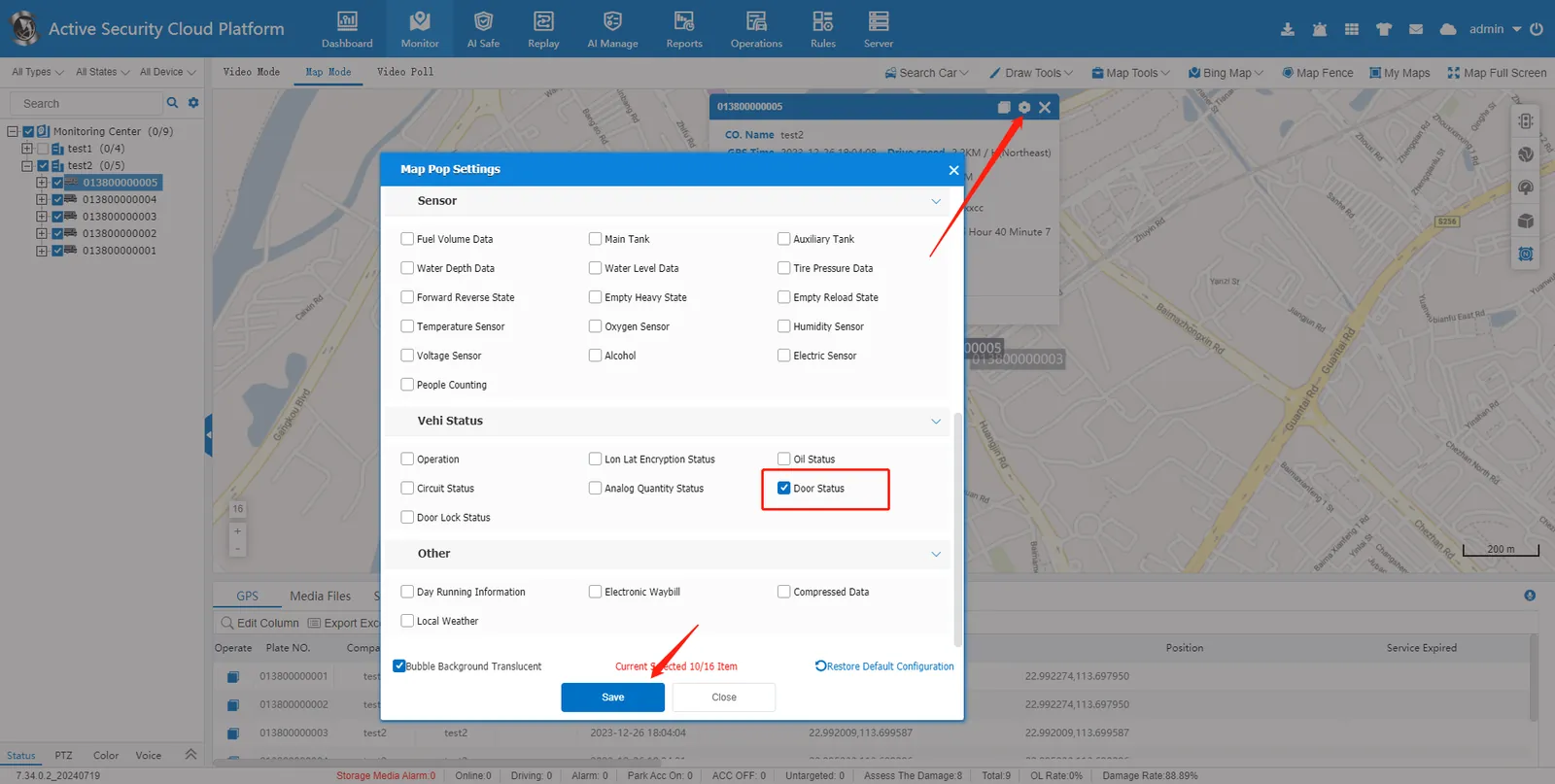

2.3 check whether "Map Bubble Settings" is checked to enable "Door Status"

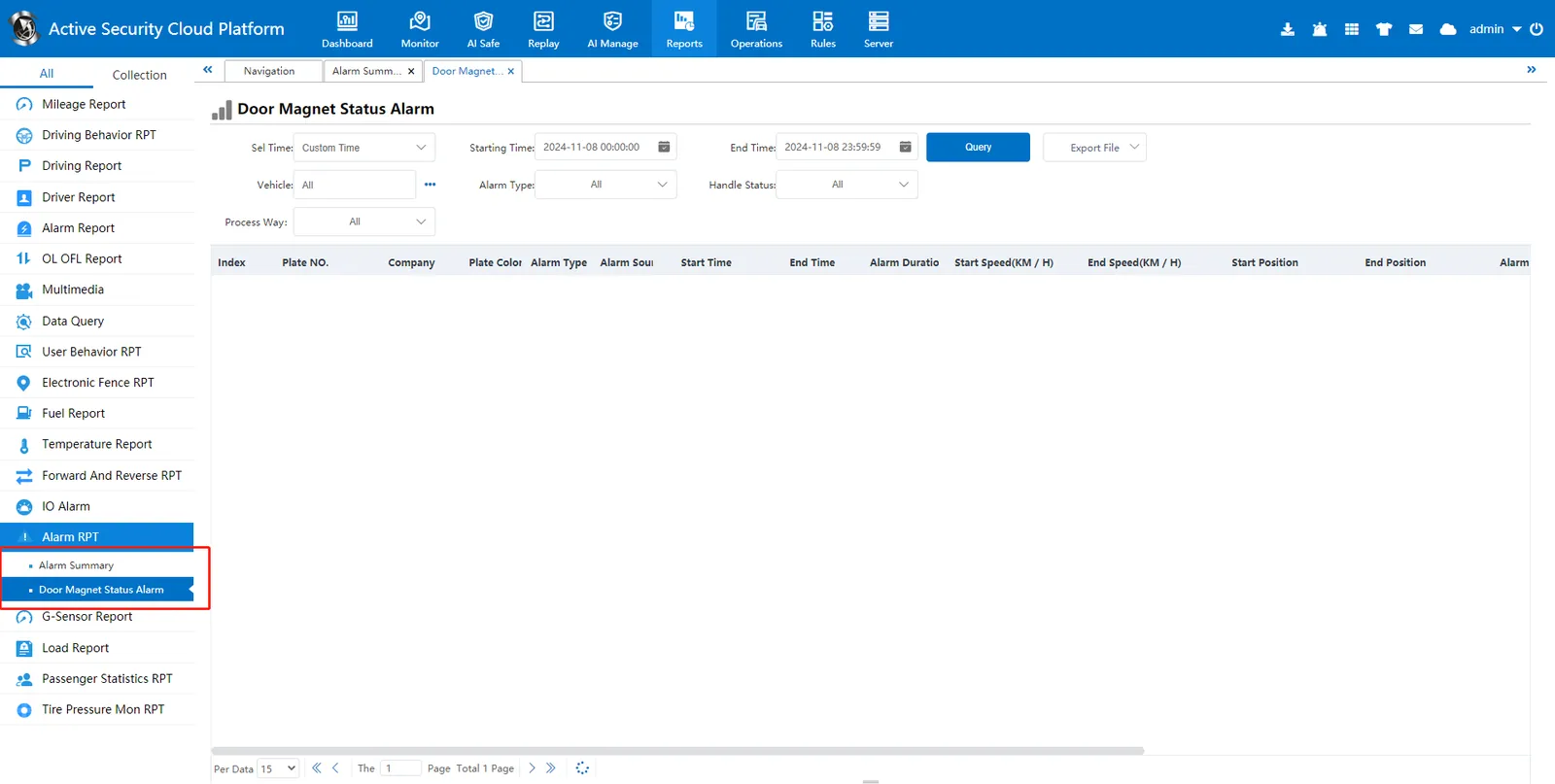

2.4 door magnetic status alarm related reports
3、 Precautions
Note: The server operation method involves restarting the gateway server.

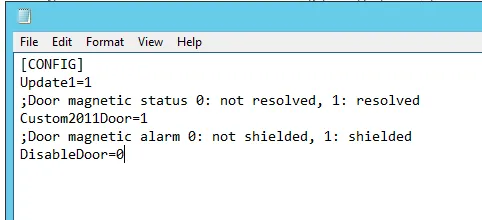

Server- related configuration file path: bin/plugin/MDVR/808config.ini
; Gate magnetic state 0: not resolved, 1: resolved
Custom2011Door = 1
; Door magnetic alarm 0: not shielded, 1: shielded
DisableDoor=0
callout: the default values are do not parse and do not mask
Save after configuration; Finally restart the gateway server
