1. Function description
A. The equipment uses 28181 and TTX protocols. The server captures pictures at intervals for identification. It can also be processed by configuring regular capture rules.
B. The server calls a third- party interface to identify the reported picture, and uses the identification result to generate an alarm and save the result to the database.
C. The alarm needs to be associated with the picture for use in report query.
D. Use of third- party AI recognition algorithms
2. operating instructions

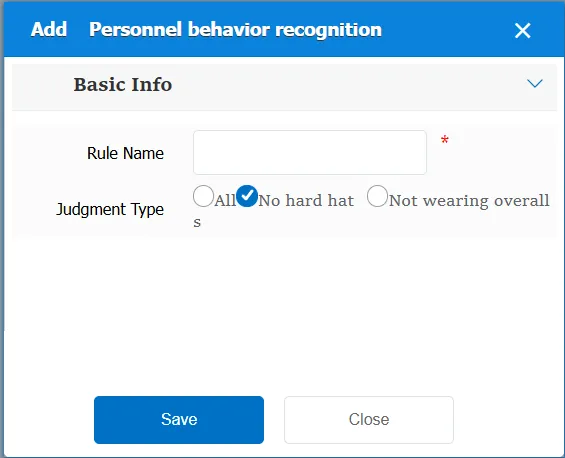

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Judgment type::
All (without safety helmet and work clothes) are judged
No safety helmet: only judge the situation of no safety helmet
Not wearing work clothes: only judge the situation of not wearing work clothes
2.2 alarm information display
Vehicle bubble box alarm display:
The alarm is in the vehicle bubble box and is not displayed

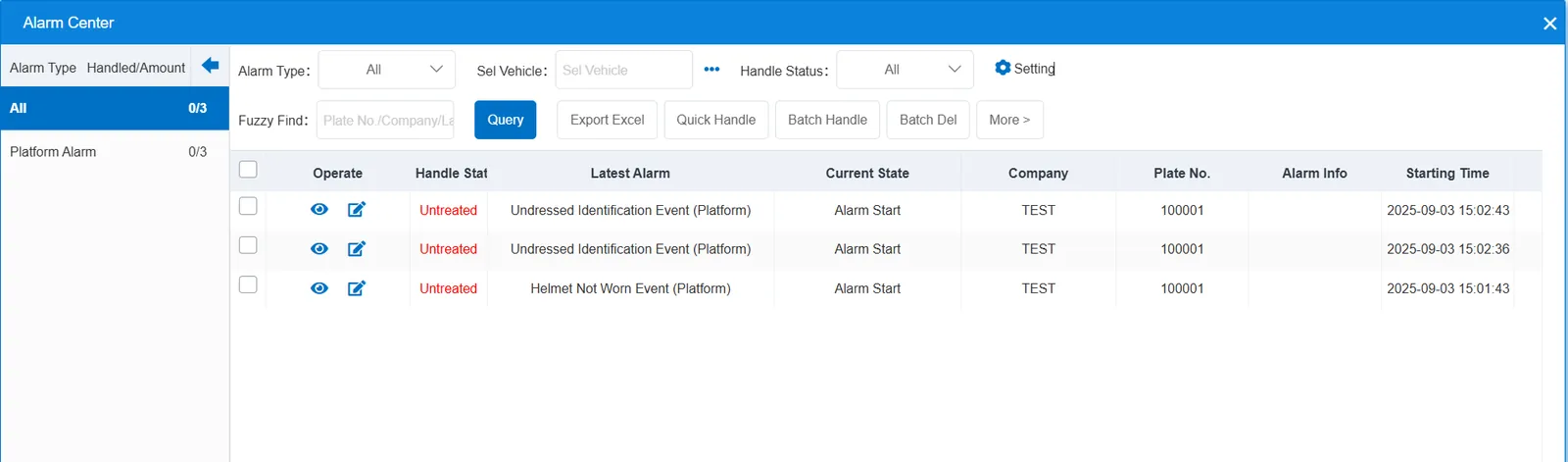

alarm center alarm display:

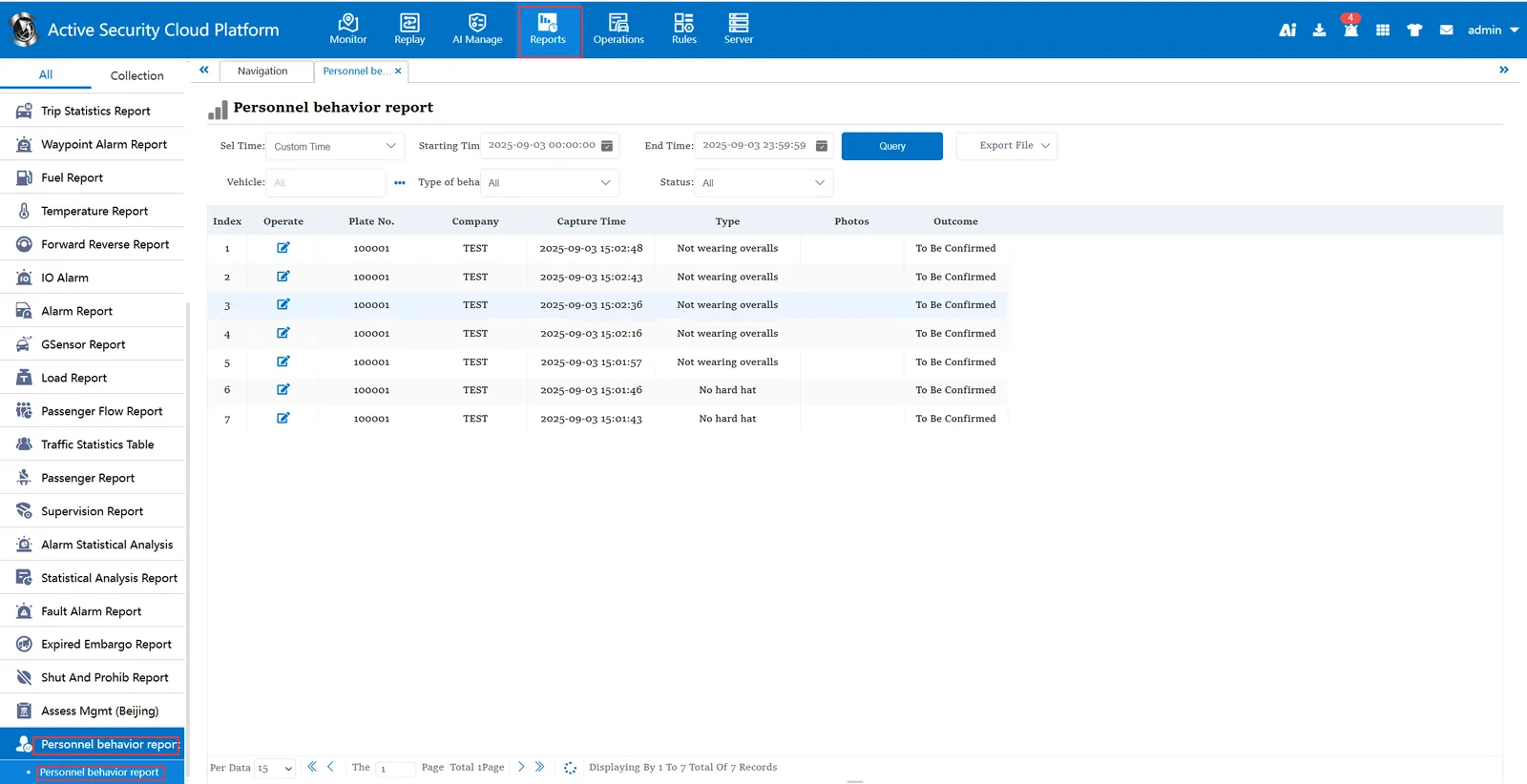

2.3 alarm information query
Alarm information is queried in the "Statistics Report"- "Personnel Behavior Report"- "Personnel Behavior Report" report.

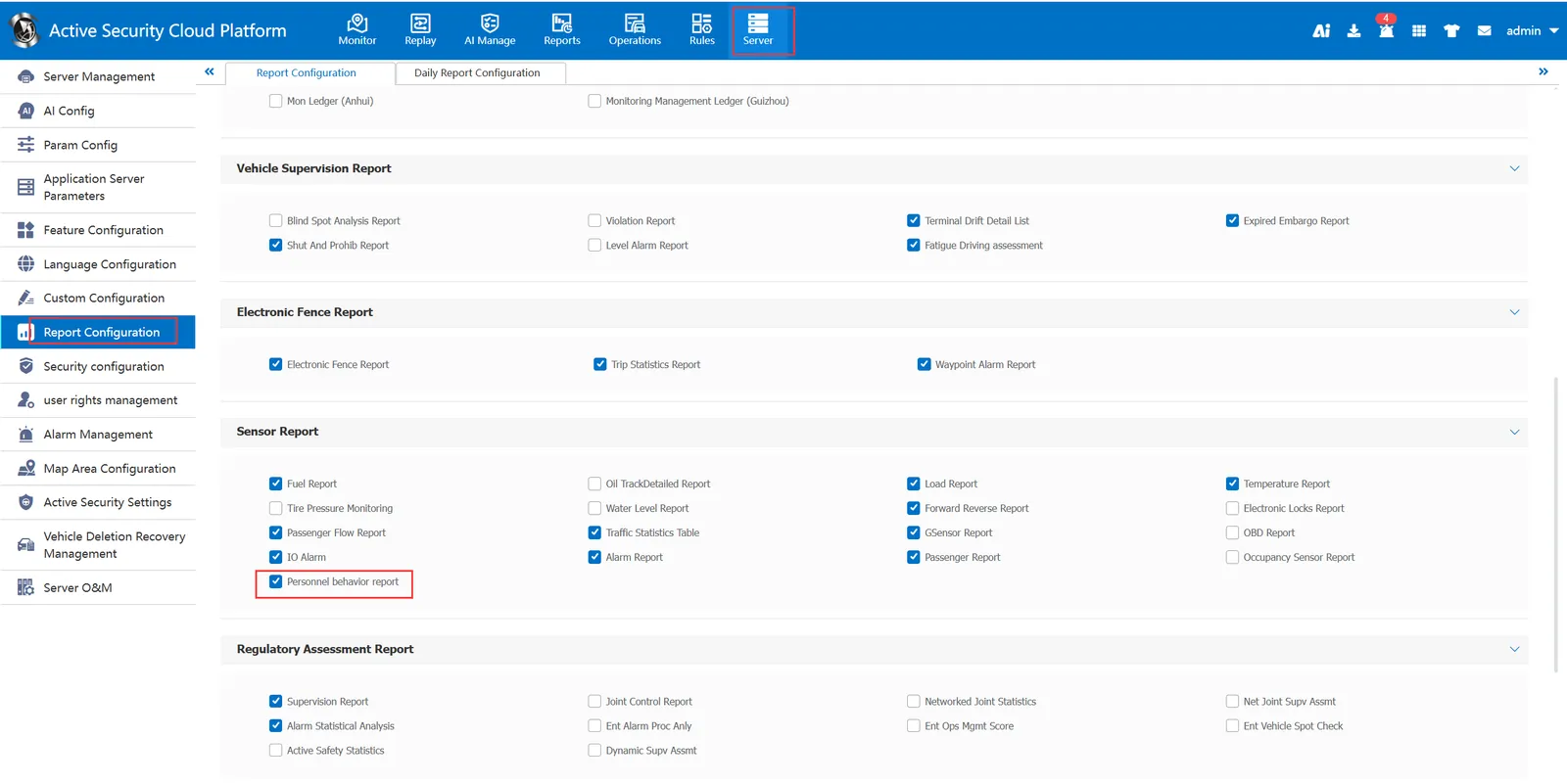

Note: For the personnel behavior report, check "Personnel Behavior Report" in "Server Management"- "Report Configuration"- "Sensor Report"
