1. Function description
2, operating instructions
Platform alarm classification
1 Rule Definition
According to the selected alarm level, alarm type, speed threshold and judgment type, according to the situation of equipment triggering alarm, determine the platform alarm

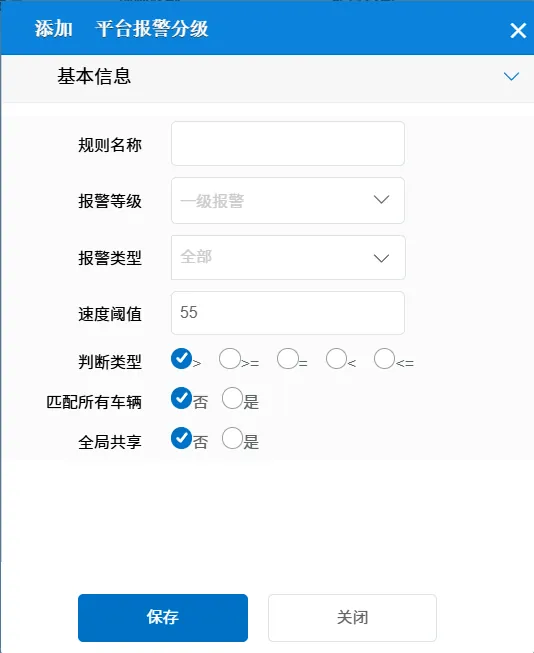

2 Basic information
Rule Name: Customize, customize the name according to the actual situation
Alarm level: refers to the final alarm level generated by the platform, including: level 1 alarm, level 2 alarm and level 3 alarm
Alarm Type: determines the alarm level of the platform based on the alarm types of the devices.
Speed threshold: the GPS speed of the device when the corresponding level of platform alarm classification is triggered.
Judgment type:
> This rule is triggered when the GPS speed of the device is greater than the speed threshold
> = This rule is triggered when the GPS speed of the device is greater than or equal to the speed threshold
= This rule is triggered when the device's GPS speed is equal to the speed threshold
<This rule is triggered when the device's GPS speed is less than the speed threshold
<= This rule is triggered when the device's GPS speed is less than or equal to the speed threshold
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display
Vehicle bubble box alarm display:
The alarm is in the vehicle bubble box and is not displayed
alarm center alarm display:
2.3 alarm information query
The alarm information is queried in the report of "Statistics Report"- "Network Joint Control Report"- "Key Alarm Processing", and the alarm type is selected as "In and Out Area Alarm (Platform)"
