1. Function description
If the time interval between two adjacent GPS points is less than the configured time threshold but the interval distance is greater than the configured time threshold, an alarm will be generated.
2. operating instructions

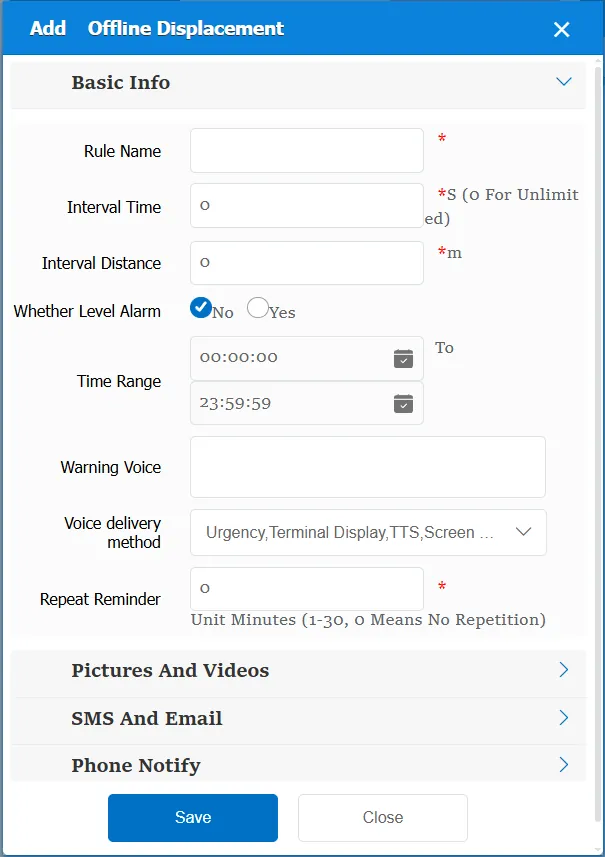

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Interval Time: The time interval between 2 adjacent GPS points
Interval Distance: The distance between 2 adjacent GPS points

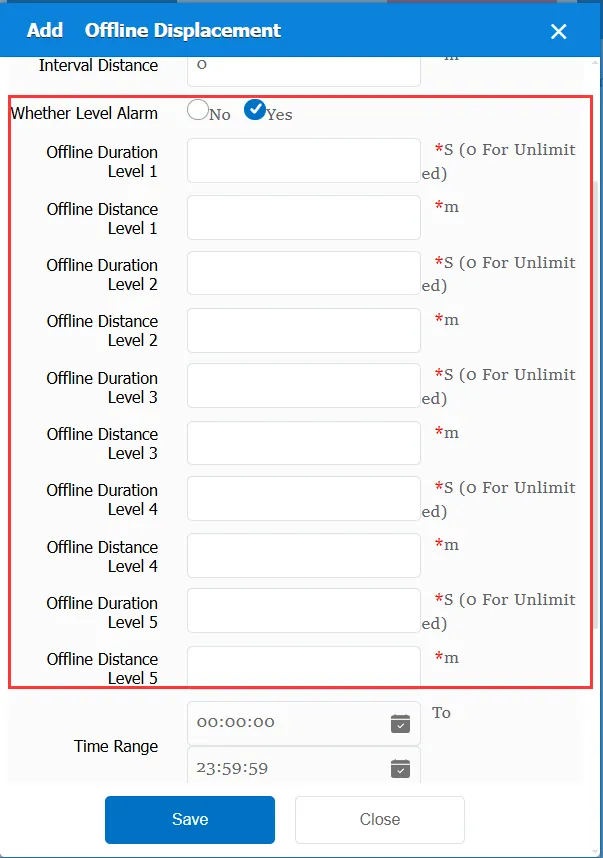

Level alarm:
No: This item is invalid
Yes: At this point, it is necessary to enter the corresponding offline duration and offline distance. When both the offline duration and offline distance meet the conditions, different levels of alarms will be generated
Time Range: the time period when the rule takes effect.
Alarm Voice: the text message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display
Vehicle bubble box alarm display:
The alarm is in the vehicle bubble box and is not displayed

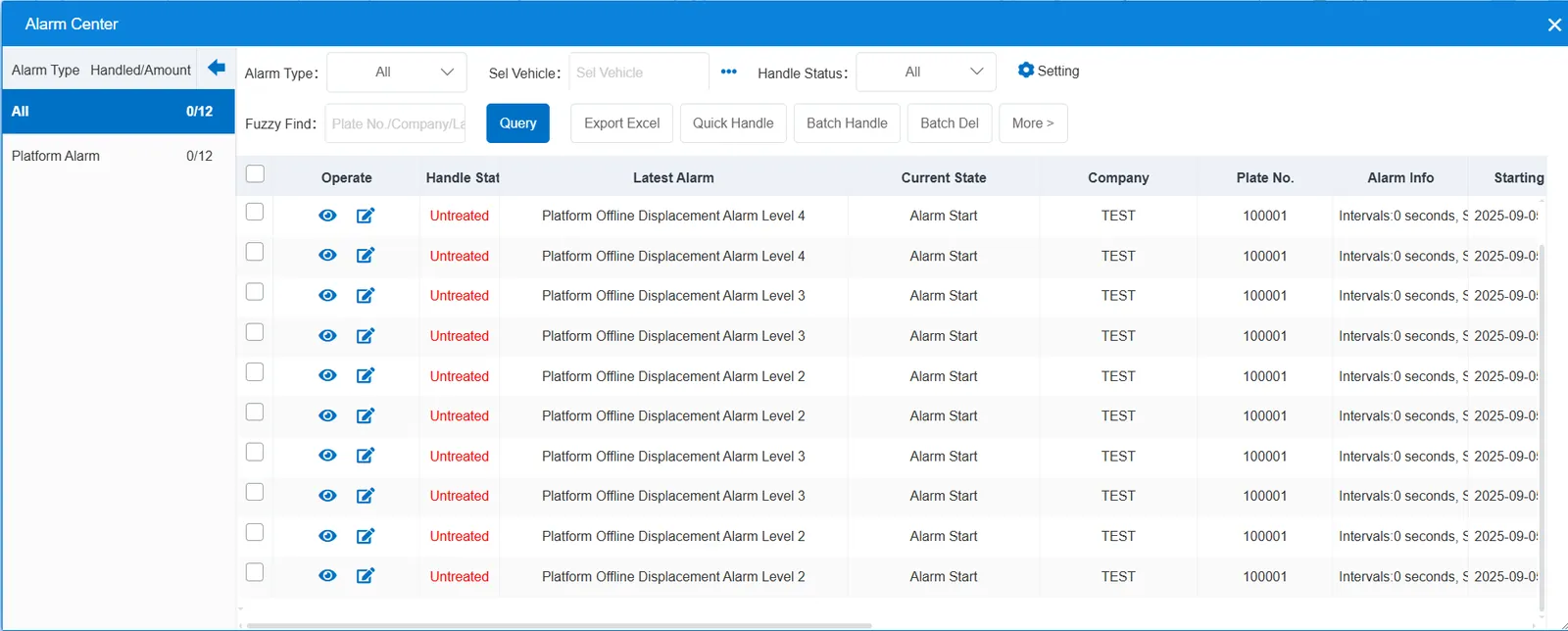

alarm center alarm display:
2.3 alarm information query

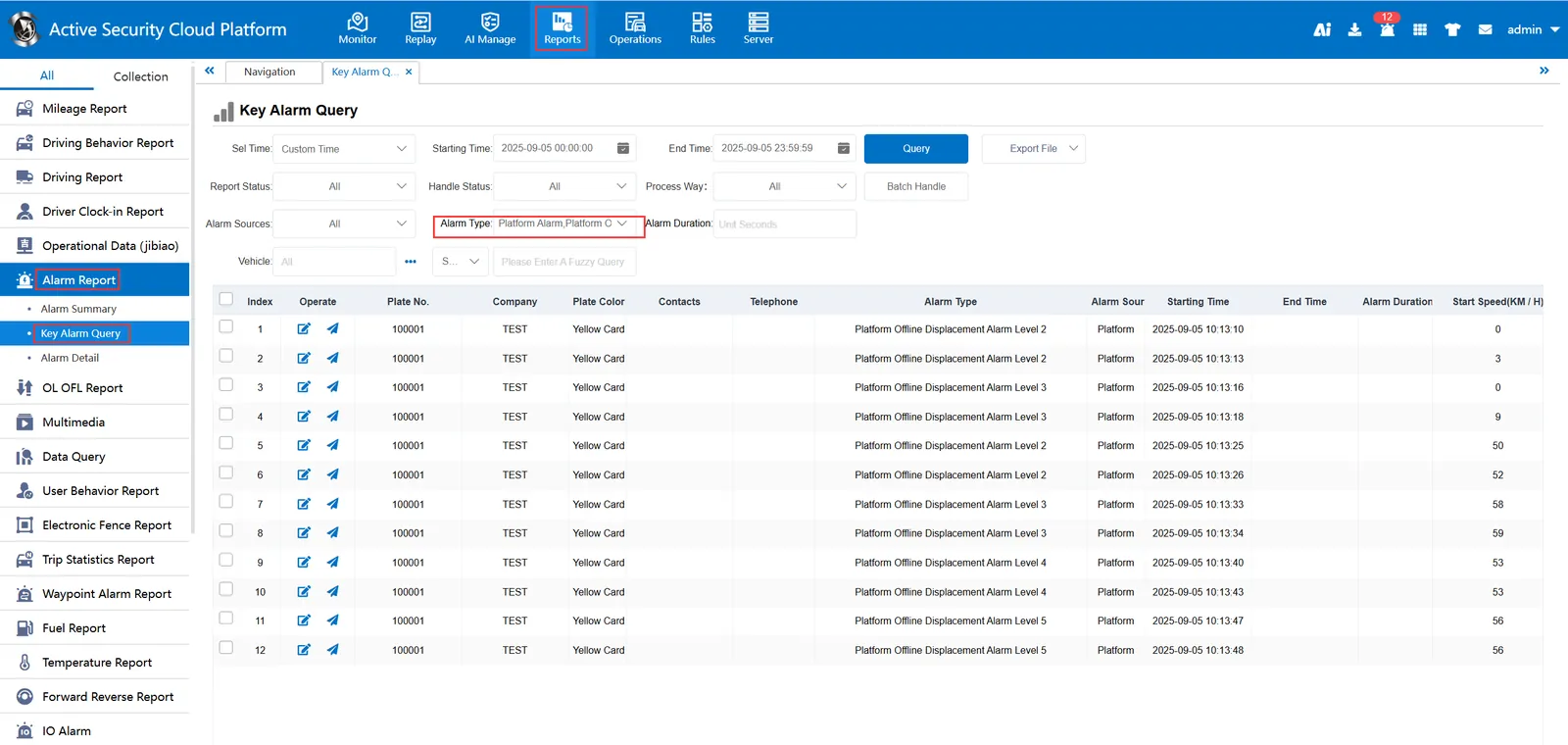

When querying alarms, you can select "Platform Offline Displacement Alarm Level 1~5" for "alarm type" in the "Reports"- "Alarm Report"- "Key Alarm Query" report
