1. Function description
- Take the selected route as the range and the GPS speed of the vehicle as the standard to judge whether the vehicle is speeding;
- If the GPS speed of the vehicle is greater than the set maximum speed, an alarm will be generated. Alarm Name: Line Overspeed Alarm (Platform)
2. operating instructions

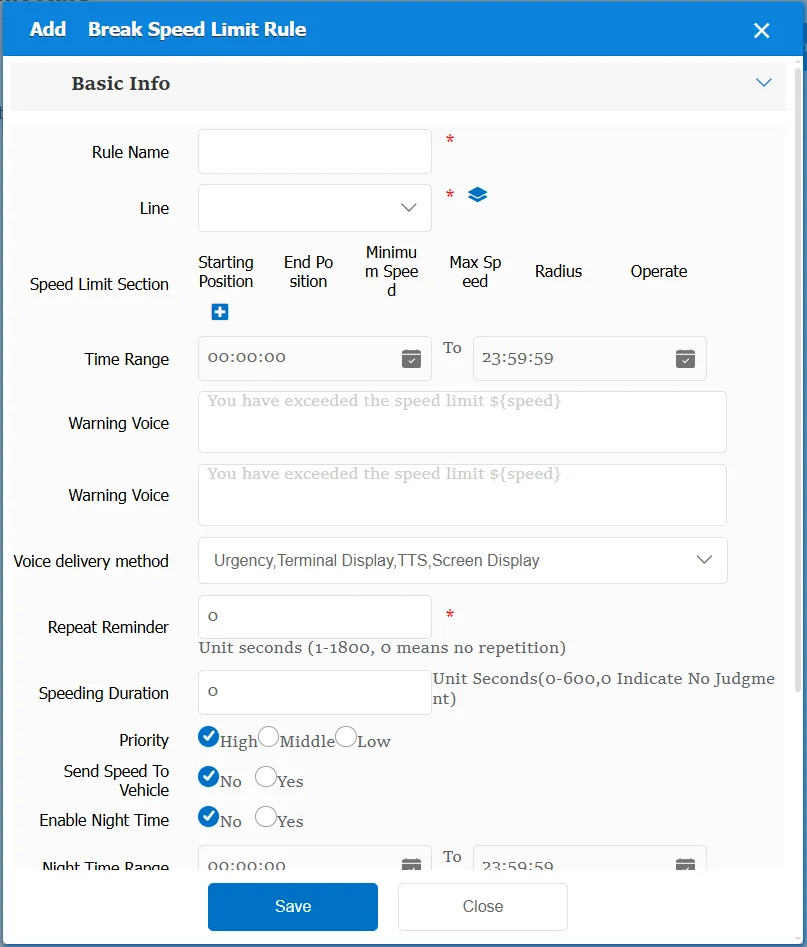

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation

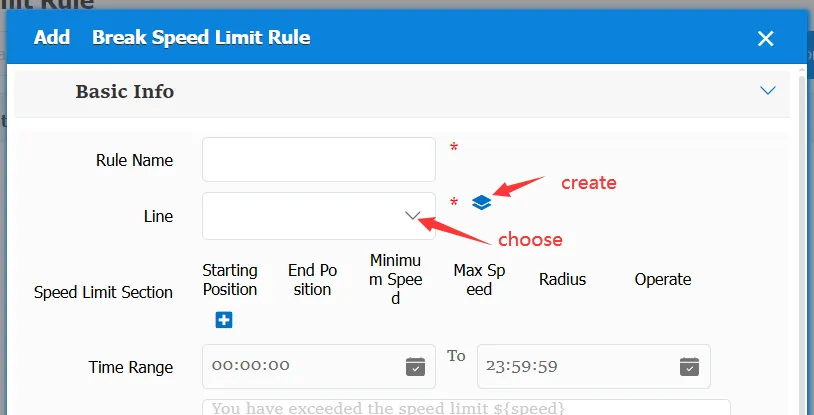

Line: Select or add a line

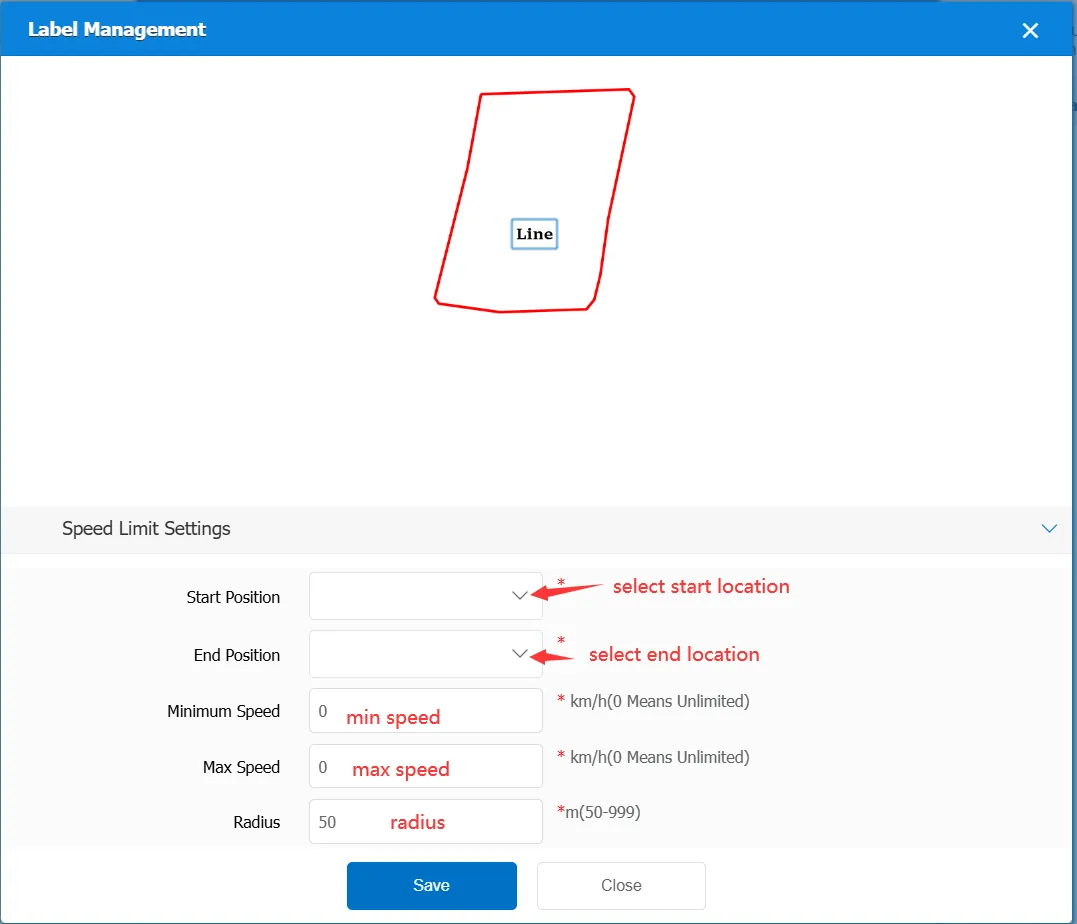

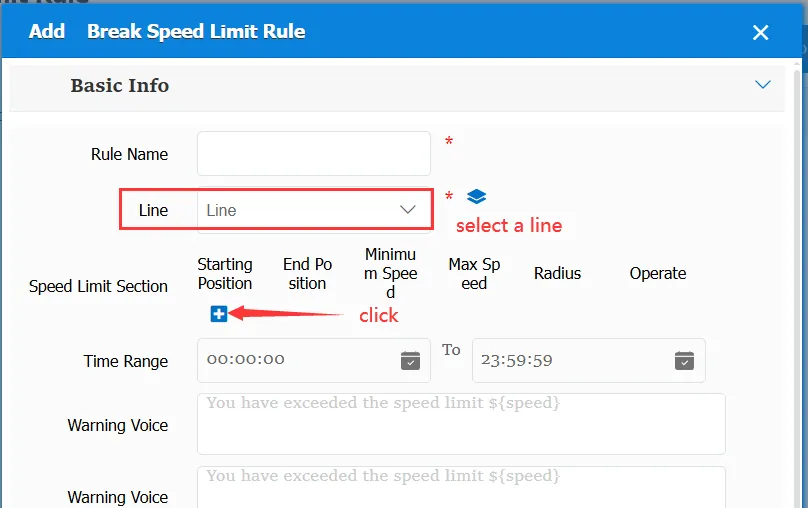

Speed limit section: It can divide a section of road into different sections, and each section can set different speed values and specify different radii
Time Range: the time period when the rule takes effect.
Alarm Voice: the text message sent to the device when the alarm is triggered.
Alert Voice: the text message sent to the device when the alert is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Overspeed duration: refers to the time when the GPS speed is greater than or lower than the maximum/minimum speed. Only when this time is exceeded, the corresponding alarm will be generated.
Priority: There are three options: high, medium and low. It means that the same car has multiple line speed limit rules. According to the high priority, the high priority is judged first. If it is judged that the speed is exceeded, the subsequent rules will not be judged.
Issue speed limit value to vehicle:
No: This item is invalid
Yes: distribute the maximum speed in the overspeed section to the equipment
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform

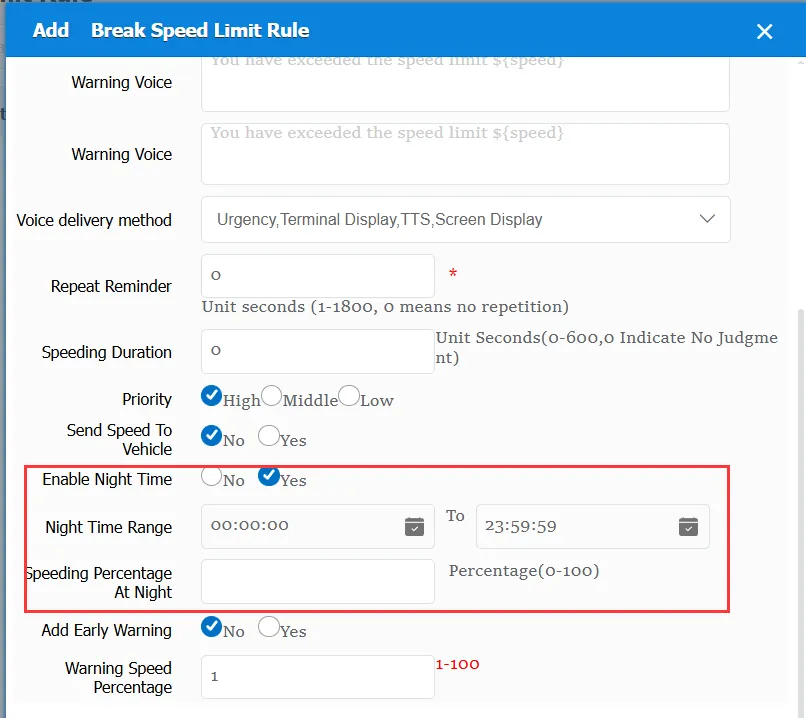

Enable night time selection:
No: This item is invalid
Yes: it is necessary to select the night time range and the night overspeed percentage. For example, the maximum speed is 80 and the night overspeed percentage is 90. At this time, the speed threshold for triggering night overspeed is 80*90% = 72. When the CPS speed of the vehicle exceeds 72 km/h at night, an alarm will be triggered.

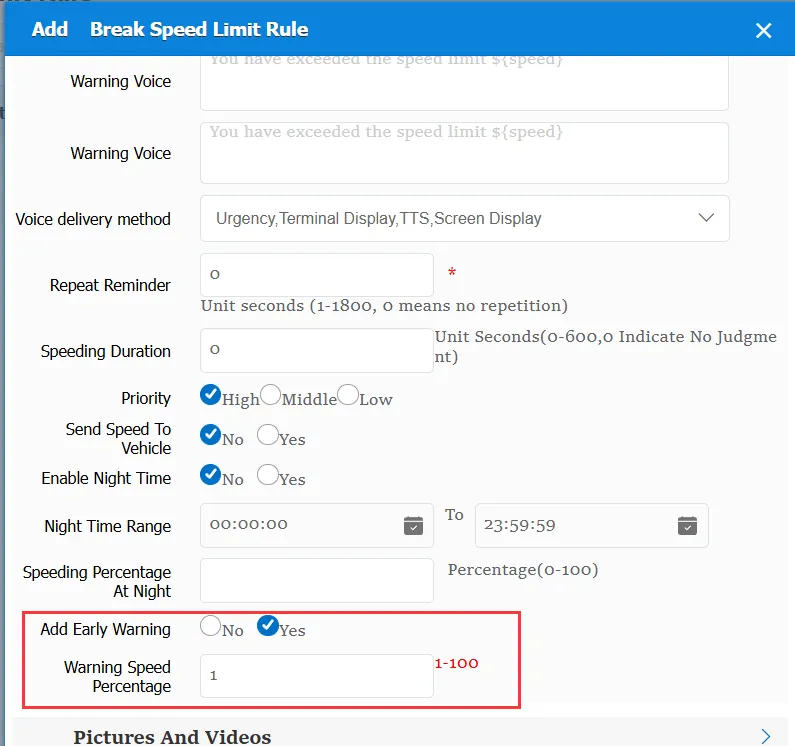

Alert added:
No: This item is invalid
Yes: at this time, you need to fill in an early warning speed percentage, for example, the maximum speed is 80 and the early warning speed percentage is 90. at this time, the speed threshold for triggering the early warning is 80*90% = 72. when the CPS speed of the vehicle exceeds 72 km/h, the early warning will be triggered.
2.2 alarm information display

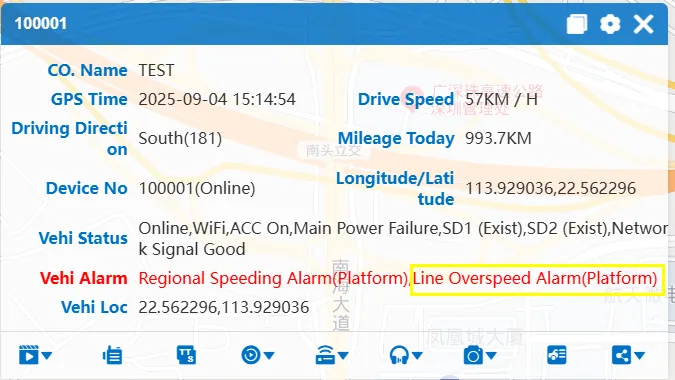

Vehicle bubble box alarm display:

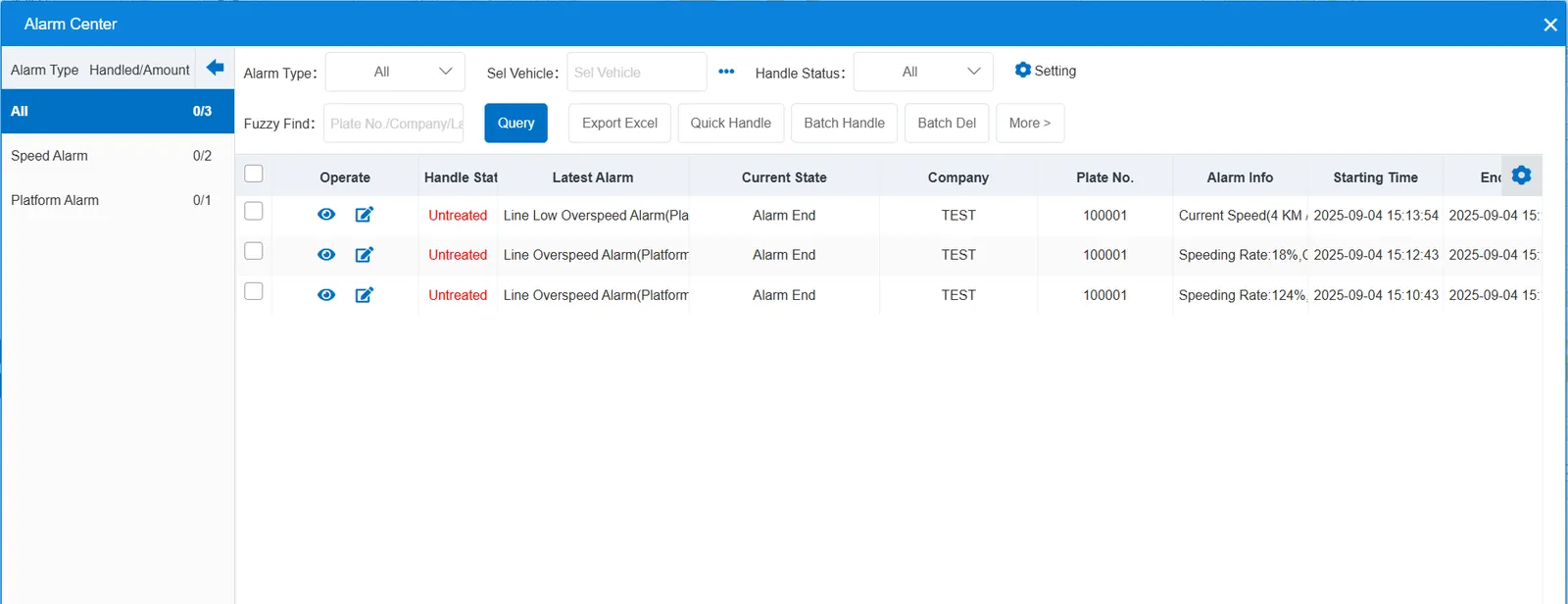

alarm center alarm display:
2.3 alarm information query

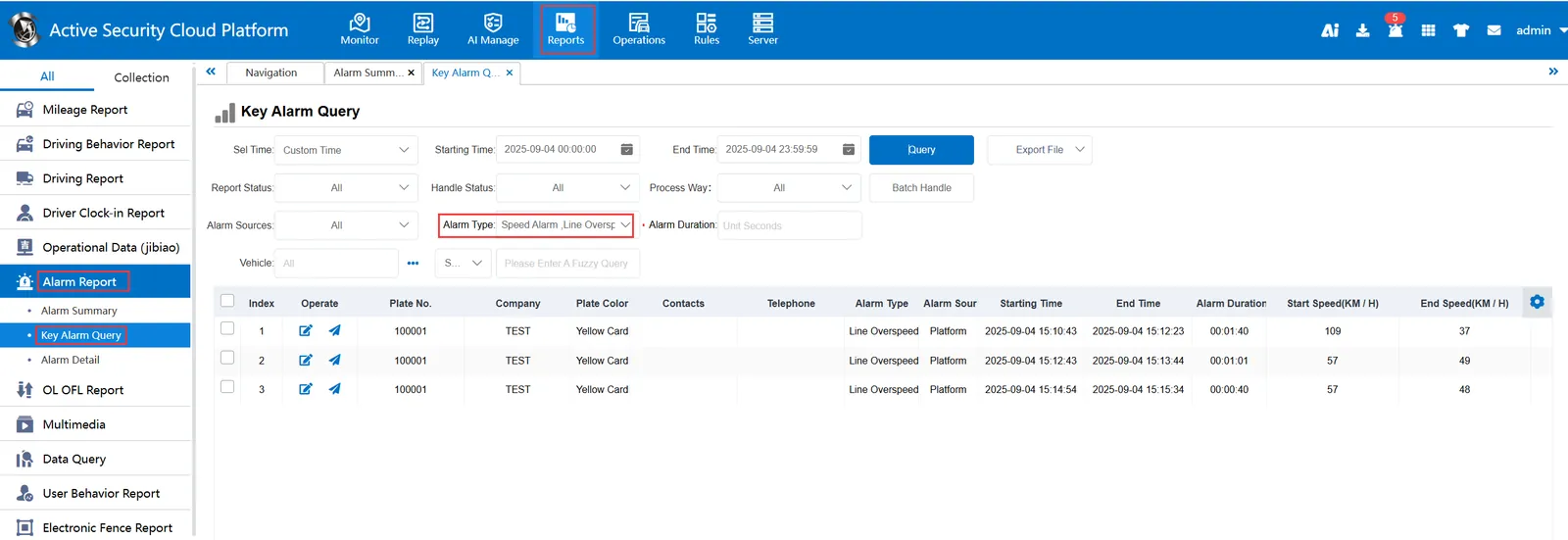

The alarm information is queried in the "Statistical Report"-"Network Joint Control Report"-"Key Alarm Processing" report, and the alarm type is selected as "Line Overspeed Alarm(Platform)"
