1. Function description
** Road overspeed rules, need to introduce the map speed limit interface **:
Description: Integrated Description of Road Class Speed Limit
This rule determines whether the vehicle is speeding according to the road type, road speed limit value returned by the map interface and the rule setting value.
2, operating instructions

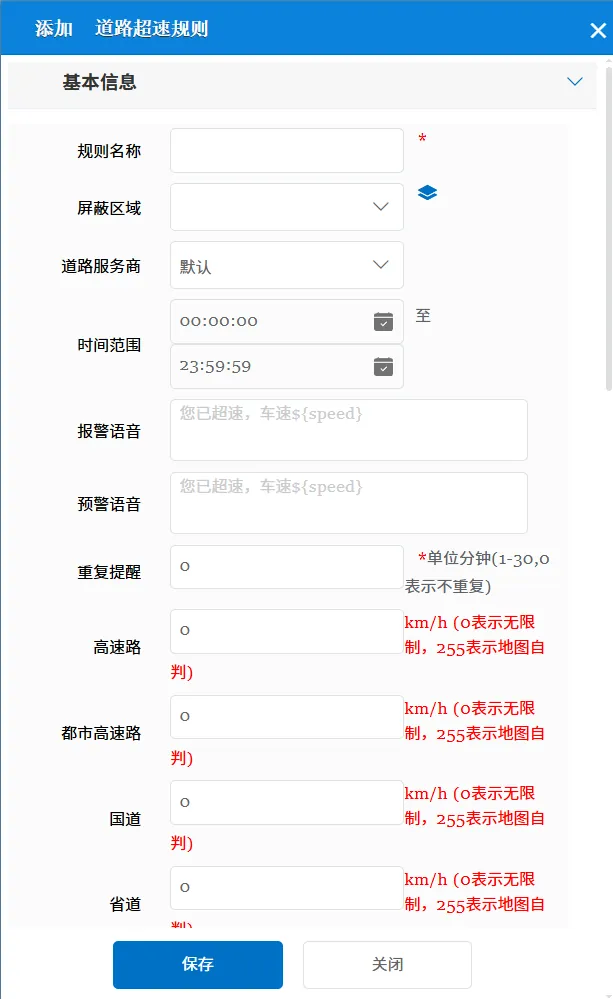

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation

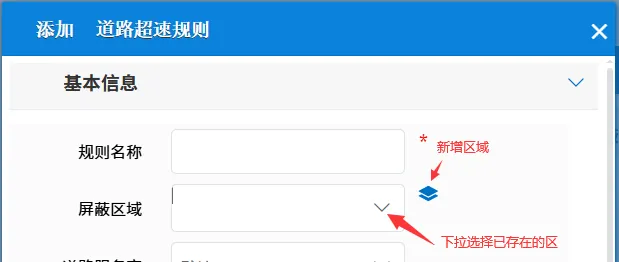

Shielded area: In the designated area, no road- level overspeed alarm is generated

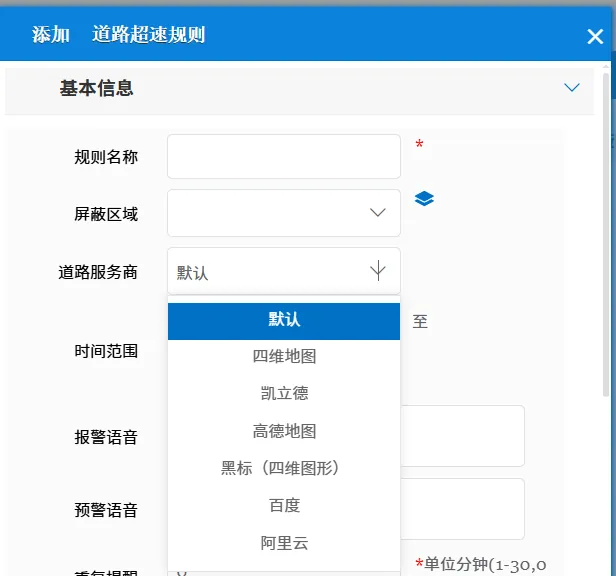

Road Service Provider:
Default: Loads the parameters configured in the libgpstran_rule.ini file configured in the server background CMSServerV6\bin\plugin_gpstran_gpsgateway;

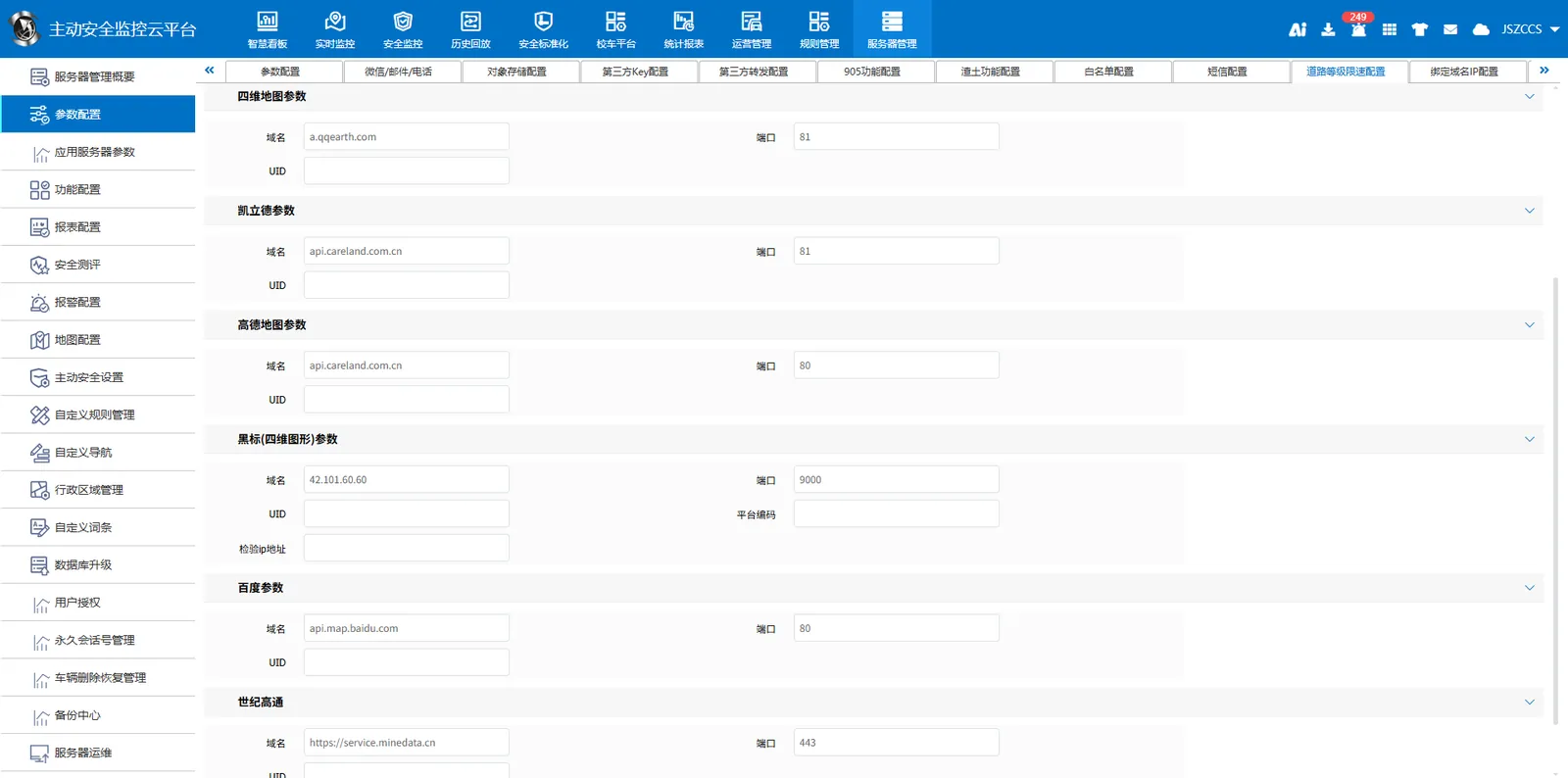

Other types: it is the configuration item in [Server Management]- [Parameter Configuration]- [Road Class Speed Limit Configuration] of the acquisition platform
Time Range: the time period when the rule takes effect.
Alarm Voice: When an alarm is triggered, TTS is sent to the device.
Alert Voice: When an alert is triggered, TTS is sent to the device.
** Repeated Reminder **: When the equipment continuously alarms, an alarm voice will be sent to the equipment at fixed intervals.

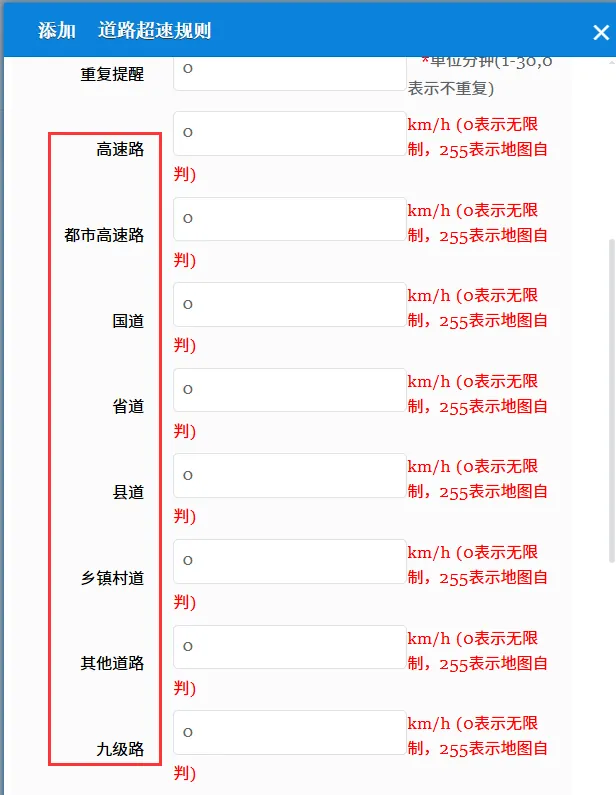

Road Type:
For these road types, if 255 is filled in the back, the speed limit threshold of the corresponding road type is returned by the map dealer;
If the corresponding value (non - 255) is filled in, it is determined according to the road type (RoadType) returned by the map interface, and the speed limit value of which road type is taken
Duration: After the overspeed has been determined, the duration of the overspeed exceeds the specified value before an alarm is generated.
Alert Interval: The interval between two alerts when an alert is generated. If it is set to 30, the second alert will not be generated within 30 seconds after the first alert is generated.

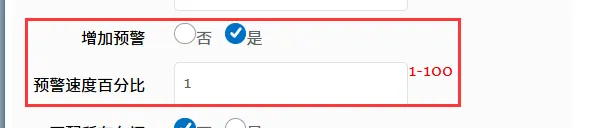

Alert added:
No: This item is invalid
Yes: an early warning speed percentage needs to be filled in at this time, for example, the speed threshold is 80 and the early warning speed percentage is 90. at this time, the speed threshold for triggering the early warning is 80*90% = 72. when the GPS speed of the vehicle exceeds 72 km/h, the early warning will be triggered.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display

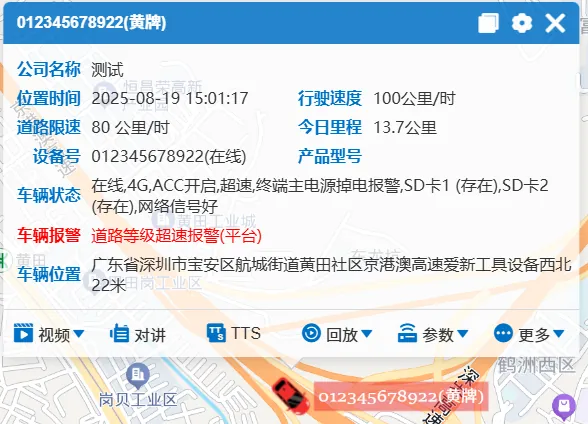

Vehicle bubble box alarm display:

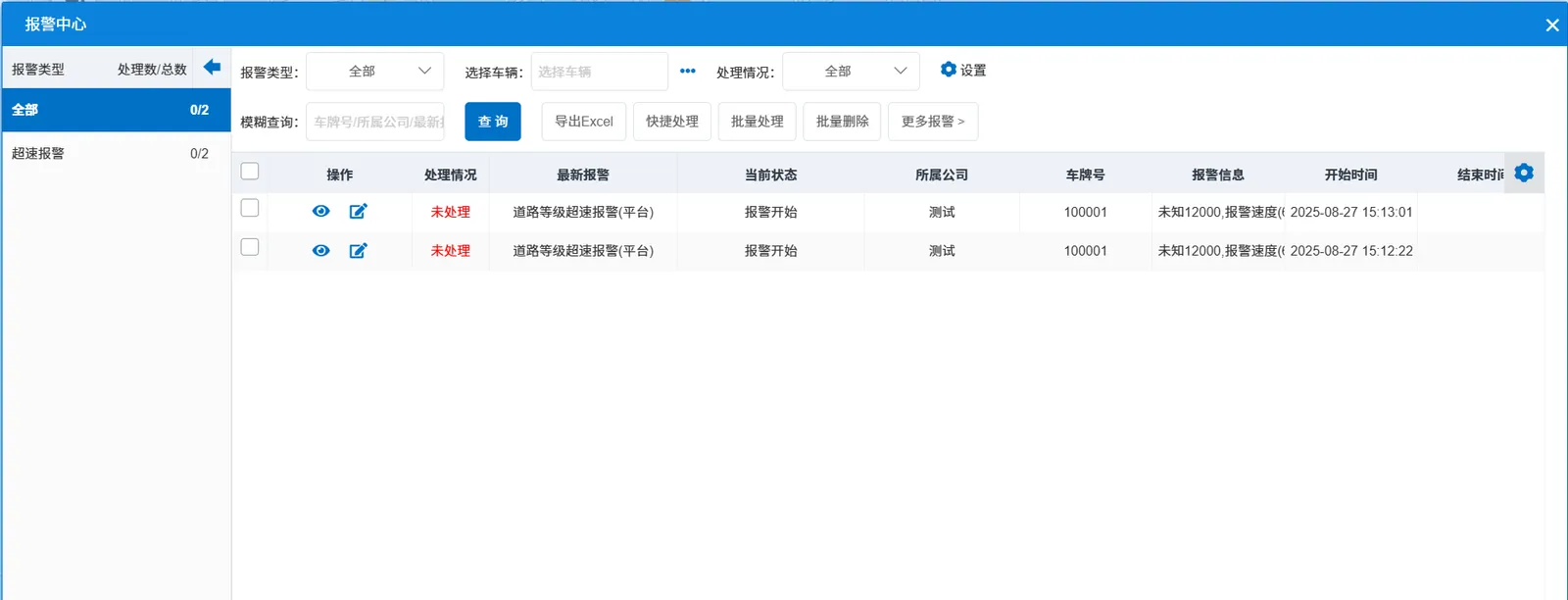

alarm center alarm display:
2.3 alarm information query

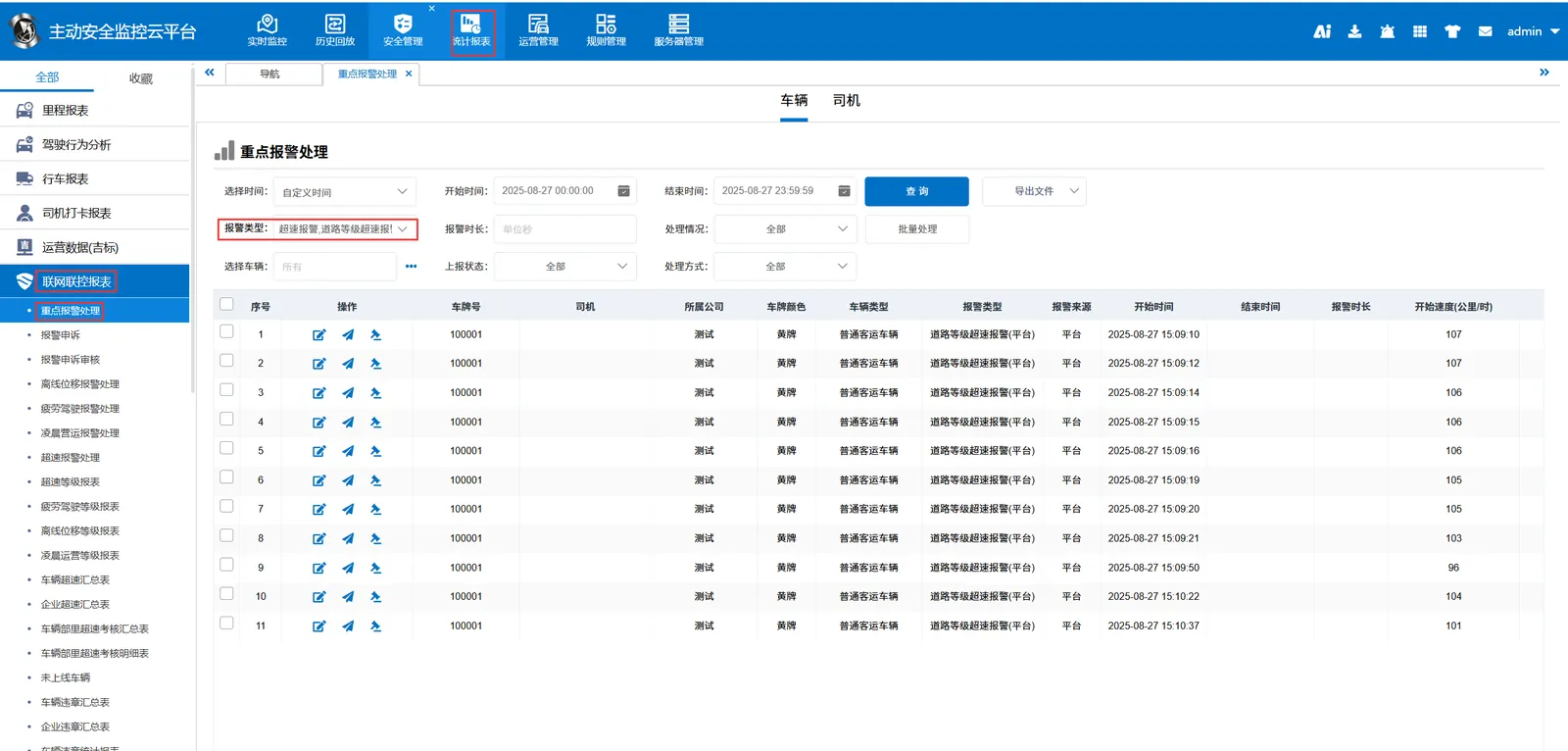

The alarm information is queried in the report of "Statistics Report"- "Network Joint Control Report"- "Key Alarm Processing", and the alarm type is "Road Level Overspeed Alarm (Platform)"
