1. Function description
According to the relevant requirements, the designated vehicle in the designated area, the time is prohibited
2, operating instructions

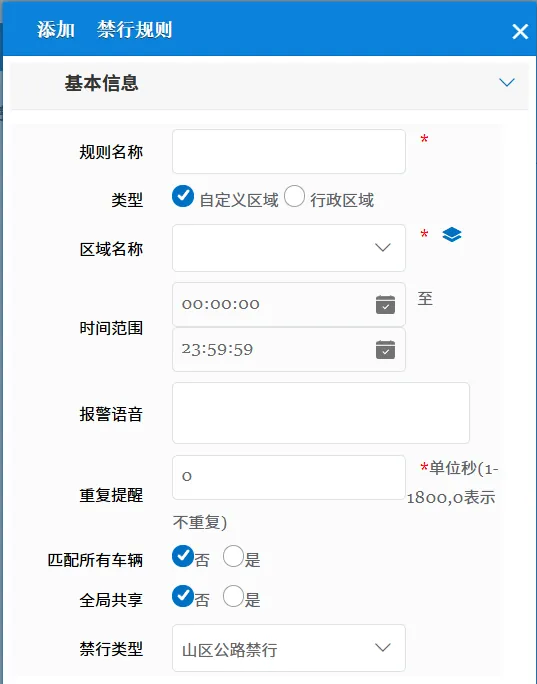

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Type:

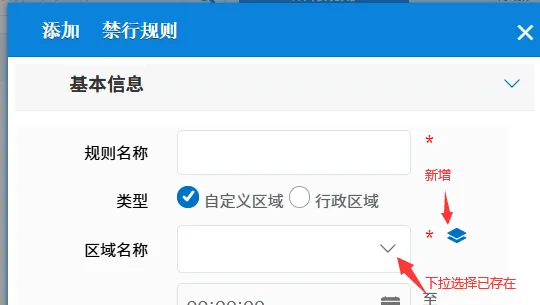

Custom type: custom area, which is manually added on the platform electronic map.

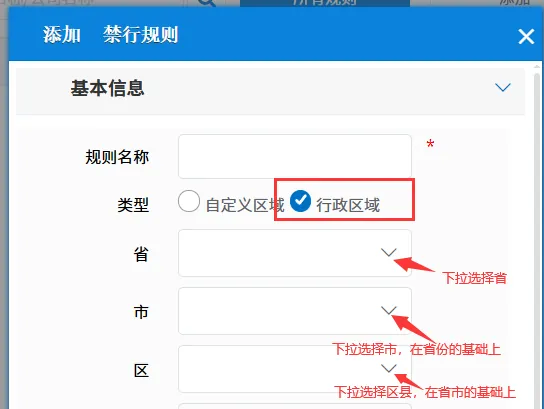

Administrative region: the administrative region shall prevail, only the existing administrative region can be selected.
Time Range: the time period when the rule takes effect.
Alarm Voice: the text message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
Forbidden Type: Optional: Mountain Highway Forbidden (Alarm Name: Mountain Highway Forbidden) or Passenger Transport Forbidden (Alarm Name: Passenger Vehicle Forbidden); If the selection is different, related items in the rules will be hidden or displayed.
2.2 alarm information display
Vehicle bubble box alarm display:
This alarm is not displayed in the vehicle bubble box

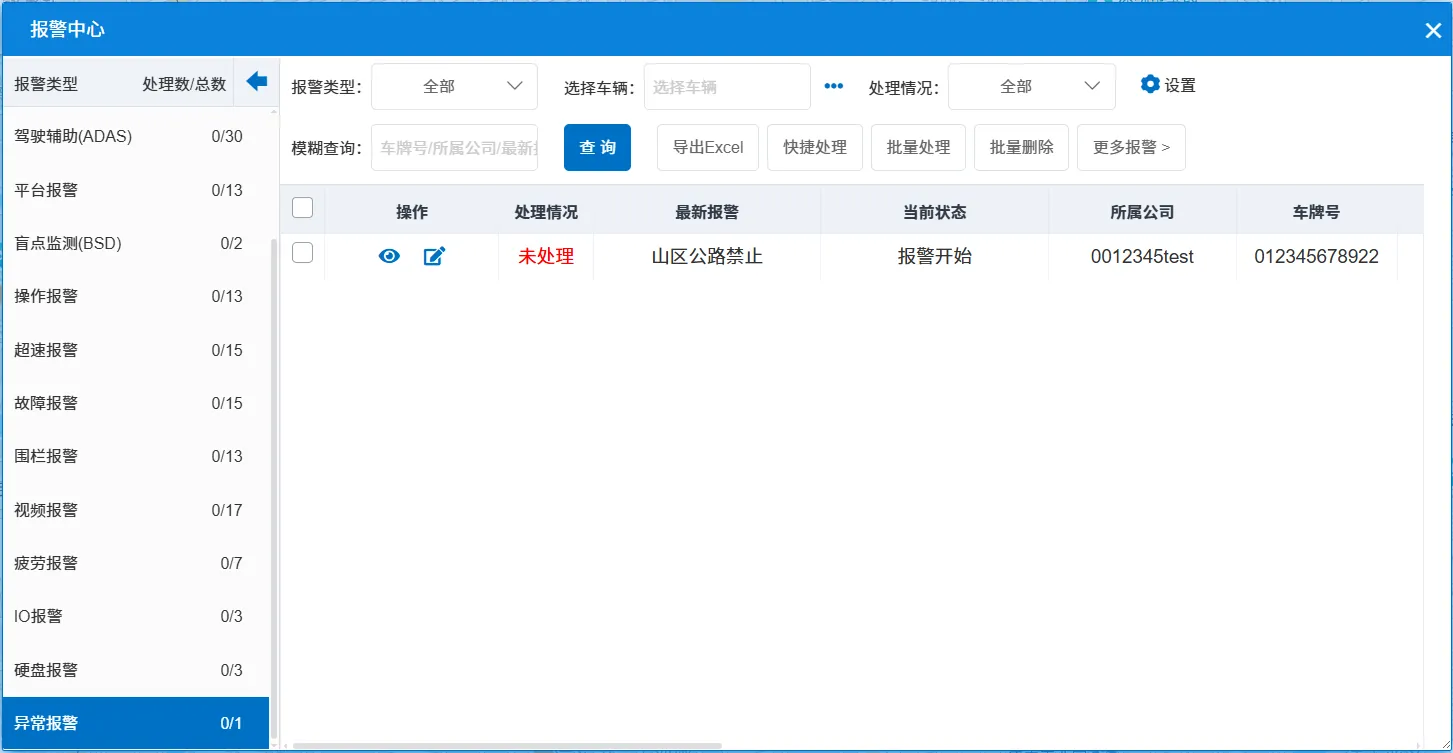

alarm center alarm display:

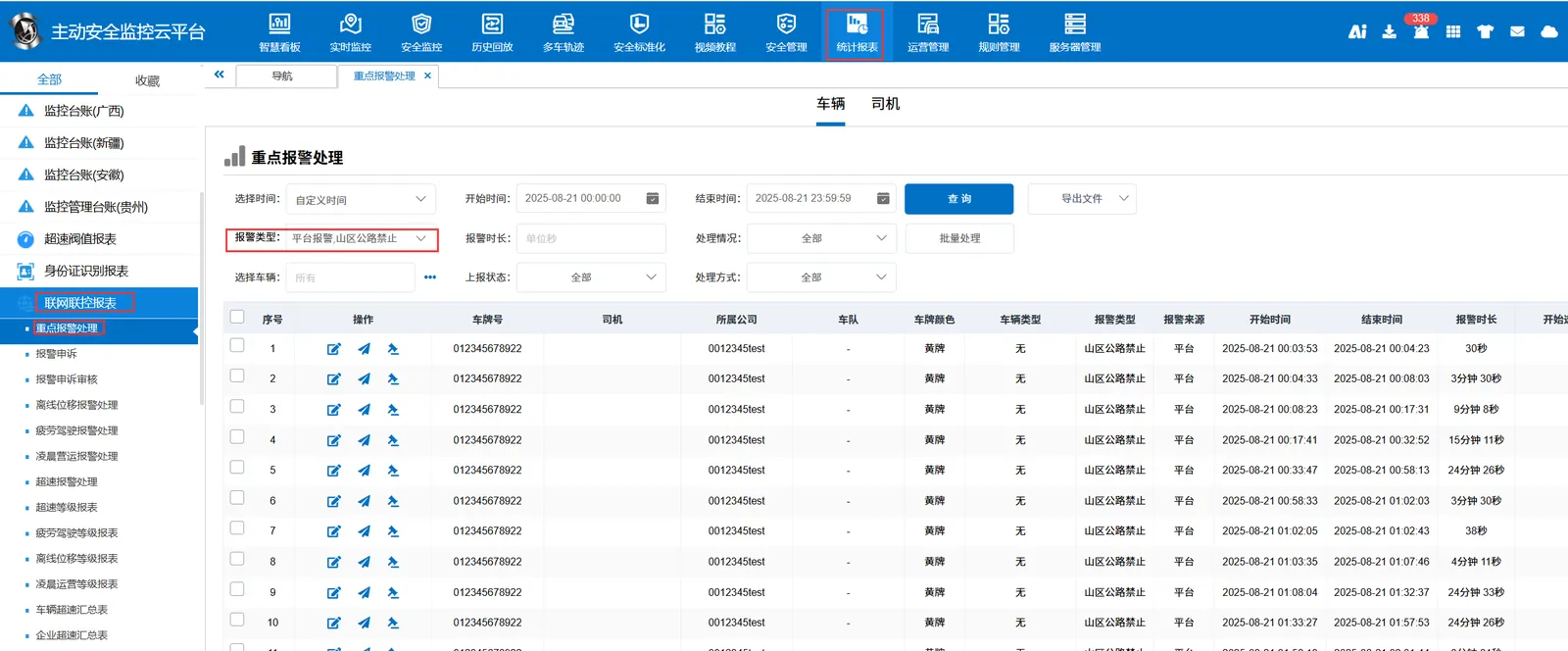

2.3 alarm information query
The alarm information is queried in the report of "Statistics Report"- "Network Joint Control Report"- "Key Alarm Processing", and the alarm type is "Mountain Highway Forbidden"
