1. Function description
It is stipulated that vehicles are prohibited from entering the designated area, and the prohibition rules can be used; once the vehicle violates the regulations, the corresponding alarm will be generated, and the driver will be prompted by the alarm voice.
2. operating instructions

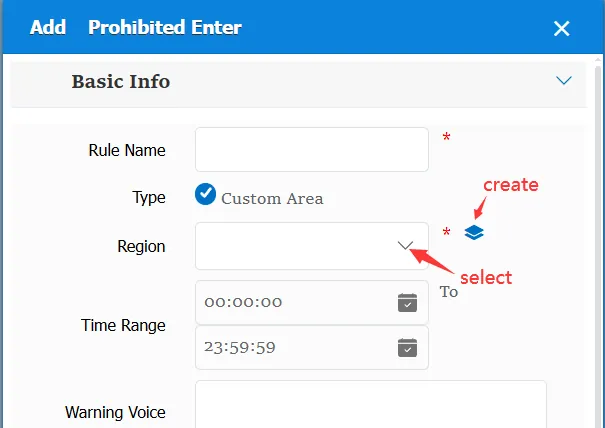

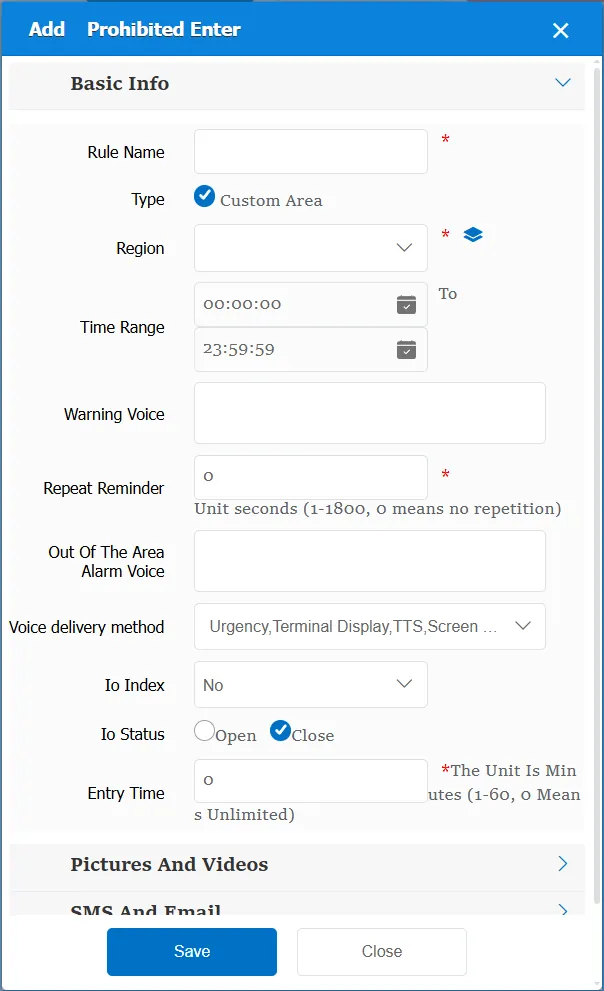

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Type:
Custom type: custom area, which is manually added on the platform electronic map.
Time Range: the time period when the rule takes effect.
Alarm Voice: the message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Out- of- area alarm voice: send a message to the vehicle when the vehicle is out of the prohibited entry and exit.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
IO Serial Number:
None: This item has no effect
IO1 ~ IO6: If the corresponding IO is selected, the IO state needs to be selected. When the vehicle is in the specified area and the corresponding IO meets this state, an alarm will be generated.
Open lid/lift status:
Open cover: when the vehicle is in the designated area and there is an open cover state, an alarm will be generated.
Lifting: When the vehicle is in the designated area and there is a lifting state, an alarm will be generated.
None: Invalid item
Entry Duration:
1. On the basis of the trigger rules, verify the time.
2. If the configuration is 0, an alarm will be generated directly without checking the time.
3. If the configuration is not 0, the time will be recorded for the first time. When the entry time is greater than or equal to the configuration value, the alarm will be triggered
4. If you leave the area without alarm, the entry time will be cleared and wait for the next entry area
2.2 alarm information display

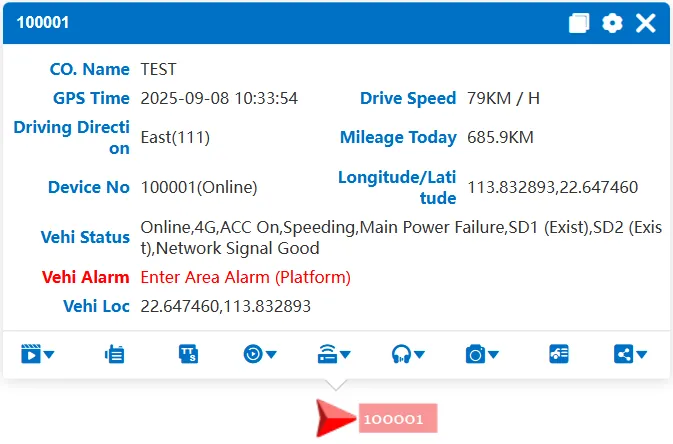

Vehicle bubble box alarm display:

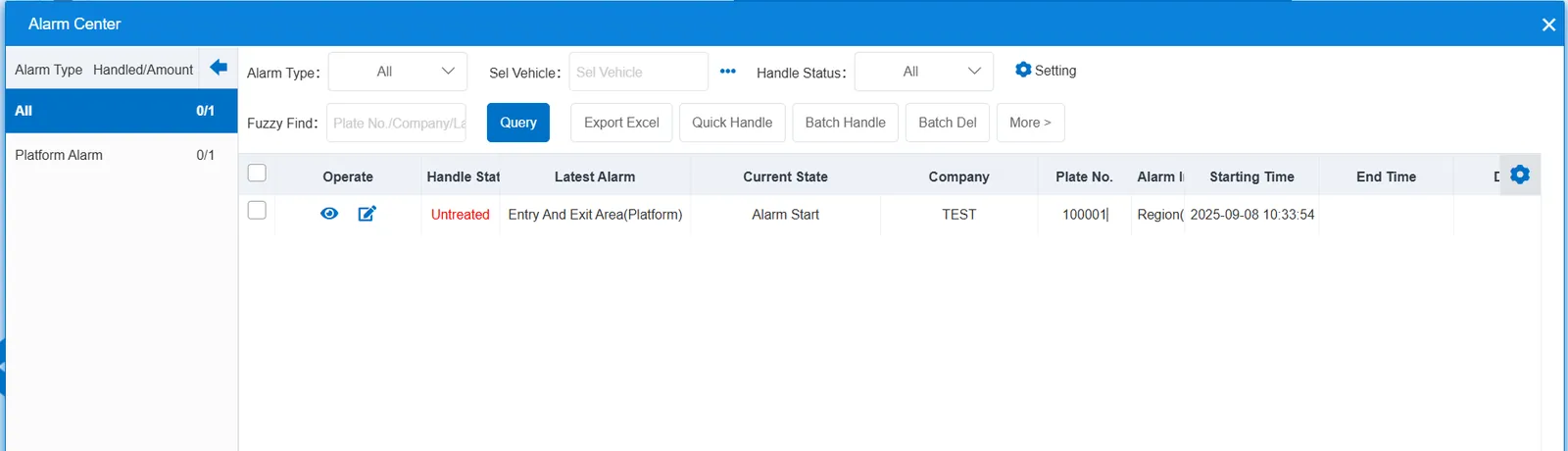

alarm center alarm display:
2.3 alarm information query

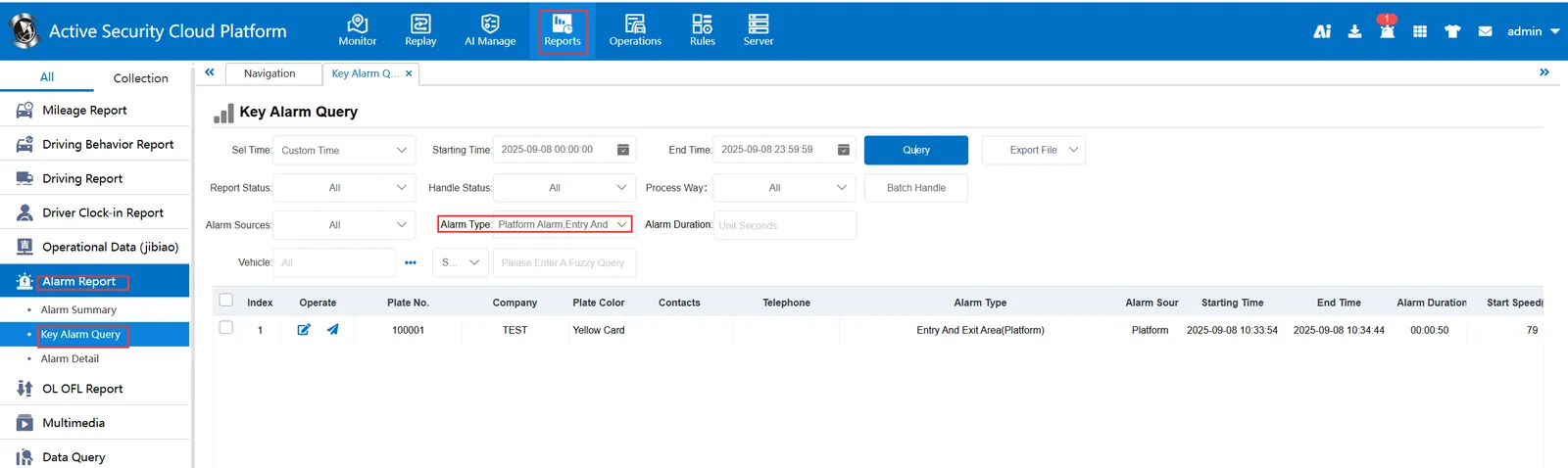

When querying alarms, you can select "Entry And Exit Area(Platform)" for "alarm type" in the "Reports"- "Alarm Report"- "Key Alarm Query" report
