1. Function description
1), rules can set the start area and end area
2) When the car leaves the starting point area, you can set the driving time. Within the set driving time, if the end point area is not reached, an alarm will be triggered
2. operating instructions

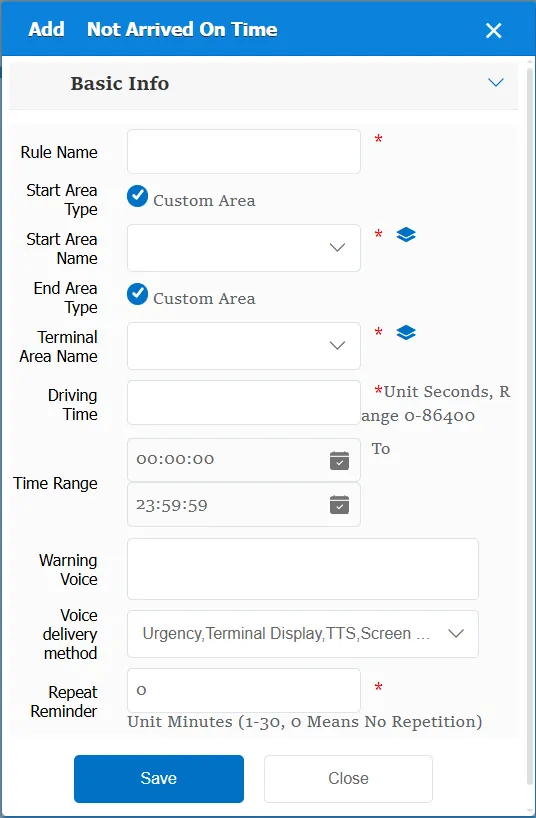

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Start Zone Type:
Custom Area: Select or add a custom area
End Zone Type:
Custom Area: Select or add a custom area
Administrative region: only the current administrative region can be selected, with the administrative region as the selected range
Driving duration: The estimated duration from the start point to the end point
Time Range: the time period when the rule takes effect.
Alarm Voice: the message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display
Vehicle bubble box alarm display:
The alarm is in the vehicle bubble box and is not displayed

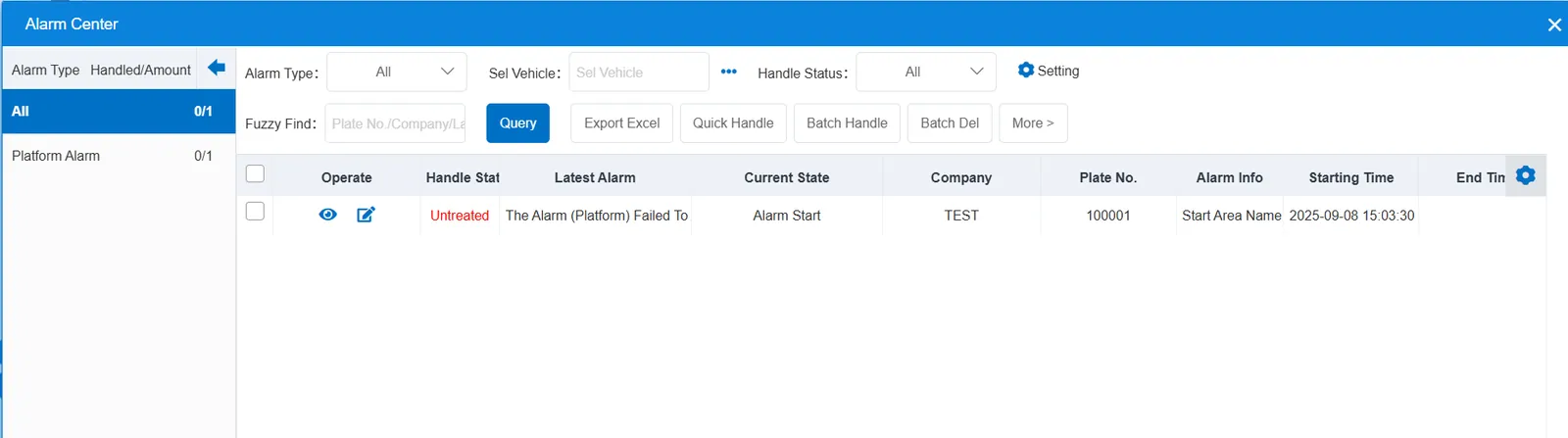

alarm center alarm display:
2.3 alarm information query

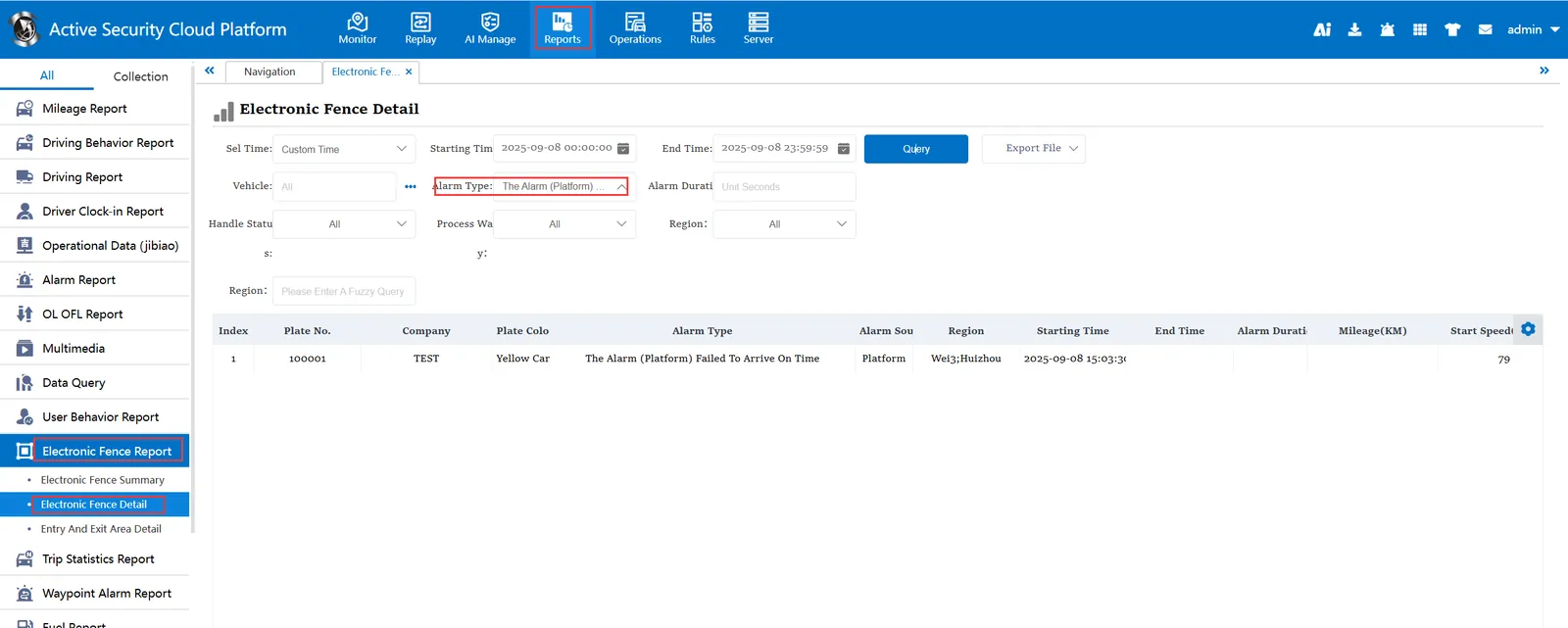

The alarm information is queried in the report of "Statistics Report"-"Electronic Fence Report"-"Electronic Fence Query". The alarm type is "Not Arrived on Time (Platform)"
