1. Function description
The platform has the function of collecting statistics on the route points of vehicles, supporting statistics based on transportation enterprises, vehicles, and vehicle route sequence.
2. operating instructions

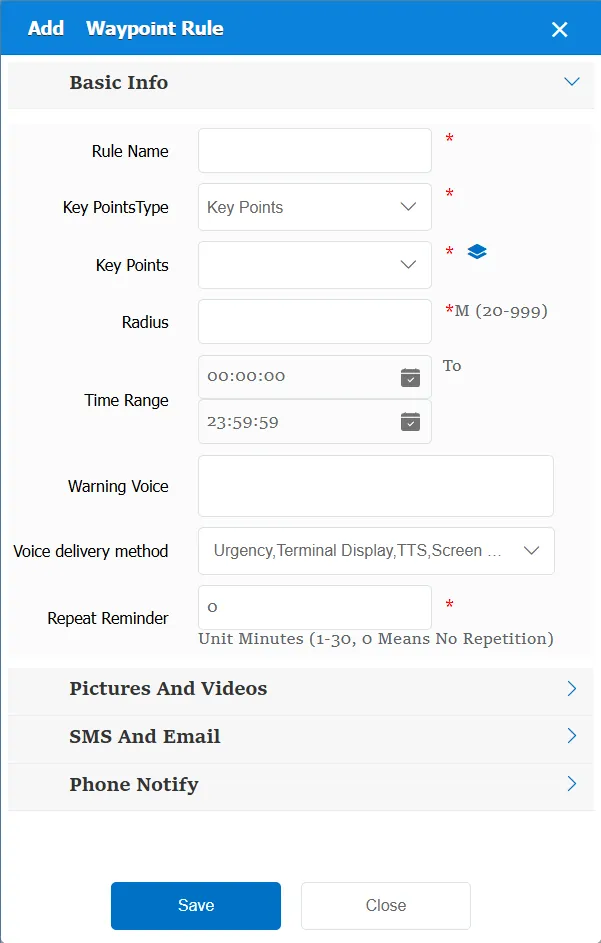

2.1 basic information
Rule Name: Customize, customize the name according to the actual situation
Type: only key points can be selected. Existing or newly added key points can be selected.
Radius: The effective radius of the key point, with the specified point as the center of the circle and the specified radius to form a circle, and the effective area is within the circle
Time Range: the time period when the rule takes effect.
Alarm Voice: the message sent to the device when the alarm is triggered.
Repeated Reminder: During the alarm continuation phase, an alarm voice is sent to the device every specified time.
Match all vehicles:
No: Only valid for vehicles assigned by this rule
Yes: this rule is effective for all vehicles of the company.
Global Share:
No: Only visible to this company
Yes: visible to all companies on the platform
2.2 alarm information display
Vehicle bubble box alarm display:
The alarm is in the vehicle bubble box and is not displayed

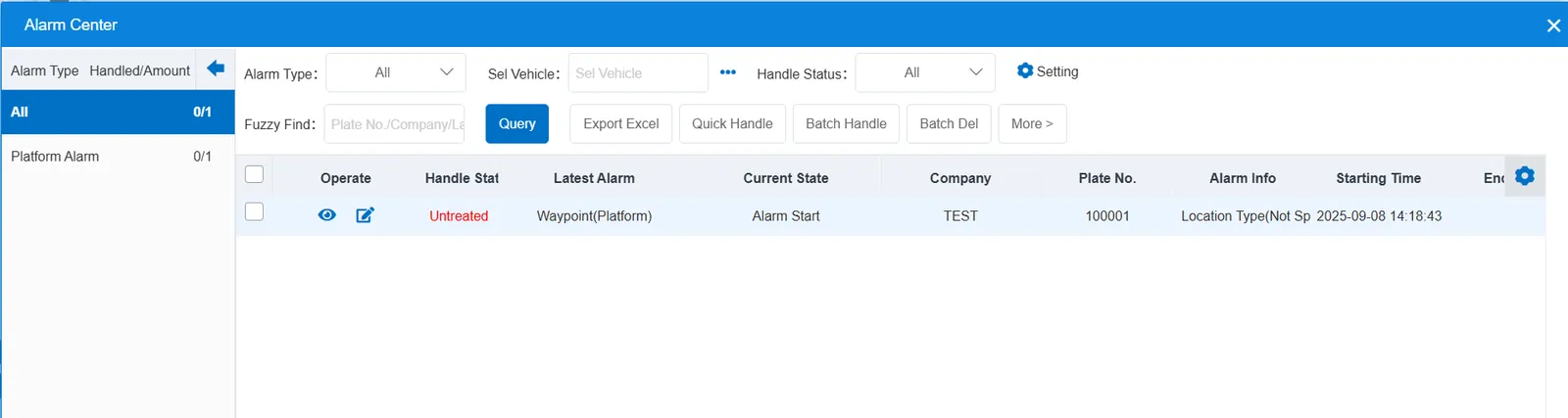

alarm center alarm display:
2.3 alarm information query

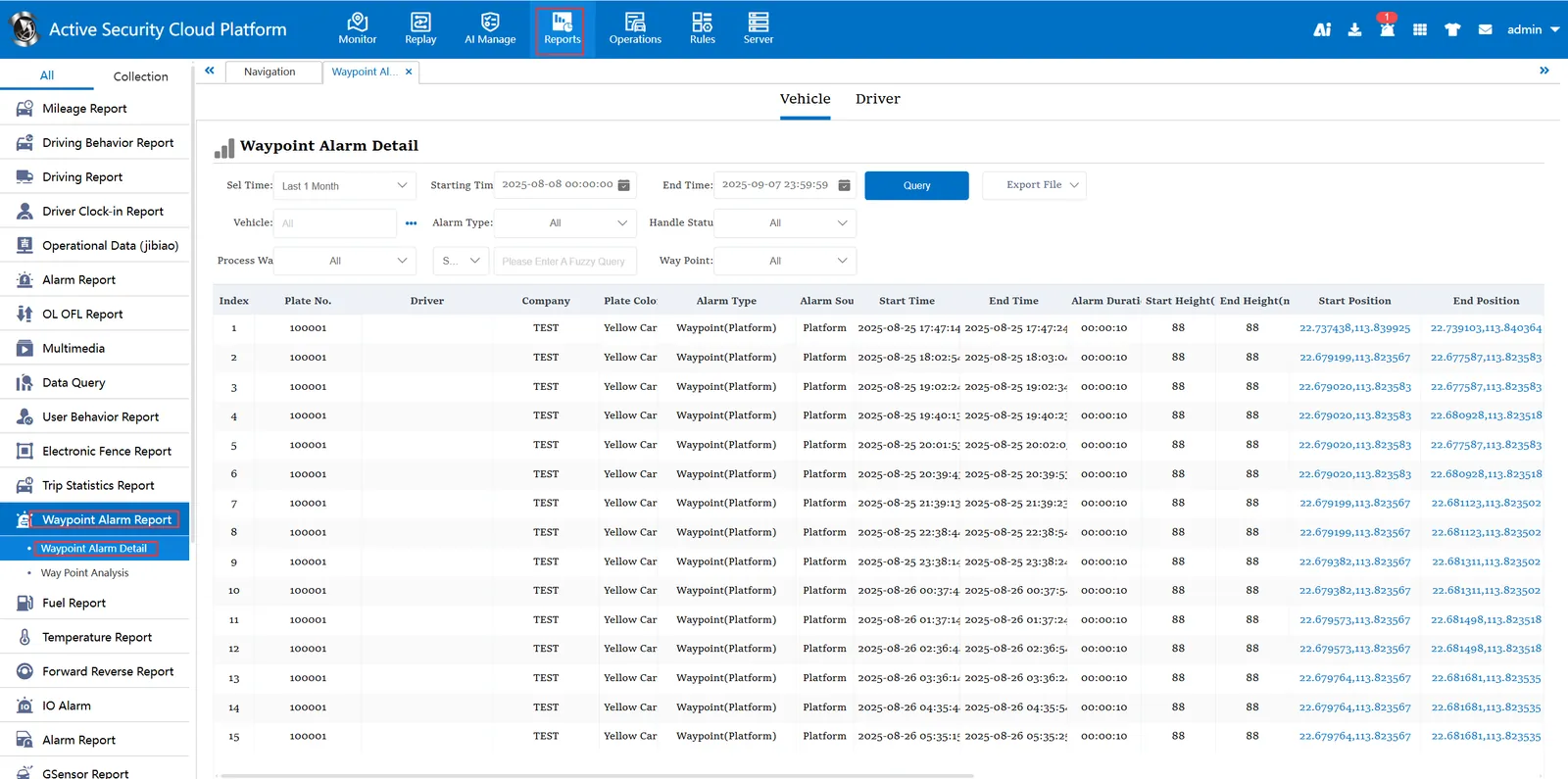

Alarm information is queried in the "Statistics Report"-"Path Point Alarm Table"-"Path Point Alarm Details" report.

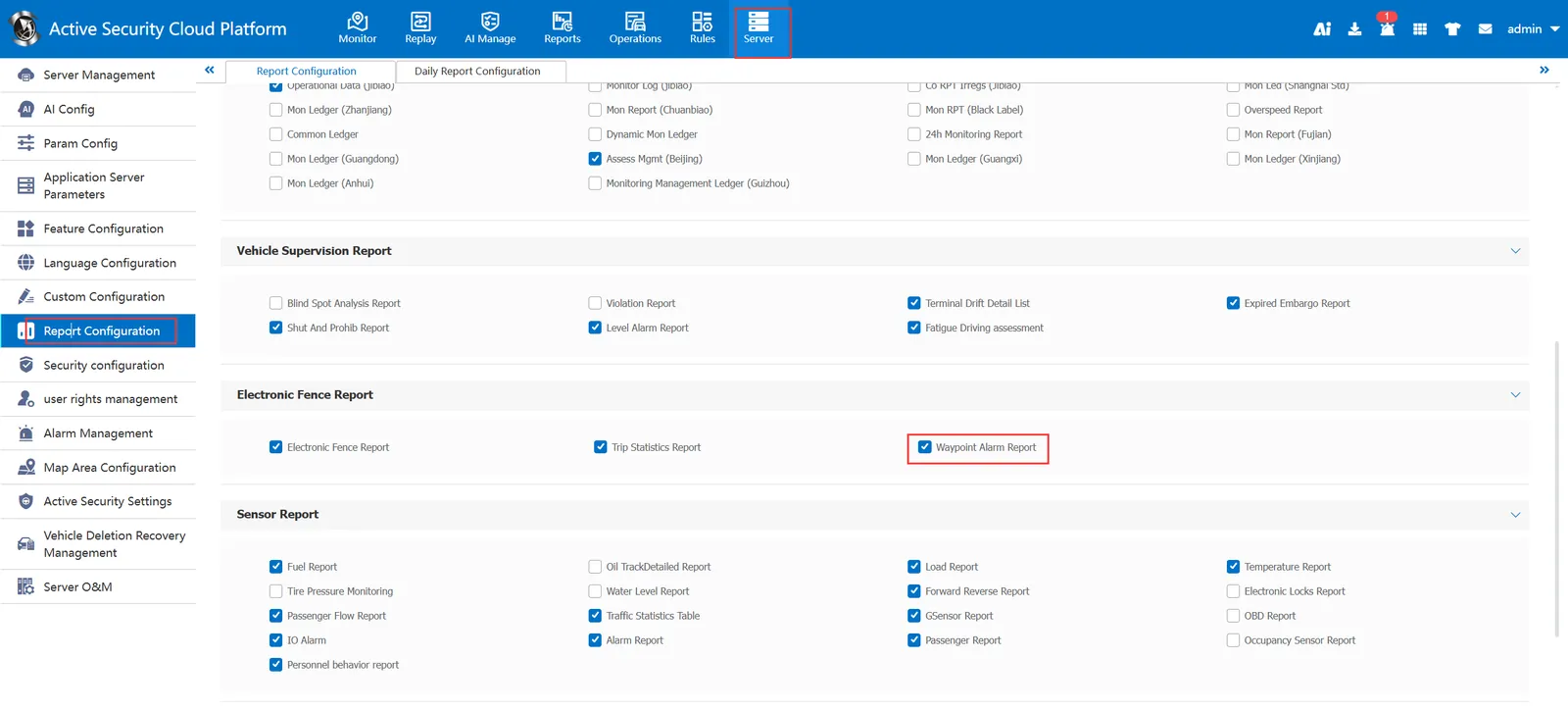

Note: This report can be enabled in "Server Management"-"Report Configuration"-"Electronic Fence Report"
