1. Function description
The overspeed parameters of the equipment end are set remotely through the platform. When the vehicle speed reaches the trigger condition, the equipment end generates an overspeed warning or an overspeed alarm.
2. operating instructions

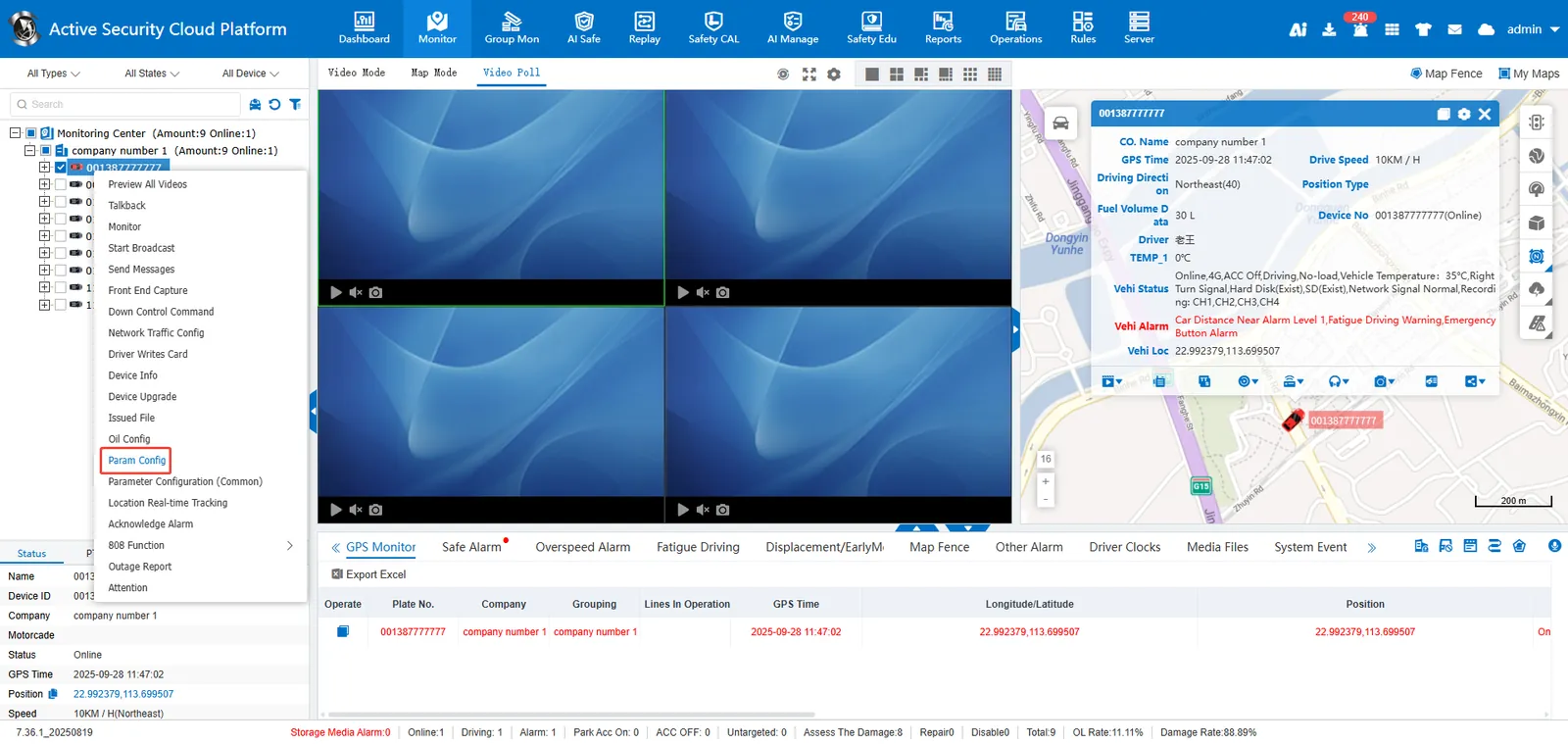

2.1 real- time monitoring> select the vehicle in the vehicle monitoring tree> right click

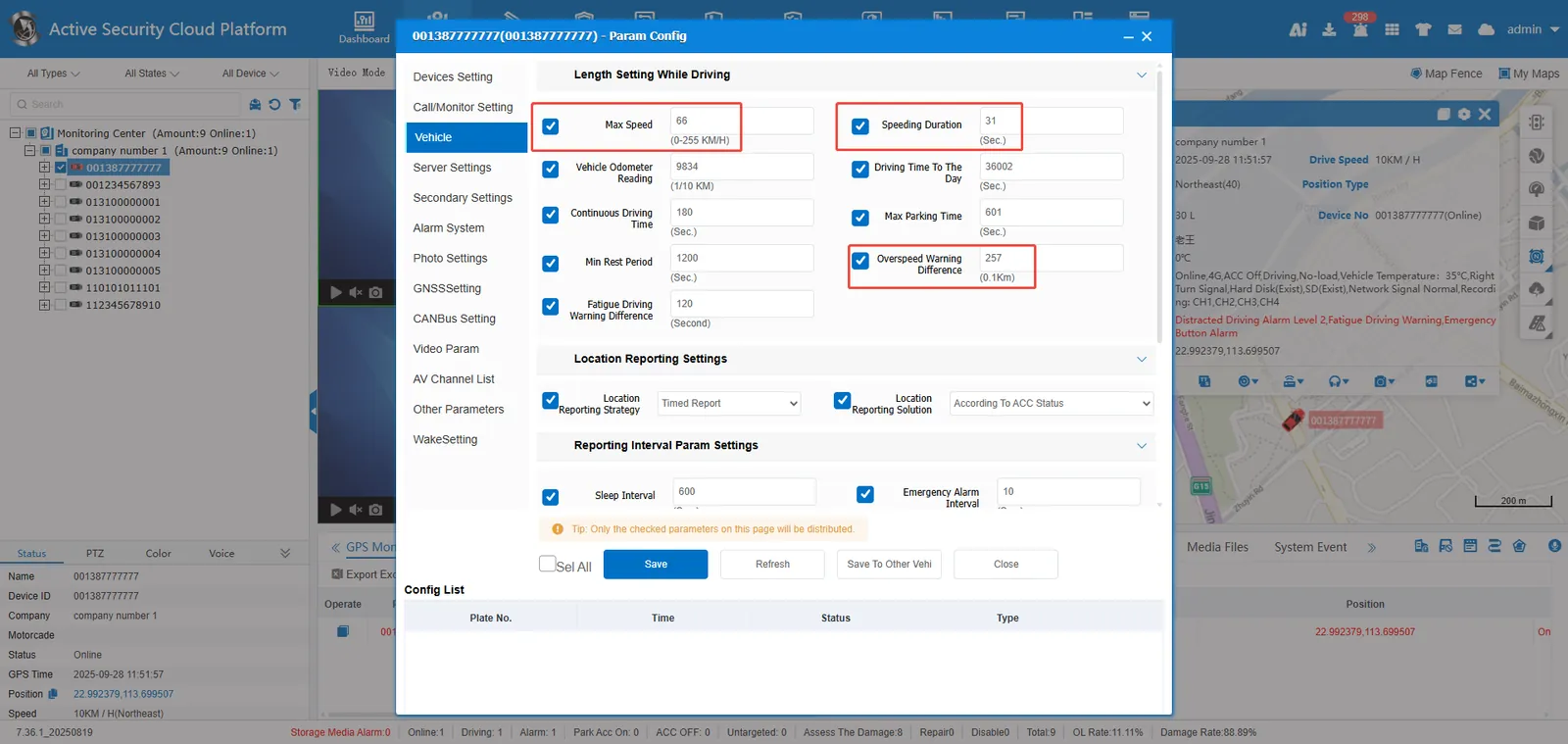

2.2 parameter configuration> vehicle settings> driving duration settings, modify the speed- related parameter values, and save.
Parameter description:
Maximum speed: The speed threshold that triggers the overspeed alarm;
Overspeed duration: Threshold of duration of overspeed to trigger overspeed alarm;
Overspeed Warning Difference Value: Maximum Speed- Overspeed Warning Difference Value/10 = Overspeed Warning Speed Threshold.
**When the vehicle speed exceeds the" overspeed warning speed threshold ", the device will trigger the overspeed warning;
When the vehicle speed exceeds the "maximum speed" and the duration exceeds the "overspeed duration", the device will trigger an overspeed alarm. **
