1. function description

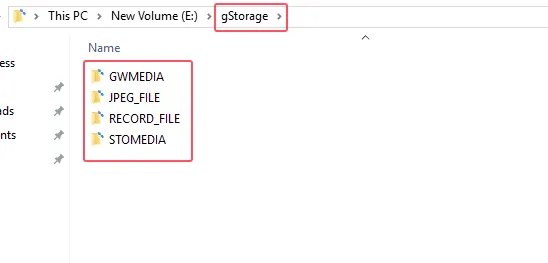

Server Directory Description
2. operating instructions
2.1 GWMEDIA
The directory where the gateway server stores pictures, audio and video, and the pictures, audio and video reported by the storage device through the signaling channel (as long as it is a 808 protocol device)
2.1.1 Through the following menu, the pictures and audio and video data uploaded by the device

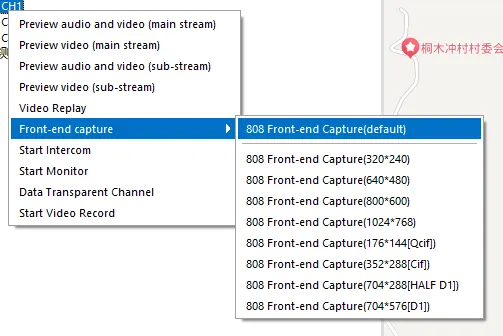

2.1.2 Image data generated by the front- end capture menu of the 2.808 protocol device
2.2 MEDMEDIA
Streaming media server stores client snap pictures
2.2.1 Images captured by the client front end (except for 808 protocols)
2.3 STOMEDIA
2.3.1 Streaming media server, client preview audio and video, playback of data

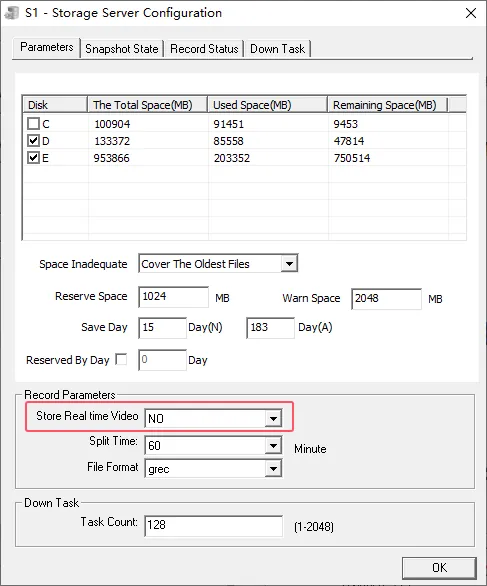

Configure to store real- time video. When the client previews real- time audio and video and plays back, the streaming media server will store video files。
2.3.2 The storage server stores pictures, audio and video data,
a. The pictures, audio and video data stored in the gateway will be downloaded to this directory.
b. Timing snapshot images of rule management and images triggered by rule alarms
2.4 JPEG_FILE
- Storage Server
a. Store image of active security alarm attachment
b. Create a picture of the new download task
2.5 RECORD_FILE
- Storage Server
