1. Functional Description
CMSServerV6 use ports; server software port descriptions
2. Port Details
[CMSServerV6 use port]
6601-6612(tcp+udp)
6617(tcp)
6631-6635(tcp)
2121-2162(tcp)
20000-21000(tcp+udp)(this port needs to be opened when accessing 28181 devices to watch videos, and does not need to be opened when not accessing)
30000-31000(tcp+udp)(this port needs to be opened when accessing 28181 devices to video download, and does not need to be opened when not accessing)
WEB port default 80/8080/88/8088 optional(tcp), (open according to actual selection, or customize and modify the WEB port)
- http port list:
| Port | Protocol | Purpose |
|---|---|---|
| 6601 | tcp | Geocode Location Resolution Service |
| 6602 | tcp | Streaming video(1078 main stream) |
| 6603 | tcp udp | Verify that the logon information is valid |
| 6604 | tcp udp | streaming video |
| 6605 | tcp udp | verify the client logon request; |
| 6607 | tcp udp | gateway service |
| 6608 | tcp udp | device report |
| 6609 | tcp udp | WIFI download |
| 6610 | tcp | WIFI download |
| 6611 | tcp udp | attachment storage service |
| 6612 | tcp | Attachment Storage Service |
| 6617 | tcp | 809 playback video |
| 6631 | tcp | 1078 media stream(1078 sub streams) |
| 6632 | tcp | 1078 intercom |
| 6633 | tcp | 1078 monitor, broadcast |
| 6634 | tcp | 1078 video playback |
| 6635 | tcp | 1078 pass- through |
| 2121- 2162 | tcp | FTP file upload |
| web(80/8080/88/8088 optional) | tcp | web services |

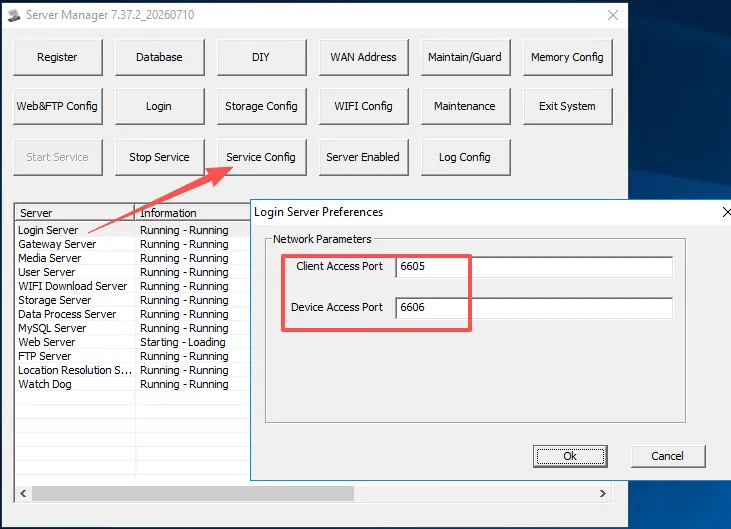

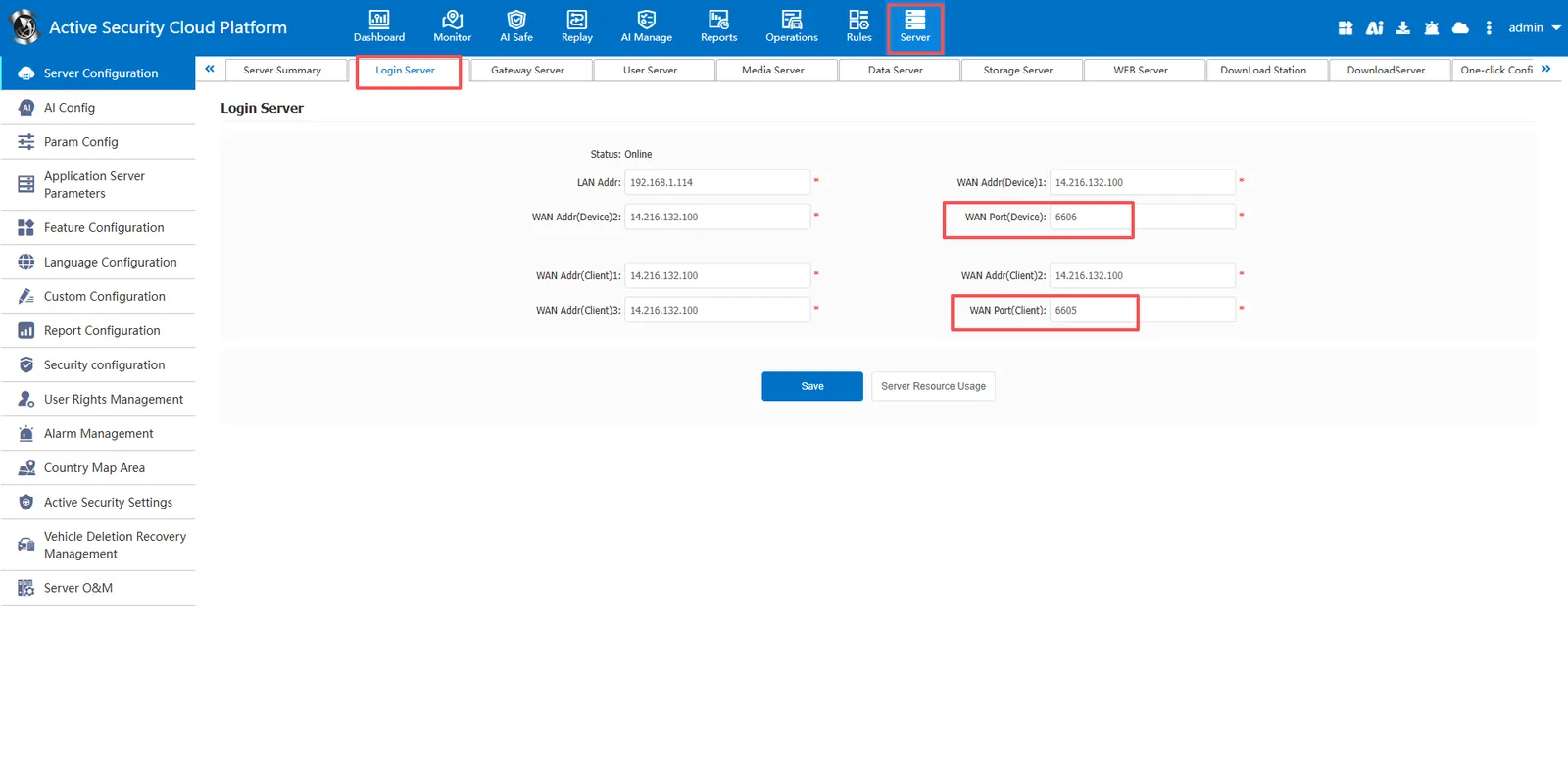

2.1 Login Server
a) Port: 6605(TCP+UDP)
b) Functions: server version control, vehicle authorization control, and verification of client login requests

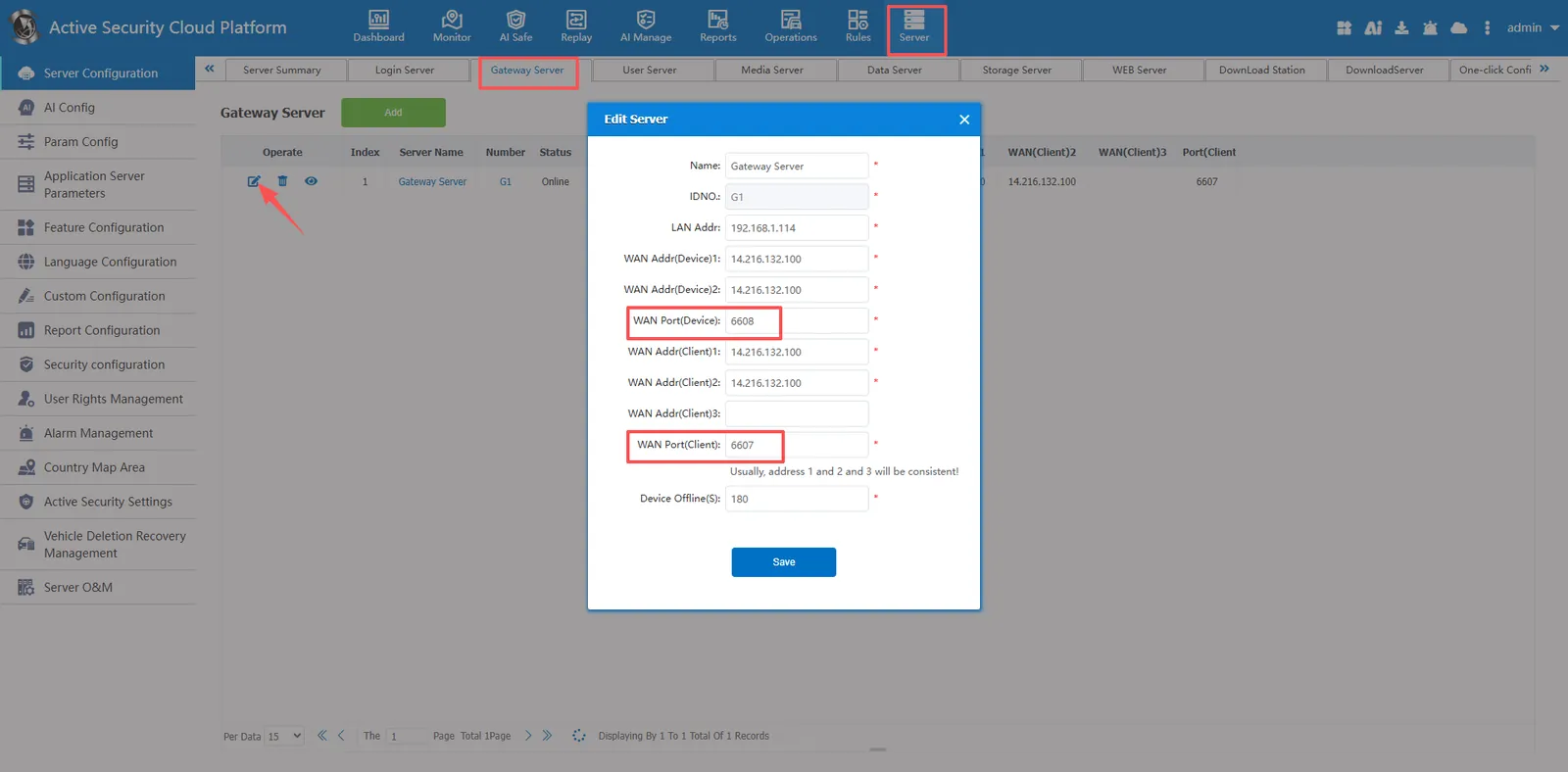

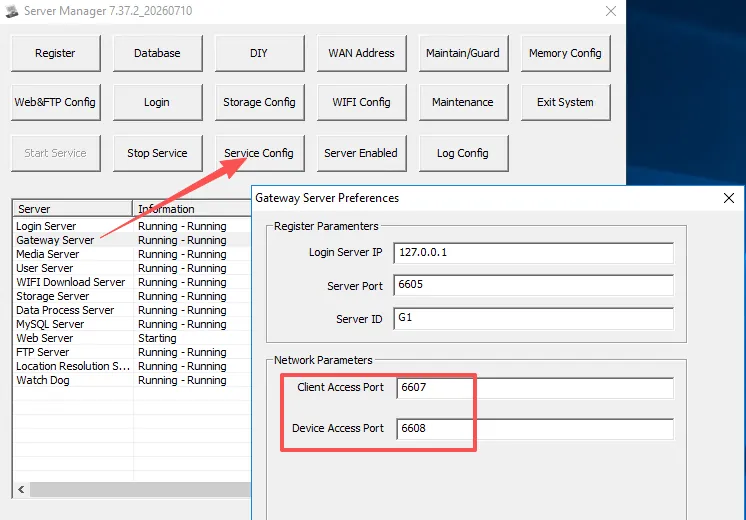

2.2 Gateway Server
a) Port: 6607, 6608(TCP+UDP)
b) Function: equipment access and information exchange

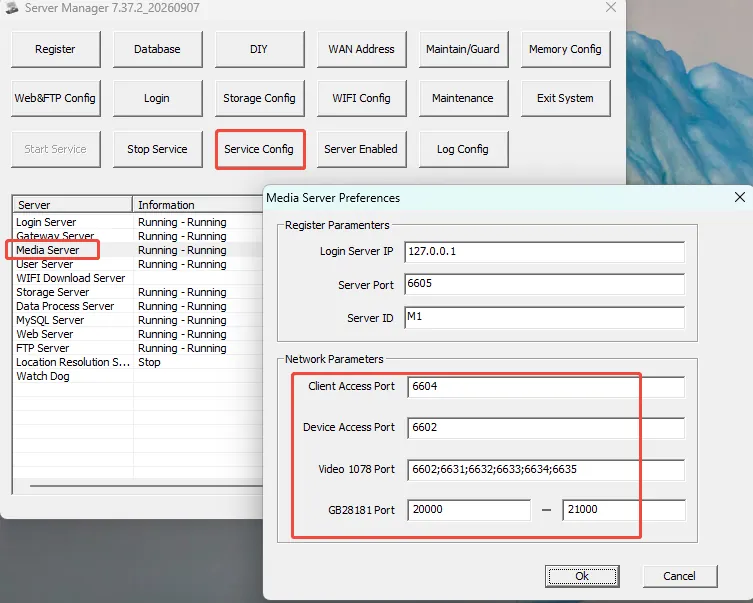

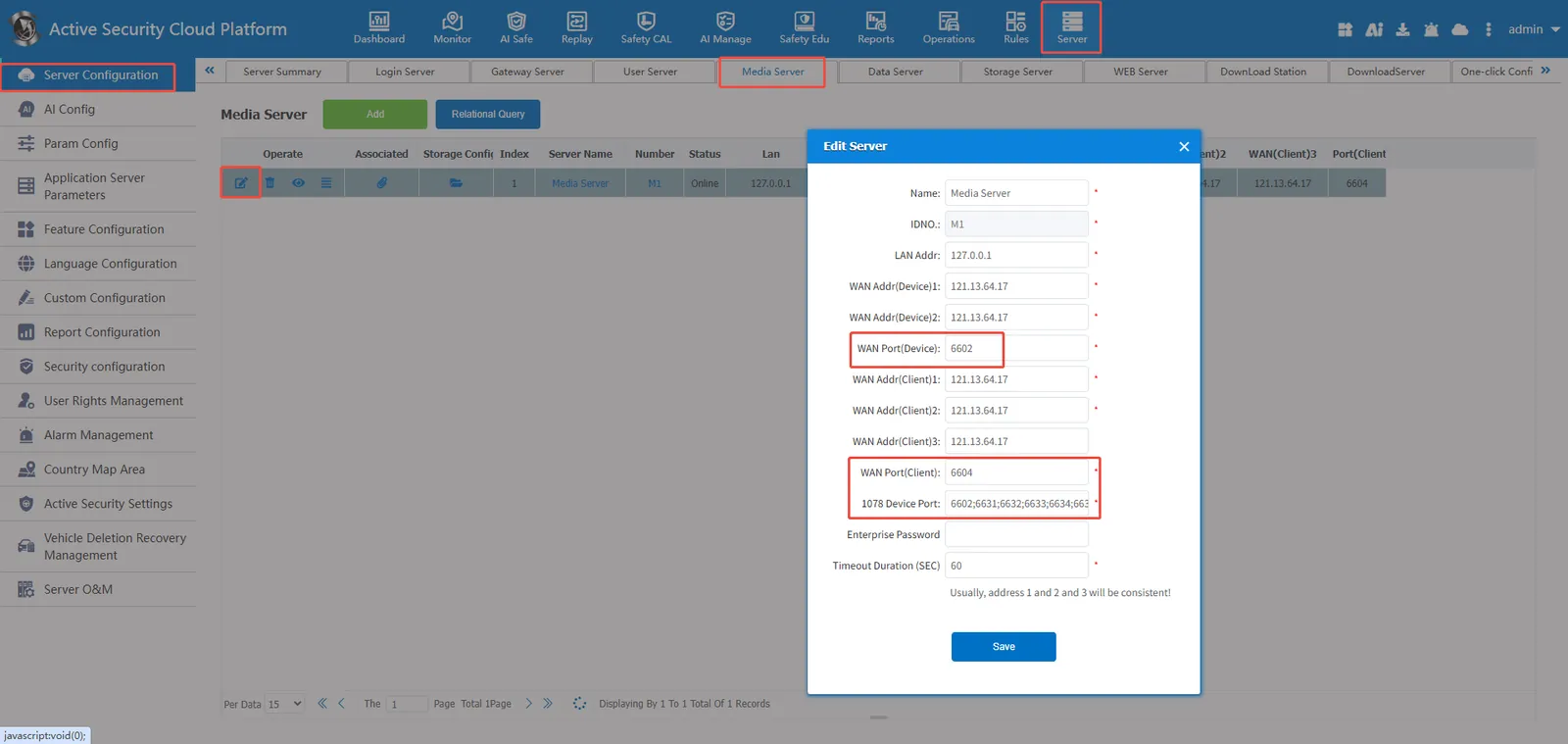

2.3 Media Server
a) Port: 6602, 6604(TCP+UDP), 6617(TCP), 6631-6635(TCP)
b) function: it will be used in any place involving video transmission

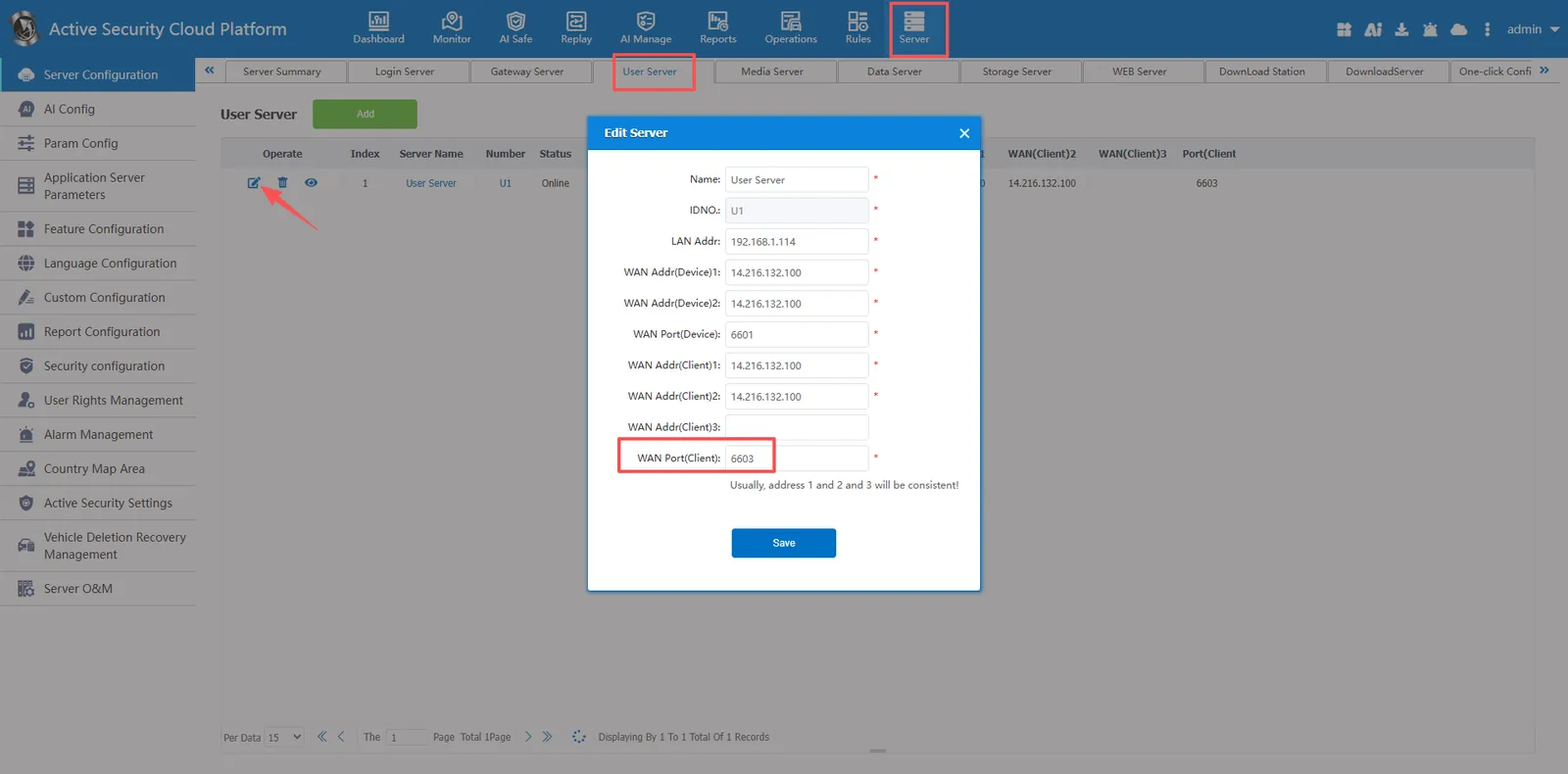

2.4 User Server

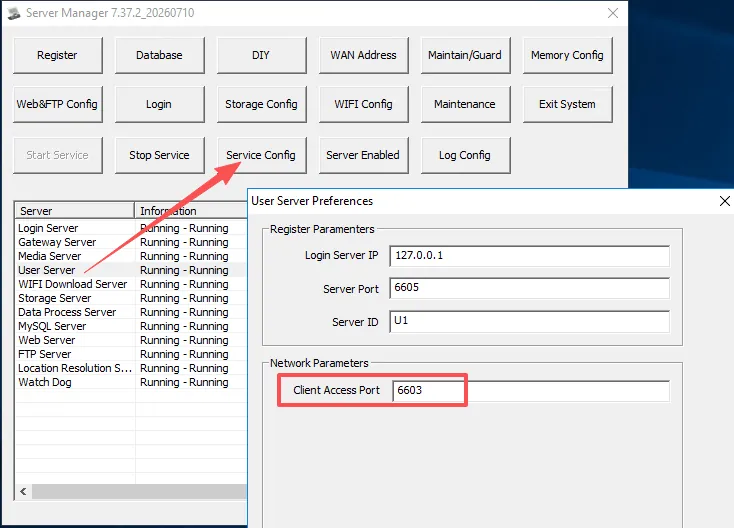

a) Port: 6603(TCP+UDP)
b) Function: verify whether the login information is valid

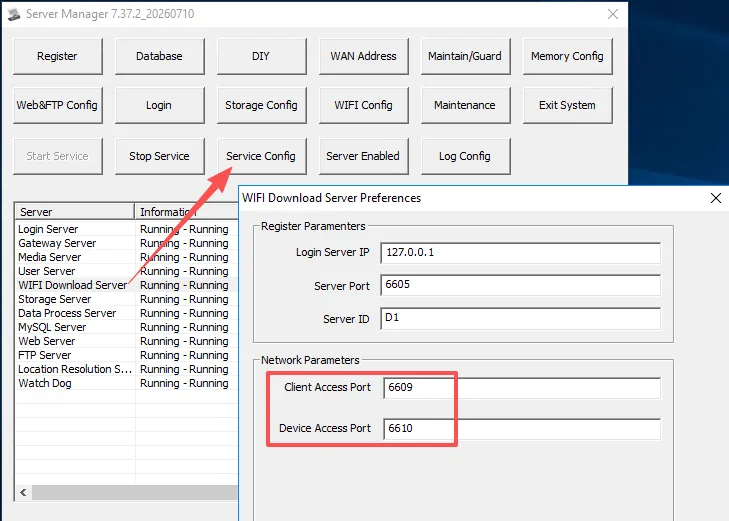

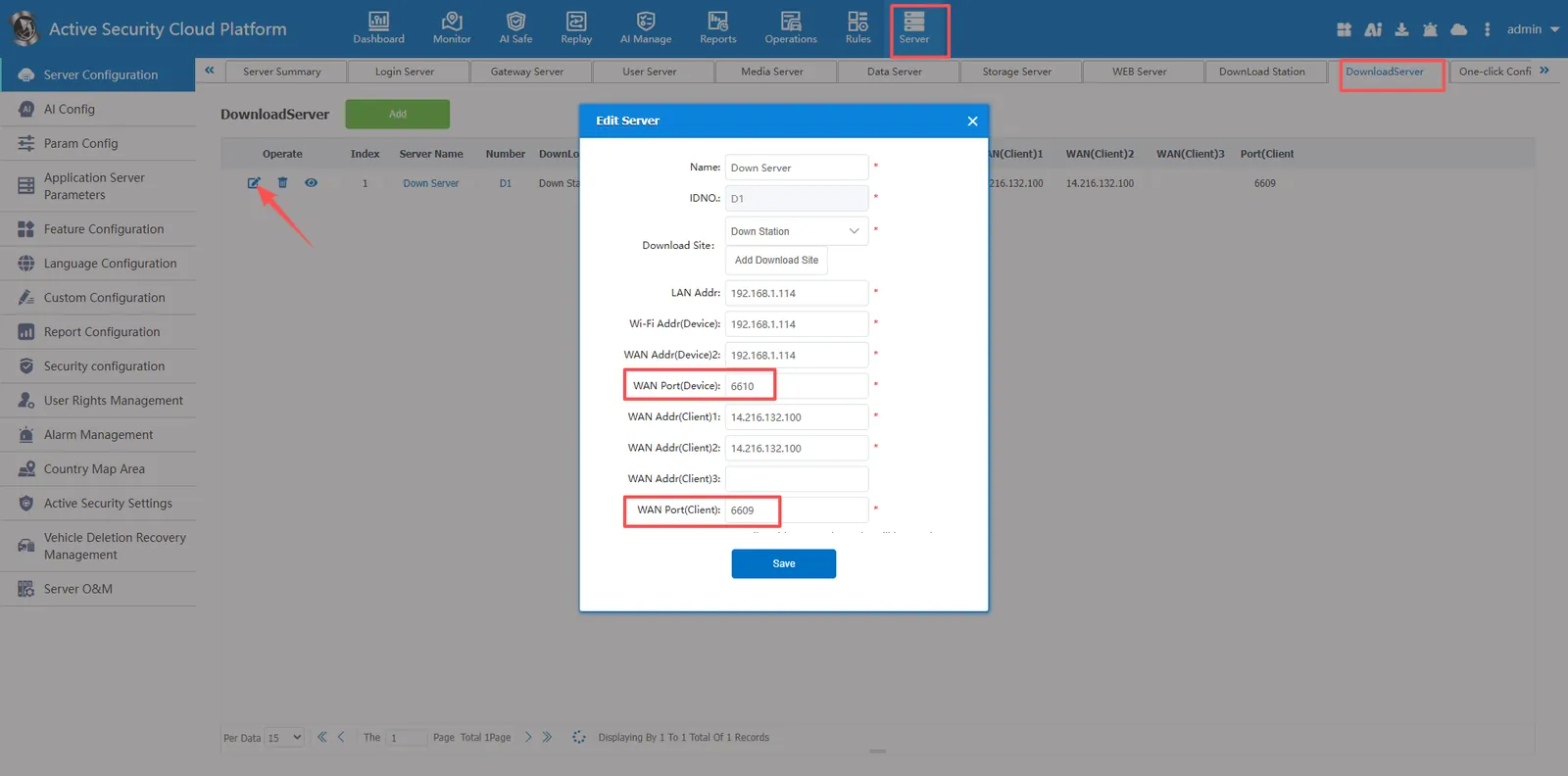

2.5 WIFI Download Server
a) Port: 6609, 6610(TCP+UDP)
b) function: the terminal device uploads the recorded video file to the platform server for retention and viewing by connecting to a designated WIFI site

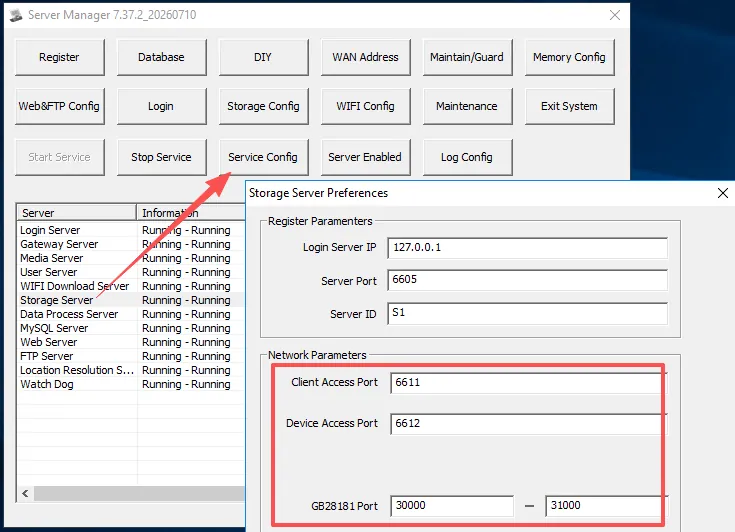

2.6 Storage server

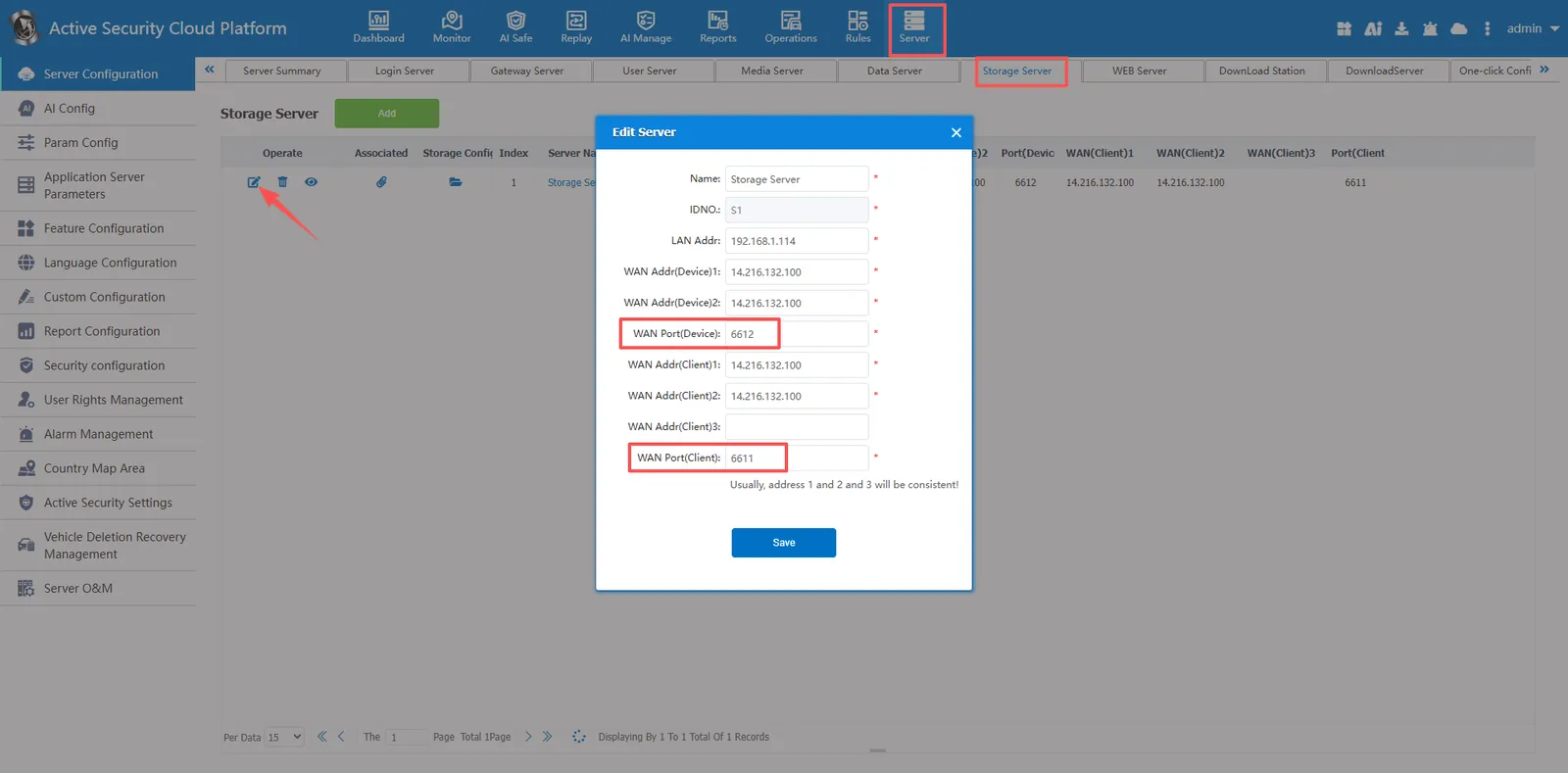

a) Port: 6611, 6612(TCP+UDP)
b) function: it will be used wherever video stream storage is involved

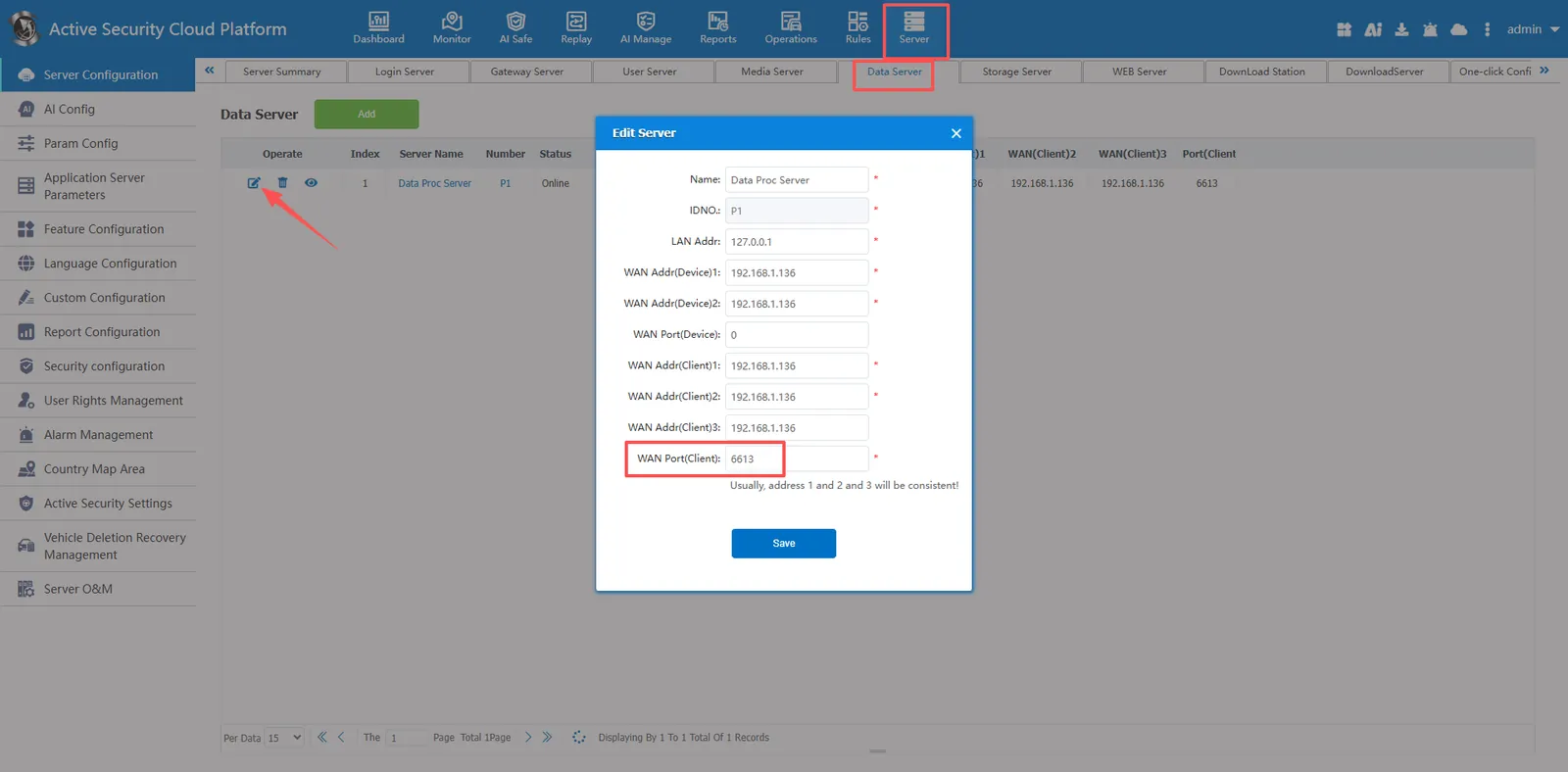

2.7 Data Process Server
a) Port: 6613
b) function: responsible for data forwarding and report data statistics of the 809 protocol plugin
2.8 MySQL Server

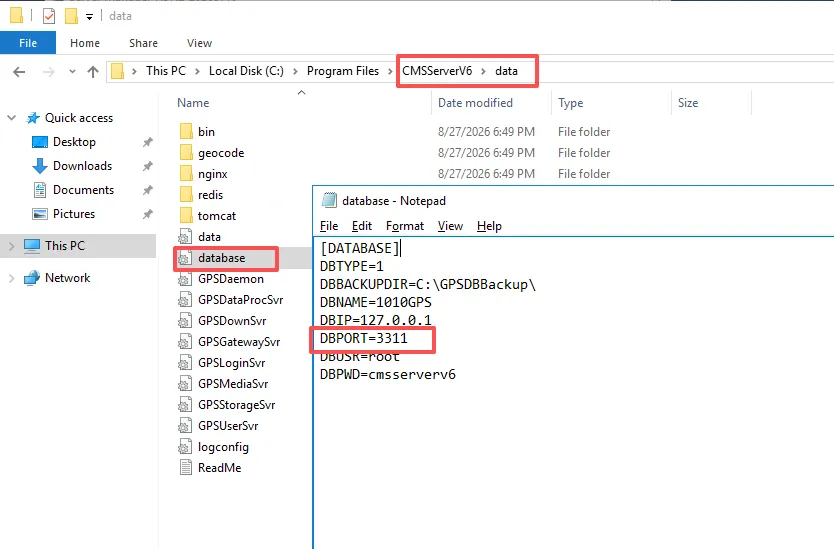

a) port: 3311(user: root, password: cmsserverv6), support custom modification of Mysql Database port)
b) Function: used to store alarm information, GPS information and operation log

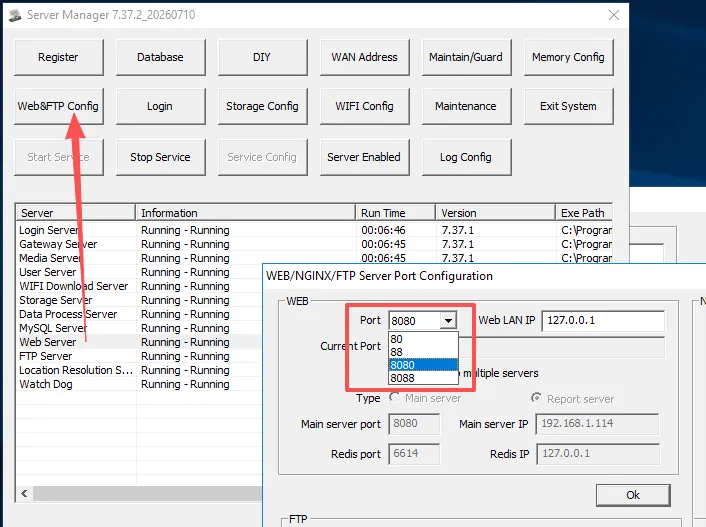

2.9 Web Server
a) port: Currently providing 4 default ports 80/8080/88/8088(TCP), support custom modification of WEB port)
b) Functions: basic data management of vehicle users, server parameter management, report query and API interface

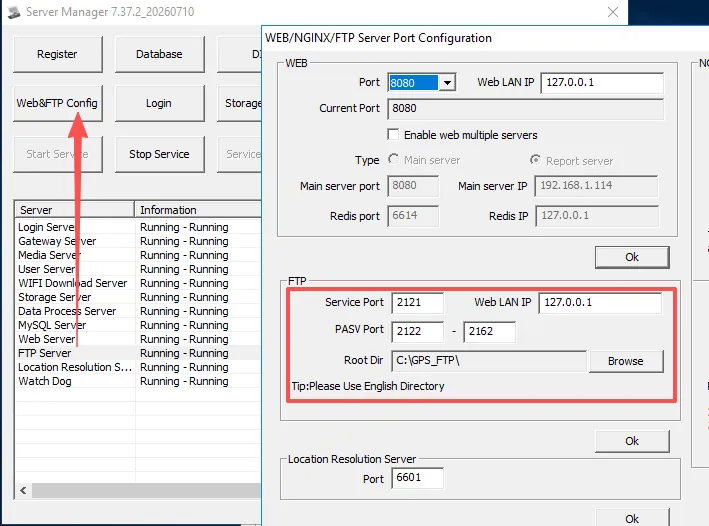

2.10 FTP Server
a) port: 2121-2162(TCP)(user: admin, password: CmsServerV6.)
b) function: it is mainly used for passive file transmission at this stage
c) FTP access address ftp://admin:CmsServerV6.@ip:2121

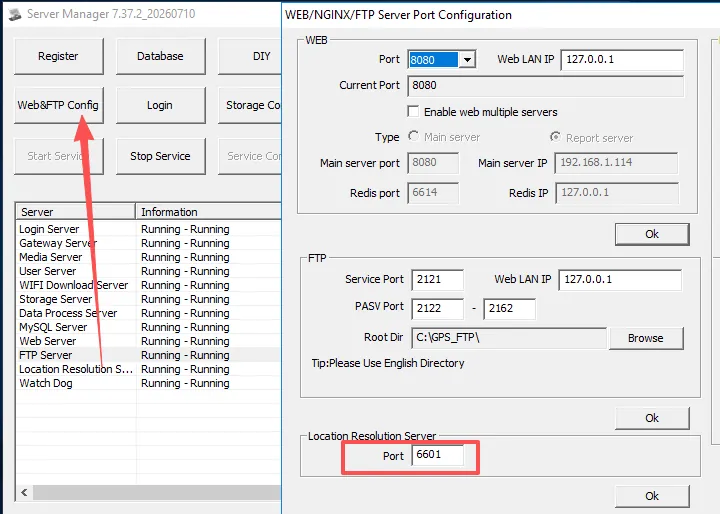

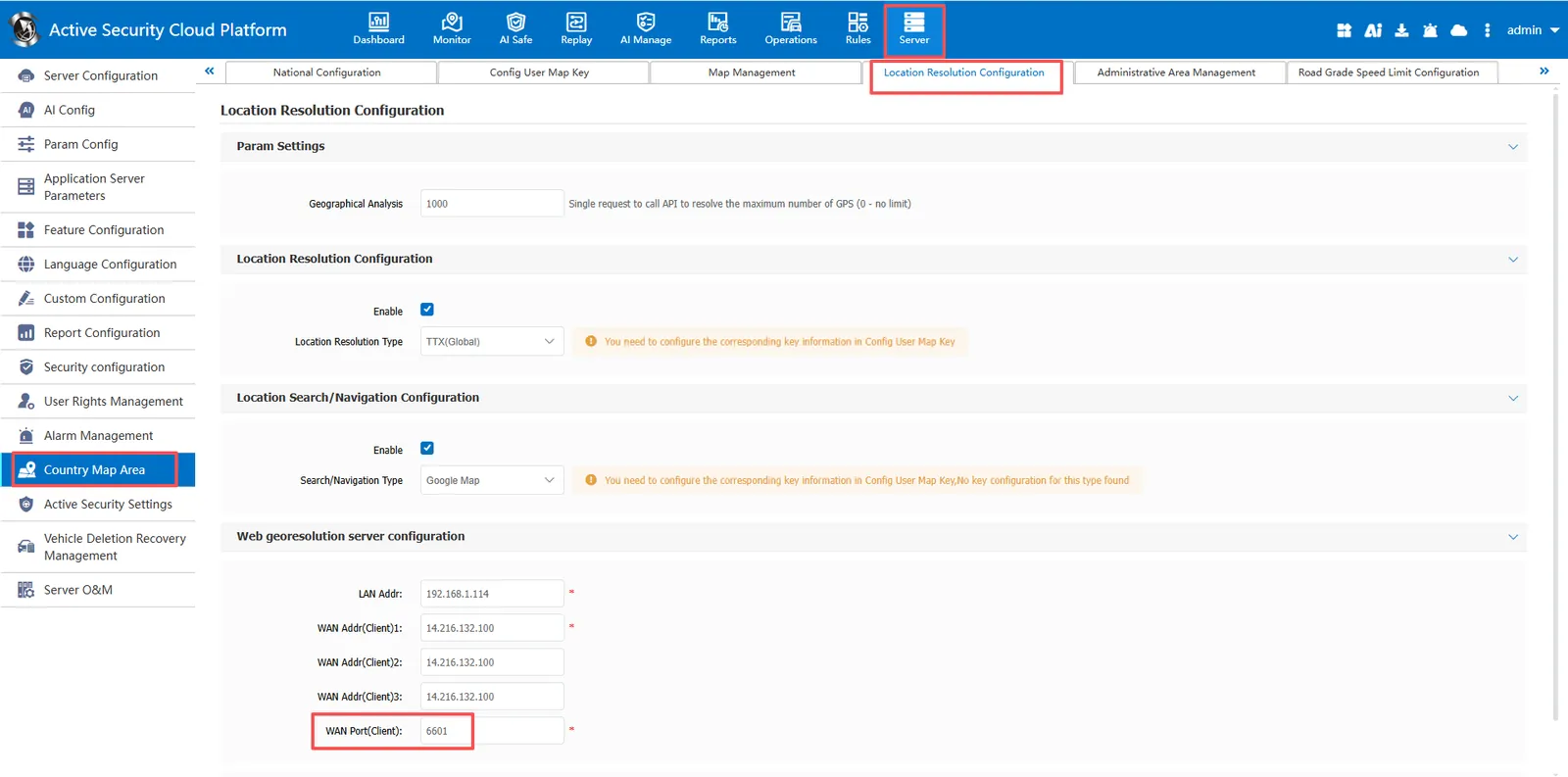

2.11 Location Resolution Server
a) Port: 6601(TCP)
b) Function: provide global geographic location analysis solutions

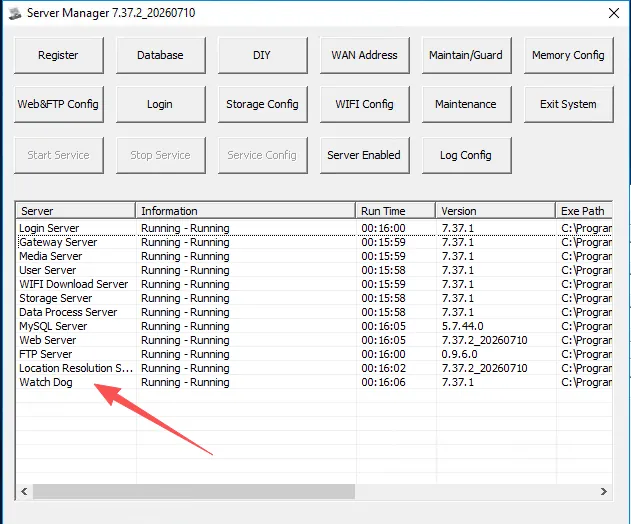

2.12 Watch Dog
a) Function: monitor the running status of other servers, and actively restart when the service is passively shut down
