1 Function Description
1.1, many customers will forward the platform vehicle track information to the superior platform through 809 forwarding.

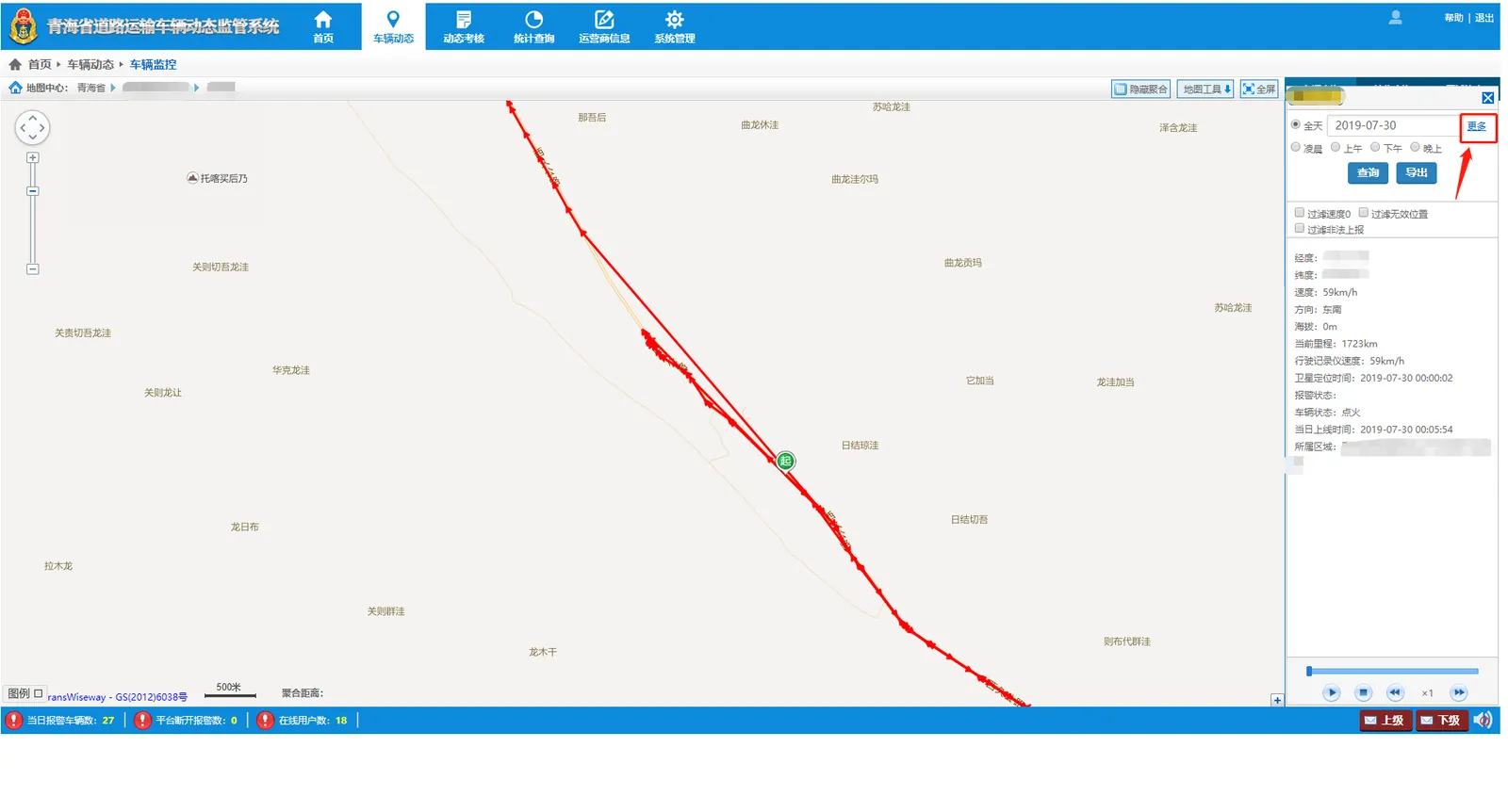

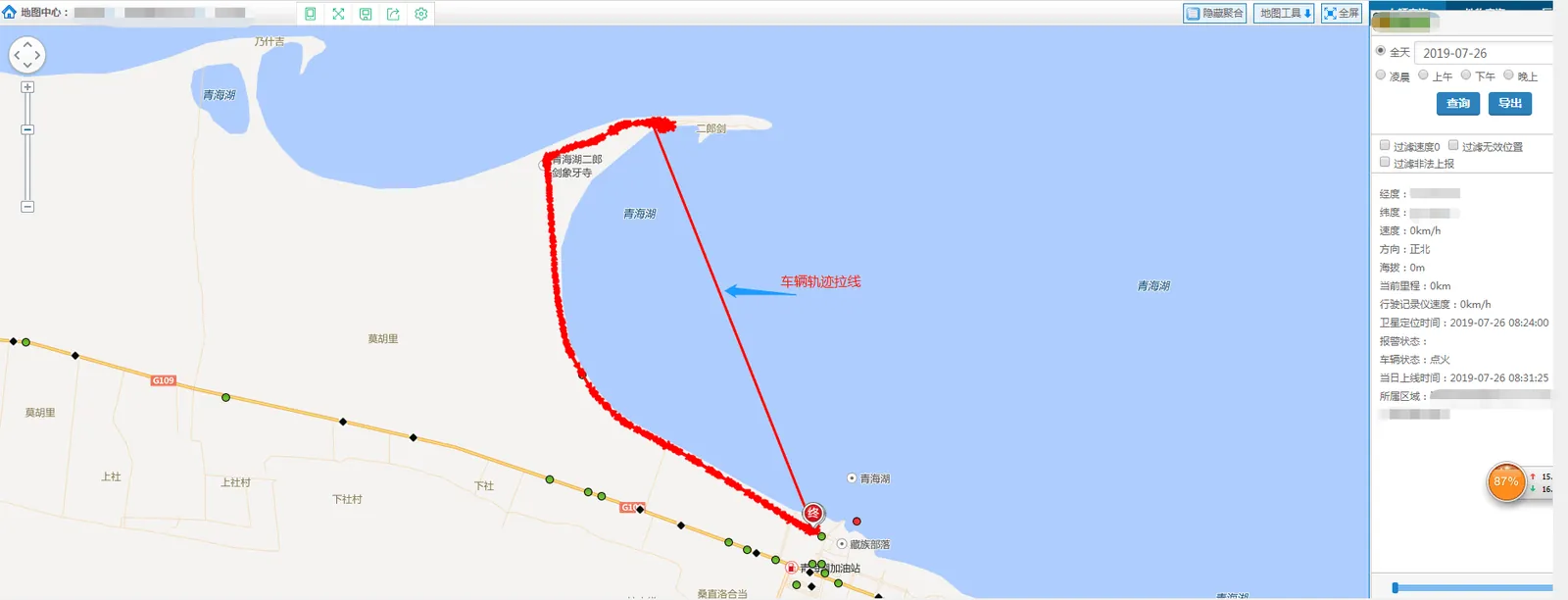

1.2, the trajectory of the vehicle on the superior platform is often a straight line, as shown in the following figure:
1.3 this situation is generally caused by two situations
1.3.1 There is a problem with the track of equipment reporting to V6 platform
1.3.2 There are some superior platforms whose GPS is not reported on V6 platform
1.4, for these two cases, the problem can be found according to the trajectory information of the superior platform. It was finally determined that that was the case.
2 Operating Instructions

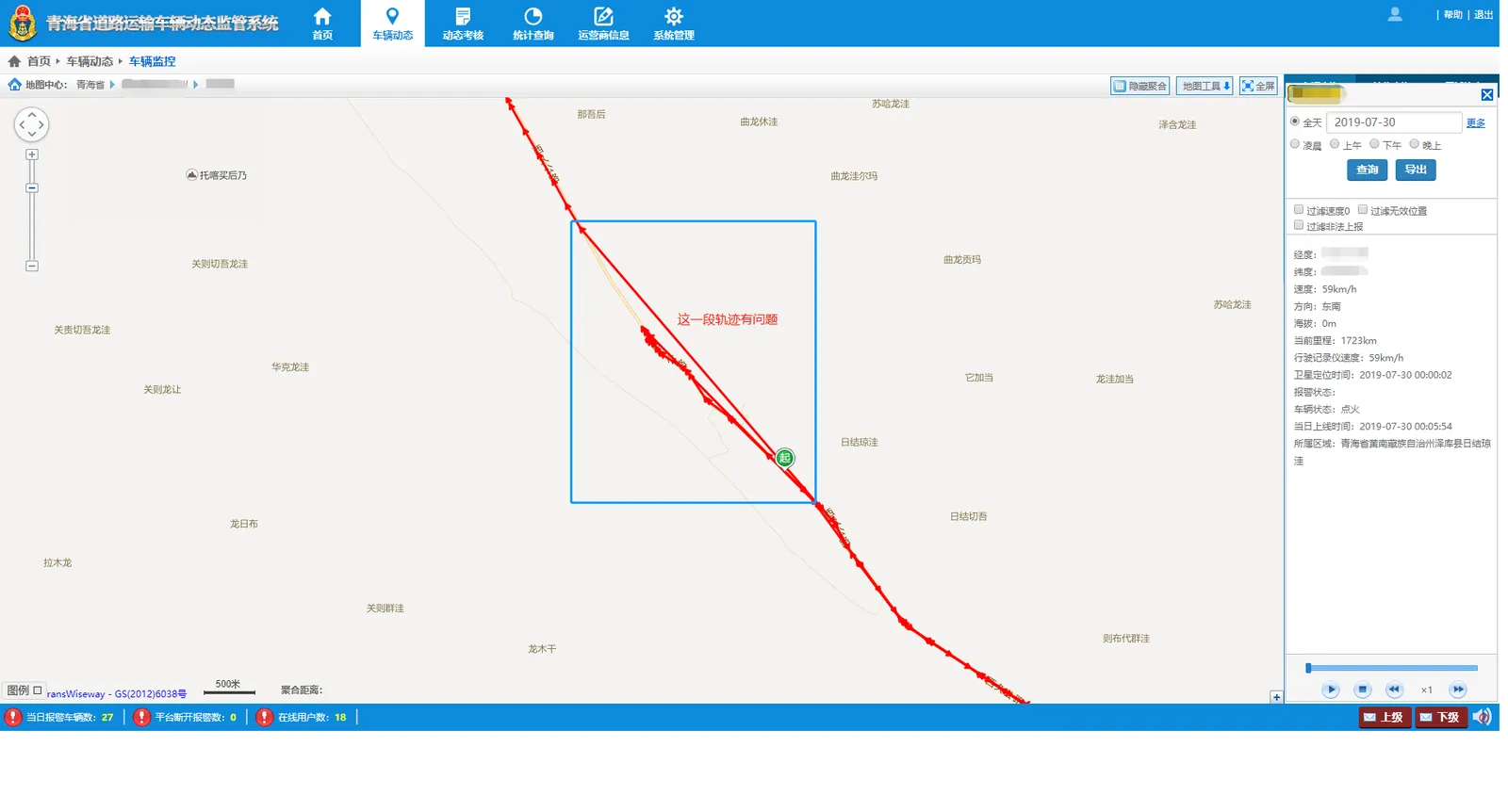

The 2.1 determines whether there is a problem according to the trajectory of the superior platform, as shown in the following figure:

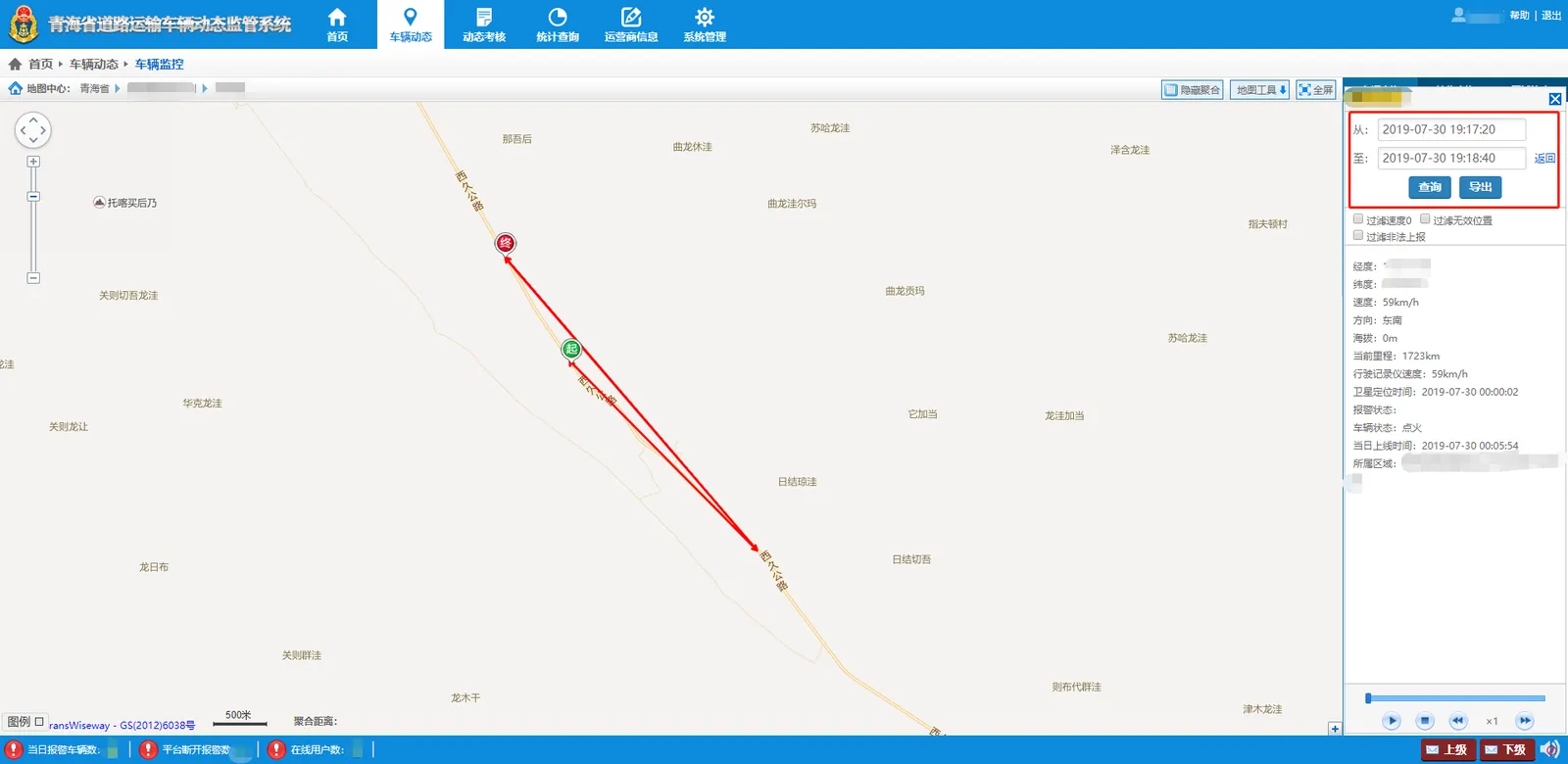

If the 2.2 finds that there is a problem with the vehicle trajectory, you can locate a specific time through the hours and seconds of the superior platform trajectory query, and click "More", as shown in the following figure:

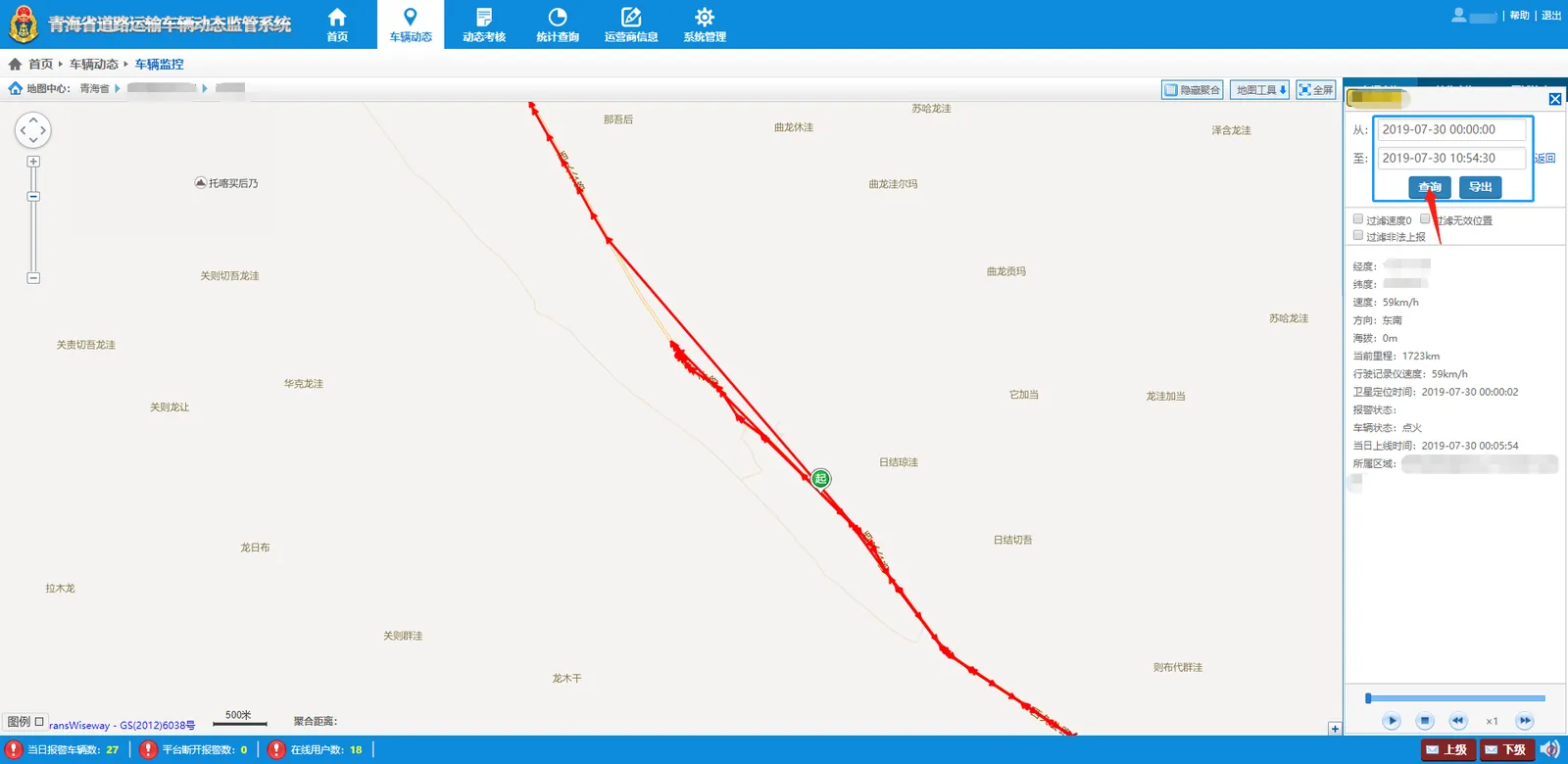

The time period option appears on the 2.3 platform, as shown in the following figure:
2.4 locate the specific time when the problem occurred by gradually searching for small time periods, as shown in the following figure:
Locate the specific time period in which the problem occurred.

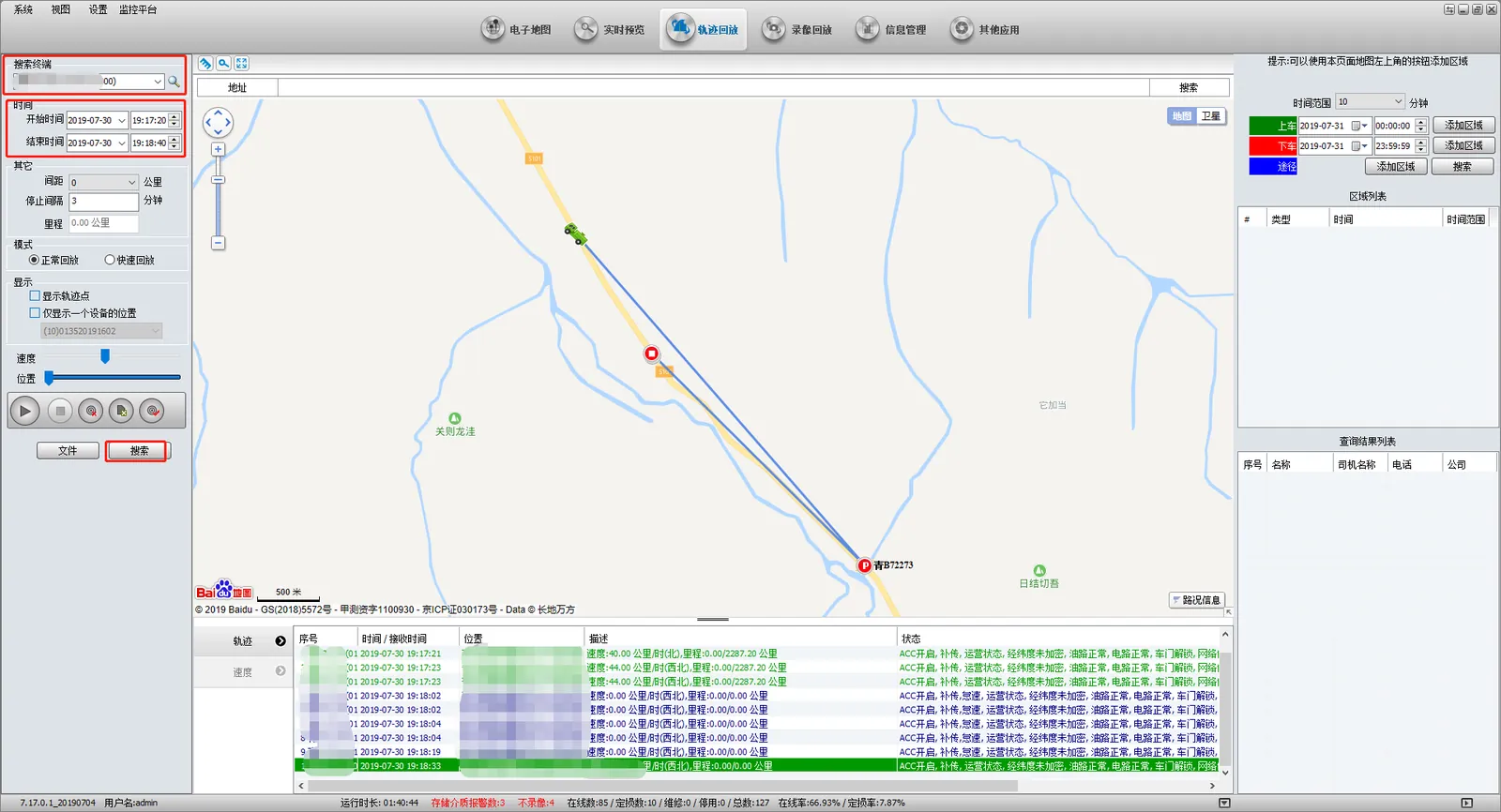

2.5 According to the specific time period located, go to the V6 platform and retrieve track information according to the vehicle, date and time period, as shown in the following figure:
3 Notes
3.1 determine the responsible party of the problem according to the query trace of V6 platform:
When the trajectory of the 3.2 V6 platform is consistent with the trajectory of the superior platform, the cause of this problem lies in the equipment.
The 3.3 v6 platform has a complete track and the superior platform has an abnormal track. The reason for the problem is that the V6 platform did not upload the GPS information of the equipment to the superior platform in time. At this time, the GPS information was manually transmitted and whether the transmission was successful or not was determined through the superior platform track information (the GPS data transmitted will be delayed by one or two minutes, and then whether the transmission was successful or not can be queried)
