1 Function Description
The 1.1 has uploaded attachments for our platform, which cannot be received by the superior.
1.2 decode the picture through log data
2 Operating Instructions

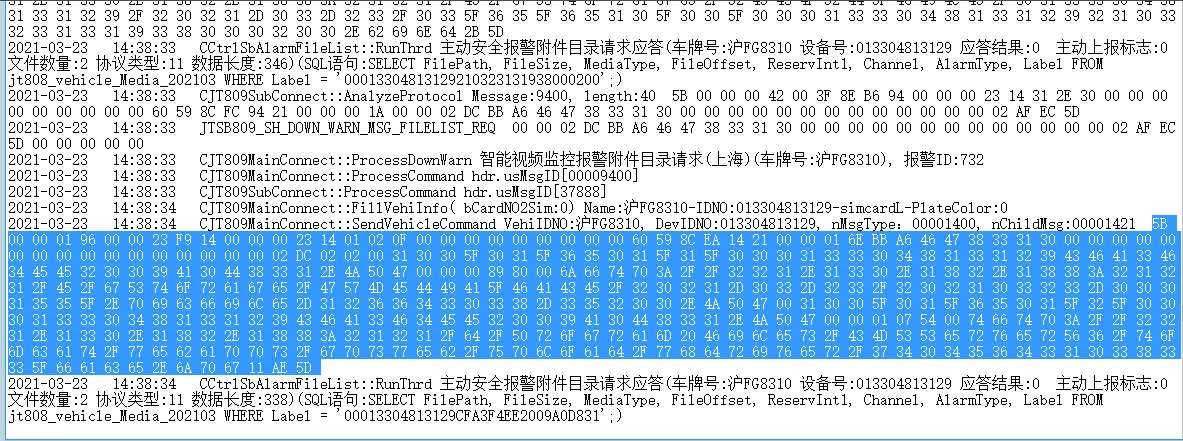

2.1 found attachment upload log

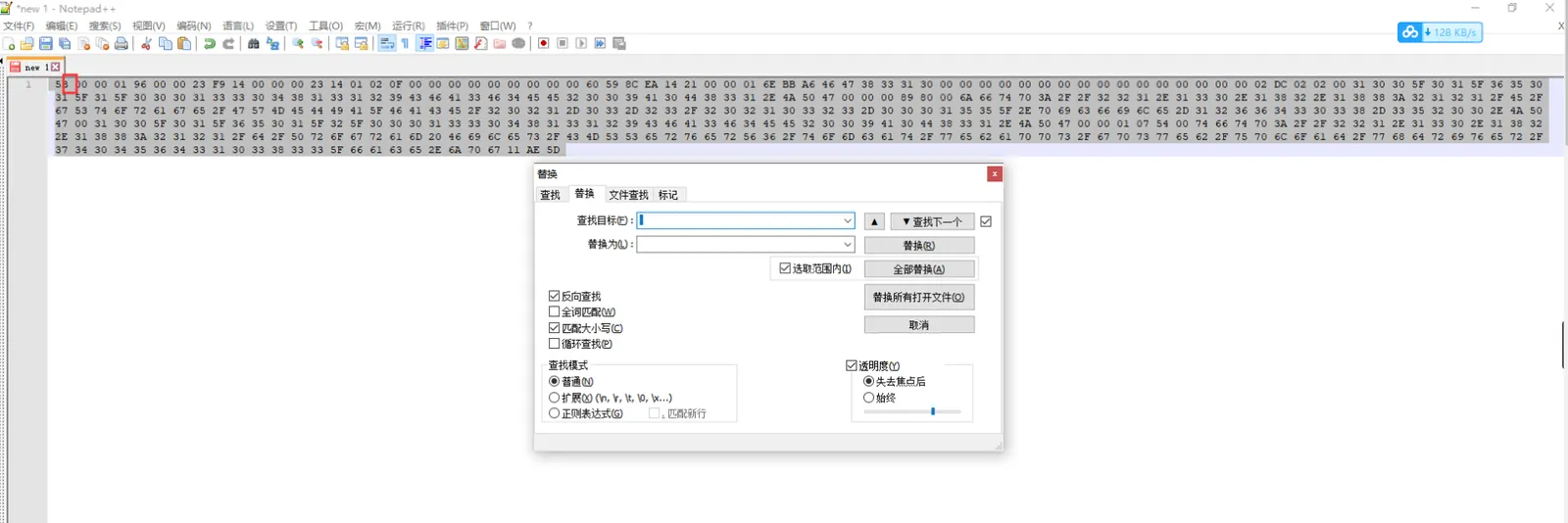

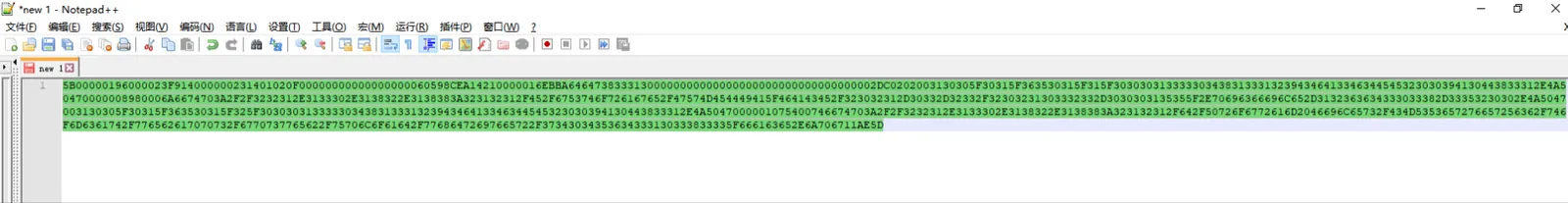

2.2 Use notepad to open, copy all spaces to replace, cancel spaces;

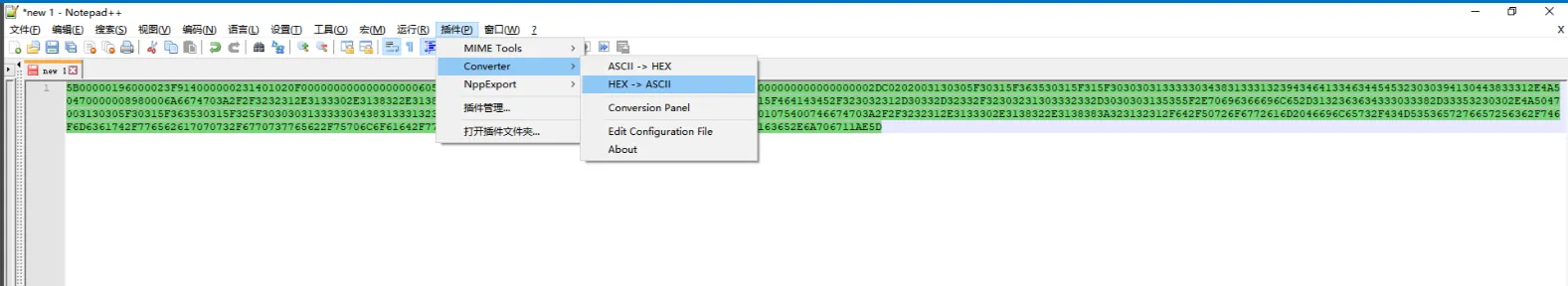

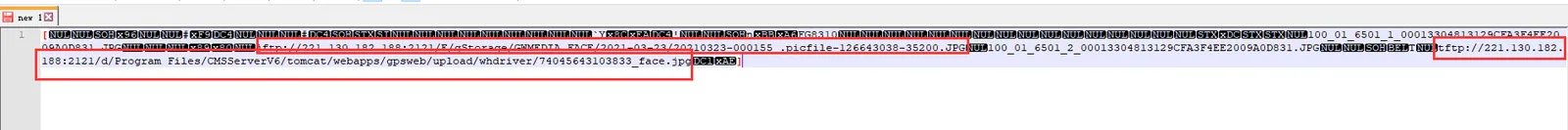

2.3 select plug- in converter- HEX- >ASCII decoding, you can see the ftp picture link;

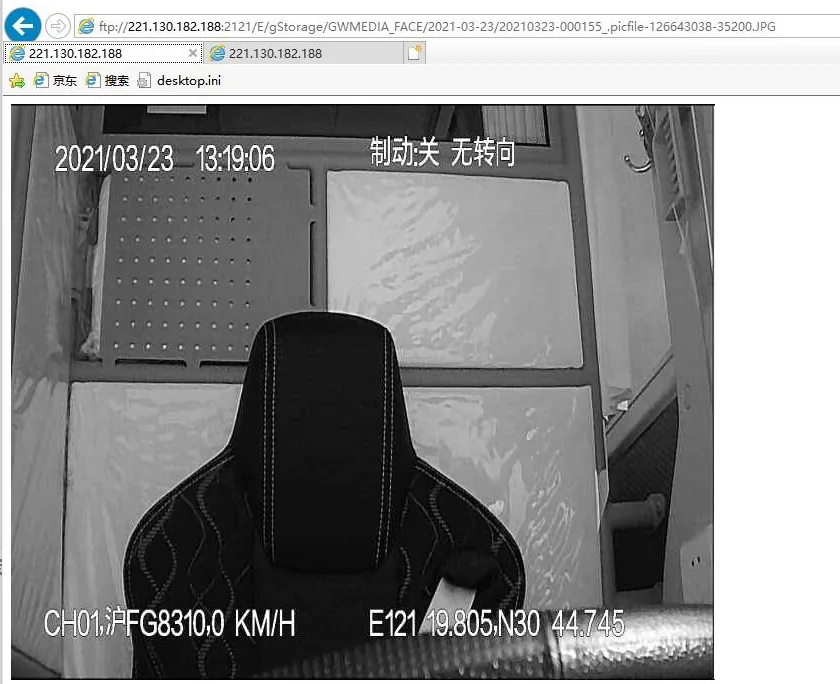

2.4 ftp link can be opened by browser to see the picture, and then compared with the platform alarm attachment;
3 Notes

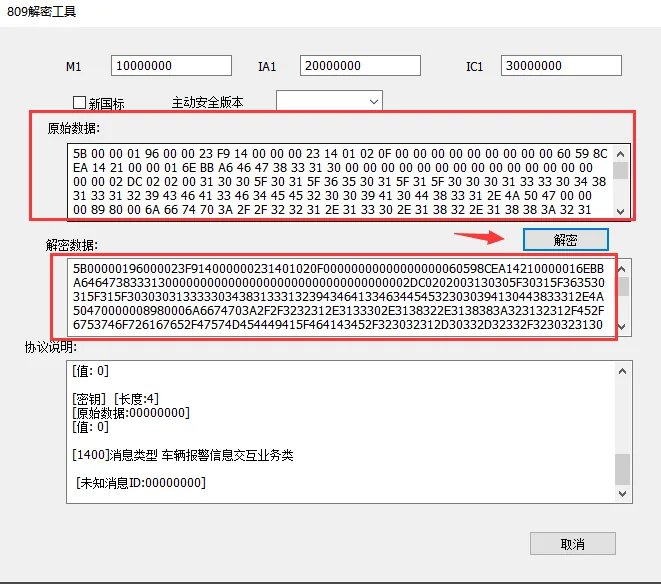

3.1 After 809 log is encrypted, it cannot be decoded with notepad tools. Use 809 tools to decrypt and then decode it.
